Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 591:

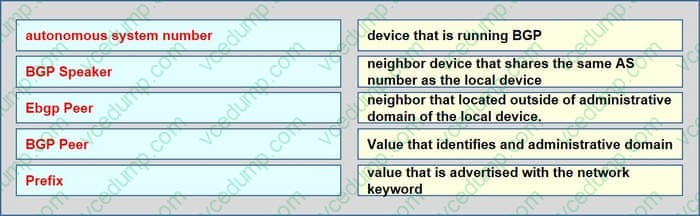

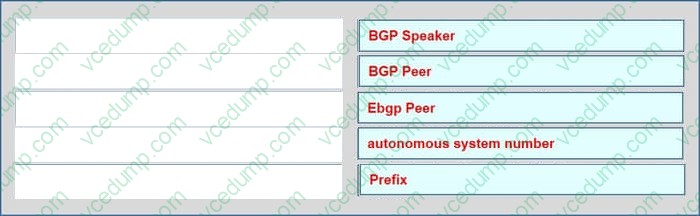

  Drag and drop the BGP components from the left onto the correct descriptions on the right.

  Select and Place:





• Question 592:

  Which protocol is a Cisco proprietary implementation of STP?

  A. CST
  B. RSTP
  C. MSTP
  D. PVST+
  D. PVST+

• Question 593:

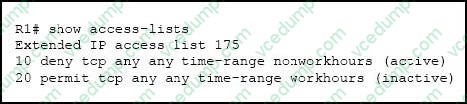

  Refer to the exhibit.



  While you troubleshoot a connectivity issue to a PC behind R1, you enter the show access-lists command to generate this output. Which reason for the problem is most likely true?

  A. The permit all ACL entry on R1 is inactive.
  B. The ACL of R1 is misconfigured.
  C. A deny all ACL entry is currently active on R1.
  D. An implicit deny is causing R1 to block network traffic.
  D. An implicit deny is causing R1 to block network traffic.

• Question 594:

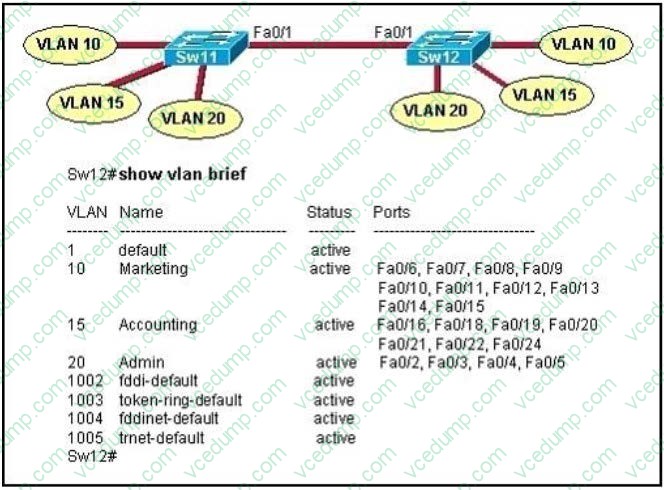

  Refer to the exhibit. A technician has configured the FastEthernet0/1 interface on Sw11 as an access link in VLAN 1. Based on the output from the show vlan brief command issued on Sw12, what will be the result of making this change on Sw11?

  A. Hosts will not be able to communicate between the two switches.
  B. The hosts in all VLANs on the two switches will be able to communicate with each other.
  C. Only the hosts in VLAN 10 and VLAN 15 on the two switches will be able to communicate with each other.
  D. Only the hosts in VLAN 1 on the two switches will be able to communicate with each other.
  A. Hosts will not be able to communicate between the two switches.

  ---

  VLANs are local to each switches database, and VLAN information is not passed between switches. Trunks carry traffic from all VLANs to and from the switch by default but can be configured to carry only specified VLAN traffic. Trunk links are required to pass VLAN information between switches. So Sw 11 port should be trunk not access port. Additionally, there are no ports assigned to VLAN 1.

• Question 595:

  Which three elements must be used when you configure a router interface for VLAN trunking? (Choose three.)

  A. one physical interface for each subinterface
  B. one IP network or subnetwork for each subinterface
  C. a management domain for each subinterface
  D. subinterface encapsulation identifiers that match VLAN tags
  E. one subinterface per VLAN
  F. subinterface numbering that matches VLAN tags
  B. one IP network or subnetwork for each subinterface
  D. subinterface encapsulation identifiers that match VLAN tags
  E. one subinterface per VLAN

• Question 596:

  Which two statements about the spanning-tree bridge ID are true? (Choose two.)

  A. It is composed of a 4-bit bridge priority and a 12-bit system ID extension.
  B. The bridge ID is transmitted in the IP header to elect the root bridge.
  C. The system ID extension is a value between 1 and 4095.
  D. It is composed of an 8-bit bridge priority and a 16-bit system ID extension.
  E. The bridge priority must be incremented in blocks of 4096.
  A. It is composed of a 4-bit bridge priority and a 12-bit system ID extension.
  E. The bridge priority must be incremented in blocks of 4096.

• Question 597:

  Which three statements about DTP are true? (Choose three.)

  A. It is enabled by default.
  B. It is a universal protocol.
  C. It is a proprietary protocol.
  D. It is disabled by default.
  E. It is a Layer 3-based protocol.
  F. It is a Layer 2-based protocol.
  A. It is enabled by default.
  C. It is a proprietary protocol.
  F. It is a Layer 2-based protocol.

• Question 598:

  What can be done to secure the virtual terminal interfaces on a router? (Choose two.)

  A. Administratively shut down the interface.
  B. Physically secure the interface.
  C. Create an access list and apply it to the virtual terminal interfaces with the access-group command.
  D. Configure a virtual terminal password and login process.
  E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.
  D. Configure a virtual terminal password and login process.
  E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.

  ---

  It is a waste to administratively shut down the interface. Moreover, someone can still access the virtual terminal interfaces via other interfaces -> A is not correct.

  We cannot physically secure a virtual interface because it is "virtual" -> B is not correct.

  To apply an access list to a virtual terminal interface we must use the "access-class" command.

  The "access-group" command is only used to apply an access list to a physical interface -> C is not correct; E is correct.

  The simplest way to secure the virtual terminal interface is to configure a username and password to prevent unauthorized login -> D is correct.

• Question 599:

  To troubleshoot a network connection, you execute the ping utility on a route and it returns the response code Q. Which symptom is a probable root cause?

  A. The ICMP time was exceed.
  B. The destination is unreachable.
  C. The connection timed out awaiting the reply.
  D. The destination is receiving too much traffic.
  D. The destination is receiving too much traffic.

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/ios-nx-os-software/ios-software-releases-121-mainline/12778-ping-traceroute.html

• Question 600:

  For which two reasons might you choose chassis aggregation instead of stacking switches? (Choose two.)

  A. to avoid the use of a centralized configuration manager
  B. to avoid relying solely on Ethernet interfaces
  C. to allow hot-swapping modules
  D. to increase the number of devices in use
  E. to increase the maximum port count
  C. to allow hot-swapping modules
  D. to increase the number of devices in use
