Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 571:

  Which purpose of the network command in OSPF configuration mode is true?

  A. It defines a wildcard mask to identify the size of the network.
  B. It defines the area ID.
  C. It defines the network by its classful entry.
  D. It defines which networks are used for virtual links.
  A. It defines a wildcard mask to identify the size of the network.

• Question 572:

  What IP SLA ICMP Echo measures?

  A. Packet loss
  B. Congestion
  C. Hop-by-hop "something"
  A. Packet loss

• Question 573:

  Which form of NAT maps multiple private IP addresses to a single registered IP address by using different ports?

  A. static NAT
  B. dynamic NAT
  C. overloading
  D. overlapping
  E. port loading
  C. overloading

• Question 574:

  Which three features are supported when you use TACACS+ for device management? (Choose three.)

  A. It can restrict the commands that individual users are allowed to execute.
  B. It can connect disparate networks.
  C. It can create network access clients.
  D. It can provide additional challenges beyond the username and password.
  E. It supports UNIX server functionality.
  F. It supports user notifications.
  A. It can restrict the commands that individual users are allowed to execute.
  D. It can provide additional challenges beyond the username and password.
  F. It supports user notifications.

• Question 575:

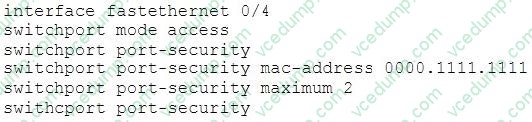

  The following configuration is applied to a Layer 2 Switch:



  What is the result of the above configuration being applied to the switch?

  A. A host with a mac address of 0000.1111.1111 and up to two other hosts can connect to FastEthernet 0/4 simultaneously
  B. A host with a mac address of 0000.1111.1111 and one other host can connect to Fast Ethernet 0/4 simultaneously
  C. Violating addresses are dropped and no record of the violation is kept
  D. The switch can send an SNMP message to the network management station
  E. The port is effectively shutdown
  B. A host with a mac address of 0000.1111.1111 and one other host can connect to Fast Ethernet 0/4 simultaneously
  D. The switch can send an SNMP message to the network management station

  ---

  Reference: http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/12.2/20ewa/configuration/guide/port_sec.html

• Question 576:

  What are two drawbacks of implementing a link-state routing protocol? (Choose two.)

  A. the sequencing and acknowledgment of link-state packets
  B. the high volume of link-state advertisements in a converged network
  C. the requirement for a hierarchical IP addressing scheme for optimal functionality
  D. the high demand on router resources to run the link-state routing algorithm
  E. the large size of the topology table listing all advertised routes in the converged network
  C. the requirement for a hierarchical IP addressing scheme for optimal functionality
  D. the high demand on router resources to run the link-state routing algorithm

  ---

  Link State routing protocols, such as OSPF and IS-IS, converge more quickly than their distance vector routing protocols such as RIPv1, RIPv2, EIGRP and so on, through the use of flooding and triggered updates. In link state protocols, changes are flooded immediately and computed in parallel. Triggered updates improve convergence time by requiring routers to send an update message immediately upon learning of a route change. These updates are triggered by some event, such as a new link becoming available or an existing link failing. The main drawbacks to link state routing protocols are the amount of CPU overhead involved in calculating route changes and memory resources that are required to store neighbor tables, route tables and a complete topology table.

  Reference: http://www.ciscopress.com/articles/article.asp?p=24090andseqNum=4

• Question 577:

  Syslog was configured with a level 3 trap. Which 3 types of logs would be generated (Choose three.)

  A. Emergencies
  B. Alerts
  C. Critical
  D. Errors
  E. Warnings
  A. Emergencies
  B. Alerts
  C. Critical

• Question 578:

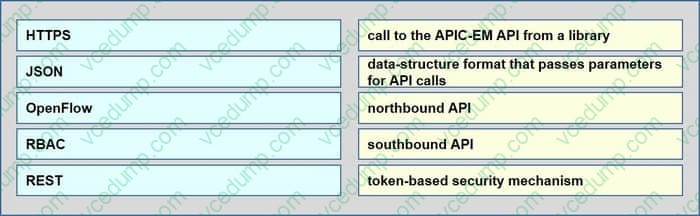

  Drag and drop the network programmability features from the left onto the correct description on the right.

  Select and Place:





• Question 579:

  Which function is performed by a TACACS+ server?

  A. It hosts an access list that permits or denies IP traffic to the control plane of a device.
  B. It provides external AAA verification.
  C. It filters usernames and passwords for Telnet and SSH.
  D. It serves as a database for line passwords.
  B. It provides external AAA verification.

• Question 580:

  Which three statements about Syslog utilization are true? (Choose three.)

  A. Utilizing Syslog improves network performance.
  B. The Syslog server automatically notifies the network administrator of network problems.
  C. A Syslog server provides the storage space necessary to store log files without using router disk space.
  D. There are more Syslog messages available within Cisco IOS than there are comparable SNMP trap messages.
  E. Enabling Syslog on a router automatically enables NTP for accurate time stamping.
  F. A Syslog server helps in aggregation of logs and alerts.
  C. A Syslog server provides the storage space necessary to store log files without using router disk space.
  D. There are more Syslog messages available within Cisco IOS than there are comparable SNMP trap messages.
  F. A Syslog server helps in aggregation of logs and alerts.
