Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 511:

  In which LACP channel mode can the port initiate negotiations with other switch ports?

  A. auto
  B. active
  C. desirable
  D. passive
  B. active

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide/EtherChannel.html#11556

• Question 512:

  DRAG DROP

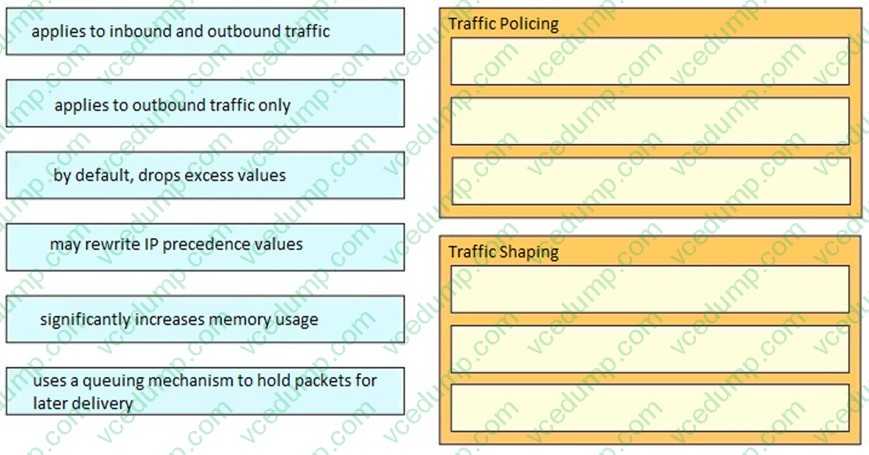

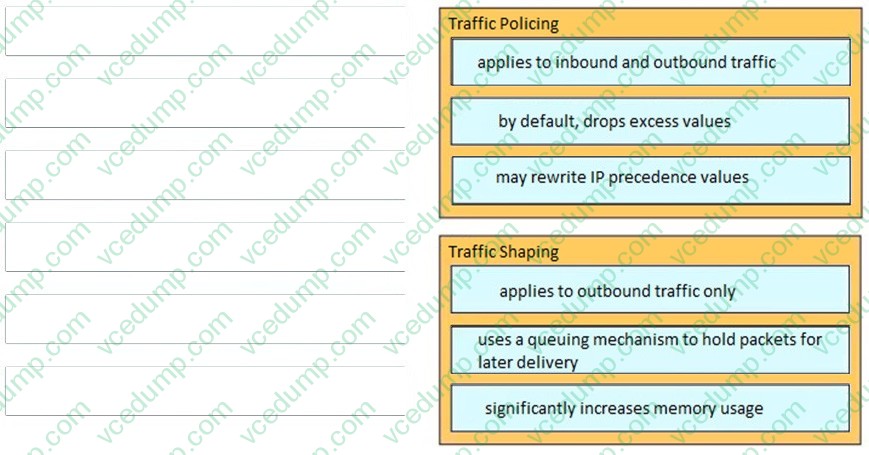

  Drag and drop the descriptions of traffic shaping and policing from the left onto the correct categories on the right.

  Select and Place:





• Question 513:

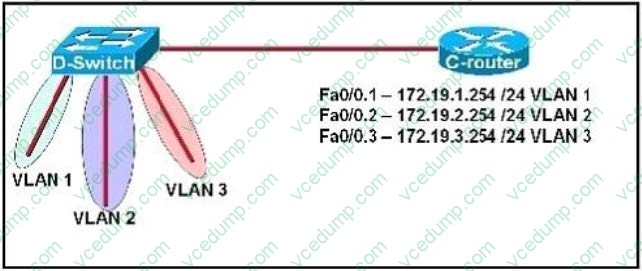

  Refer to the exhibit. C-router is to be used as a "router-on-a-stick" to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs have been configured with the appropriate default gateway.

  What is true about this configuration?



  A. These commands need to be added to the configuration: C-router(config)# router eigrp 123 C-router(config-router)# network 172.19.0.0
  B. These commands need to be added to the configuration: C-router(config)# router ospf 1 C-router(config-router)# network 172.19.0.0 0.0.3.255 area 0
  C. These commands need to be added to the configuration: C-router(config)# router rip C-router(config-router)# network 172.19.0.0
  D. No further routing configuration is required.
  D. No further routing configuration is required.

  ---

  Reference: http://www.cisco.com/en/US/tech/tk389/tk815/technologies_configuration_example09186a00800949fd.shtml https://learningnetwork.cisco.com/servlet/JiveServlet/download/5669-2461/Router%20on%20a%20Stick.pdf.

• Question 514:

  Which device might be installed at a branch office to enable and manage an IPsec site-to-site VPN?

  A. Cisco IOS IPsec/SSL VPN Client
  B. Cisco Adaptive Security Appliance
  C. Cisco VPN Client
  D. ISDN terminal adapter
  B. Cisco Adaptive Security Appliance

• Question 515:

  A network administrator is configuring ACLs on a Cisco router, to allow traffic from hosts on networks 192.168.146.0, 192.168.147.0, 192.168.148.0, and 192.168.149.0 only.

  Which two ACL statements, when combined, are the best for accomplishing this task? (Choose two.)

  A. access-list 10 permit ip 192.168.146.0 0.0.1.255
  B. access-list 10 permit ip 192.168.147.0 0.0.255.255
  C. access-list 10 permit ip 192.168.148.0 0.0.1.255
  D. access-list 10 permit ip 192.168.149.0 0.0.255.255
  E. access-list 10 permit ip 192.168.146.0 0.0.0.255
  F. access-list 10 permit ip 192.168.146.0 255.255.255.0
  A. access-list 10 permit ip 192.168.146.0 0.0.1.255
  C. access-list 10 permit ip 192.168.148.0 0.0.1.255

• Question 516:

  Which two options are primary responsibilities of the APIC-EM controller? (Choose two)

  A. It automates network actions between different device types.
  B. It provides robust asset management.
  C. It tracks license usage and Cisco IOS versions.
  D. It automates network actions between legacy equipment.
  E. It makes network functions programmable.
  A. It automates network actions between different device types.
  E. It makes network functions programmable.

• Question 517:

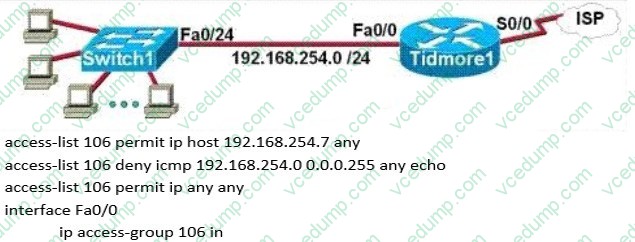

  Refer to the exhibit. A network technician enters the following line into the router. Tidmore1(config)# access-list 106 deny tcp 192.168.254.0 0.0.0.255 any eq www What is the effect of this configuration?



  A. The change has no effect on the packets being filtered.
  B. All traffic from the 192.168.254.0 LAN to the Internet is permitted.
  C. Web pages from the Internet cannot be accessed by hosts in the 192.168.254.0 LAN.
  D. No hosts in the 192.168.254.0 LAN except 192.168.254.7 can access web pages from the Internet.
  A. The change has no effect on the packets being filtered.

• Question 518:

  Which command must you enter to enable OSPFV2 in an IPV4 network?

  A. ip ospf hello-interval seconds
  B. router ospfv2 process-id
  C. router ospf value
  D. router ospf process-id
  D. router ospf process-id

• Question 519:

  CORRECT TEXT

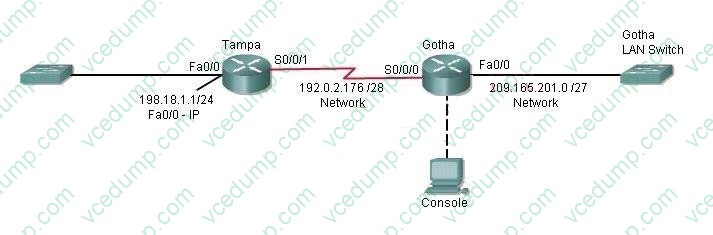

  To configure the router(Gotha) click on the console host icon that is connected to a router by a serial console cable(shown in the diagram as a dashed black line).

  You can click on the buttons below to view the diffierent windows.

  Each of the windows can be minimized by clicking on the [-]. You can also reposition a window by dragging it by the title bar.

  The "Tab" key and most commands that use the "Control" or "Escape" keys are not supported and are not necessary to complete this simulation. The help command does not display all commands of the help system.

  Central Floria Widgets recently installed a new router in their Gotha office. Complete the network installation by performing the initial router configurations and configuring RIPv2 routing using the router command line intgerface(CLI) on the Gotha router.

  Configure the router per the following requirements:

  Name of the router is Gotha Enable-secret password is mi222ke The password to access user EXEC mode using the console is G8tors1 The password to allow telnet access to the router is dun63lapIPv4 addresses must be configured as follows:



  Ethernet network 209.165.201.0/27 - router has fourth assignable host address in subnet.



  Serial network is 192.0.2.176/28 - router has last assignable host address in the subnet.

  Interfaces should be enabled.

  Routing protocol is RIPv2



  Attention:

  In practical examinations, please note the following, the actual information will prevail.

  1.

  Name of the router is xxx

  2.

  Enable secret password is xxx

  3.

  Password In access user EXEC mode using the console is xxx

  4.

  The password to allow telnet access to the router is xxx

  5.

  IP information

  Correct Answer. Check the answer in explanation.
  Check the answer in explanation.

  ---

  Answer: Router>enable Router#config terminal Router(config)#hostname Gotha Gotha(config)#enable secret mi222ke Gotha(config)#line console 0 Gotha(config-line)#password G8tors1 Gotha(config-line)#exit Gotha(config)#line vty 0 4 Gotha(config-line)#password dun63lap Gotha(config-line)#login Gotha(config-line)#exit Gotha(config)#interface fa0/0 Gotha(config-if)#no shutdown Gotha(config-if)#ip address 209.165.201.4 255.255.255.224 Gotha(config)#interface s0/0/0 Gotha(config-if)#ip address 192.0.2.190 255.255.255.240 Gotha(config-if)#no shutdown Gotha(config-if)#exit Gotha(config)#router rip Gotha(config-router)#version 2 Gotha(config-router)#network 209.165.201.0 Gotha(config-router)#network 192.0.2.176 Gotha(config-router)#end Gotha#copy running-config startup-config

• Question 520:

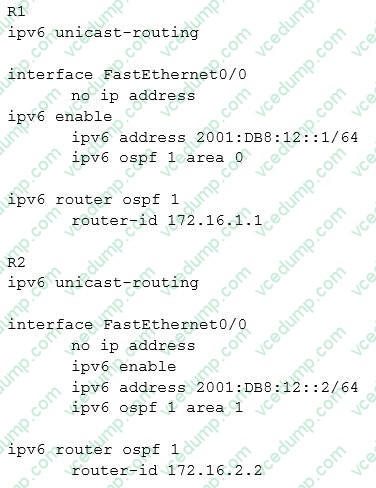

  Refer to the exhibit. After you apply the give configurations to R1 and R2 you notice that OSPFv3 fails to start.



  Which reason for the problem is most likely true?

  A. The area numbers on R1 and R2 are mismatched
  B. The IPv6 network addresses on R1 and R2 are mismatched
  C. The autonomous system numbers on R1 and R2 are mismatched
  D. The router ids on R1 and R2 are mismatched
  A. The area numbers on R1 and R2 are mismatched
