Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 531:

  What are the Popular destinations for syslog messages to be saved? (Choose three.)

  A. Flash
  B. The logging buffer .RAM
  C. The console terminal
  D. Other terminals
  E. Syslog server
  B. The logging buffer .RAM
  C. The console terminal
  E. Syslog server

• Question 532:

  Which two commands correctly verify whether port security has been configured on port FastEthernet 0/12 on a switch? (Choose two.)

  A. SW1#show port-secure interface FastEthernet 0/12
  B. SW1#show switchport port-secure interface FastEthernet 0/12
  C. SW1#show running-config
  D. SW1#show port-security interface FastEthernet 0/12
  E. SW1#show switchport port-security interface FastEthernet 0/12
  C. SW1#show running-config
  D. SW1#show port-security interface FastEthernet 0/12

• Question 533:

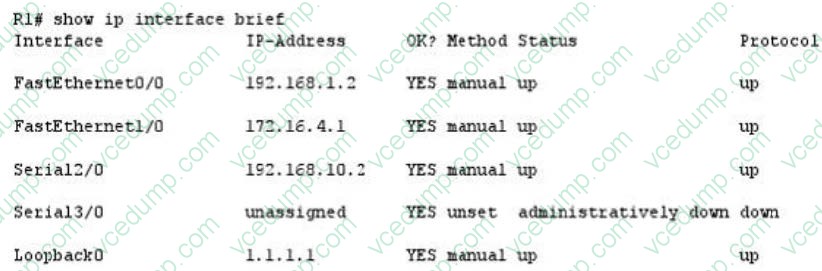

  Refer to the exhibit. If the router R1 returns the given output and has not had its router ID set manually, what address will EIGRP use as its router ID?



  A. 192.168.1.2
  B. 172.16.4.1
  C. 192.168.10.2
  D. 1.1.1.1
  D. 1.1.1.1

  ---

  The router ID is selected according to the following rules: manual configuration highest up/up loopback highest up/up physical interface

• Question 534:

  For which type of connection is broadband PPPoE most appropriate?

  A. satellite
  B. DSL
  C. GRE tunnel
  D. PPTP
  B. DSL

• Question 535:

  Which purpose of the network command in the BGP configuration of a router is true?

  A. It advertises a valid network as local to the autonomous system of a router
  B. It enables router advertisement in the BGP routing process on the router
  C. It indicates whether a neighbor supports route refresh
  D. It advertisers any route in BGP with no additional configuration
  B. It enables router advertisement in the BGP routing process on the router

• Question 536:

  Which component of the Cisco SDN solution serves as the centralized management system?

  A. Cisco OpenDaylight
  B. Cisco ACI
  C. Cisco APIC
  D. Cisco IWAN
  C. Cisco APIC

  ---

  ACI is the name of Cisco's SDN solution. The component of ACI that is the centralized controller (manager) is Cisco APIC.

• Question 537:

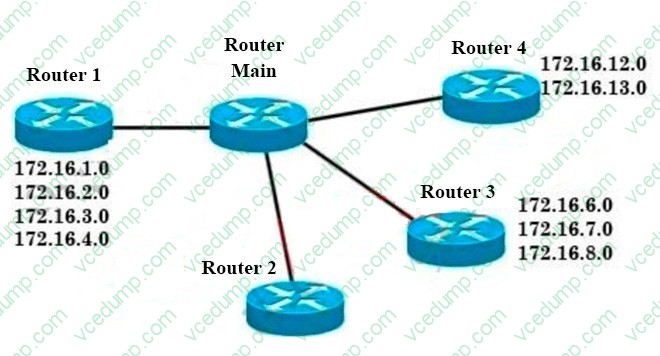

  Refer to the exhibit.

  Which address range efficiently summarizes the routing table of the addresses for router Main?



  A. 172.16.0.0./21
  B. 172.16.0.0./20
  C. 172.16.0.0./16
  D. 172.16.0.0/18
  B. 172.16.0.0./20

• Question 538:

  Through which three states does a BGP routing process pass when it establishes a peering session with a neighbor? (Choose three.)

  A. Open receive
  B. Inactive
  C. Active
  D. Connected
  E. Open sent
  F. Idle
  C. Active
  E. Open sent
  F. Idle

  ---

  BGP states are as follows:

  1.

  IDLE - Router is searching routing table to see whether a route exists to reach the neighbor.

  2.

  CONNECT - Router found a route to the neighbor and has completed the three-way TCP handshake.

  3.

  OPEN SENT - Open message sent, with parameters for the BGP session.

  4.

  OPEN CONFIRM - Router received agreement on the parameters for establishing session.

  5.

  ACTIVE - Router didn't receive agreement on parameters of establishment.

  6.

  ESTABLISHED - Peering is established; routing begins.

• Question 539:

  Which of these represents an IPv6 link-local address?

  A. FE80::380e:611a:e14f:3d69
  B. FE81::280f:512b:e14f:3d69
  C. FEFE:0345:5f1b::e14d:3d69
  D. FE08::280e:611:a:f14f:3d69
  A. FE80::380e:611a:e14f:3d69

  ---

  Understanding IPv6 Link Local Address The purpose of this document is to provide an understanding of IPv6 Link-local address in a network. A link-local address is an IPv6 unicast address that can be automatically configured on any interface using the link-local prefix FE80::/10 (1111 1110 10) and the interface identifier in the modified EUI-64 format. Link-local addresses are not necessarily bound to the MAC address (configured in a EUI-64 format). Link-local addresses can also be manually configured in the FE80::/10 format using the ipv6 address link-local command.

  Reference: http://www.cisco.com/en/US/tech/tk872/technologies_configuration_example09186a0080ba1d07.shtml

• Question 540:

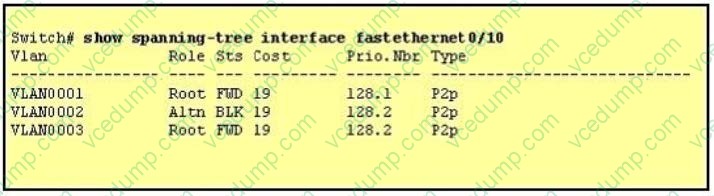

  Refer to the exhibit. Given the output shown from this Cisco Catalyst 2950, what is the reasons that interface FastEthernet 0/10 is not the root port for VLAN 2?



  A. This switch has more than one interface connected to the root network segment in VLAN 2.
  B. This switch is running RSTP while the elected designated switch is running 802.1d Spanning Tree.
  C. This switch interface has a higher path cost to the root bridge than another in the topology.
  D. This switch has a lower bridge ID for VLAN 2 than the elected designated switch.
  C. This switch interface has a higher path cost to the root bridge than another in the topology.

  ---

  These four parameters are examined in order to make root bridge, root port, designated port. Other switch has lowest Sending Bridge ID or Sending Port ID so vlan 2 is not the root port.

  1.

  A lower Root Bridge ID

  2.

  A lower path cost to the Root

  3.

  A lower Sending Bridge ID

  4.

  A lower Sending Port ID
