Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 491:

  Which term represents the minimum bandwidth provided in a Metro Ethernet connection?

  A. UNI
  B. CIR
  C. EVC
  D. PIR
  B. CIR

• Question 492:

  What is the minimum level of SNMP that provides encryption?

  A. SNMPv3 authPriv
  B. SNMPv3 authNoPriv
  C. SNMPv3 noAuthNoPriv
  D. SNMPv2 noAuthNoPriv
  A. SNMPv3 authPriv

• Question 493:

  Refer to the exhibit.

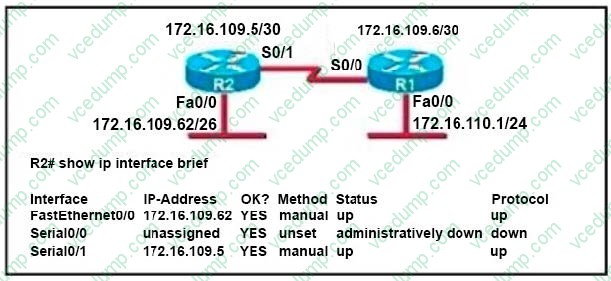

  Assuming that the entire network topology is shown, what is the operational status of the interfaces of R2 as indicated by the command output shown?



  A. One interface has a problem.
  B. Two interfaces have problems.
  C. The interfaces are functioning correctly.
  D. The operational status of the interfaces cannot be determined from the output shown.
  C. The interfaces are functioning correctly.

  ---

  R2 has setup with two interface s0/1 and fa0/0 and both are interfaces configured with IP address and up. "show ip interface brief" showing the status of R2 interfaces.

• Question 494:

  Which encryption method does CHAP authentication use for the peer response?

  A. EAP
  B. MD5
  C. DES
  D. DSS
  E. AES
  F. 3DES
  B. MD5

• Question 495:

  Which three statements are benefits of using a shadow router as the source of IP SLA measurements? (Choose three.)

  A. It offsets the resource load from a production router.
  B. It can be managed independently of production network traffic.
  C. It reduces traffic through existing interfaces by adding another network interface.
  D. It provides a better estimation of Layer 2 network traffic.
  E. It enables switched traffic to take precedence over local traffic.
  F. It adds an NTP synchronization point.
  A. It offsets the resource load from a production router.
  B. It can be managed independently of production network traffic.
  D. It provides a better estimation of Layer 2 network traffic.

  ---

  A dedicated router used as a source of IP SLA measurement is also called a shadow router. Implementing IP SLA with a shadow router has several advantages:

  Dedicated router would offset the resource load on production router from the implemented IP SLA Network Management operations.

  Dedicated router would be a central device that can be independently managed without any impact on network traffic.

  Granting SNMP read-write access to the device might not be such a huge security risk compared to enabling SNMP read-write on a production router carrying customer traffic.

  Better estimation of Layer 2 switching performance can be obtained if the access port is placed on the same switch/linecard as the endpoint to be managed. This is because the IP SLA packets also have to traverse the same interface

  queuing at the access layer as the regular IP packets.

  Reference: https://www.cisco.com/en/US/technologies/tk869/tk769/technologies_white_paper0900aecd806bfb52.html

• Question 496:

  Which two services can the ICMP Echo IP SLA provide? (Choose two.)

  A. network performance monitoring
  B. inventory maintenance
  C. asset depreciation reporting
  D. hardware information exchange between devices
  E. network device availability reporting
  A. network performance monitoring
  E. network device availability reporting

• Question 497:

  DRAG DROP

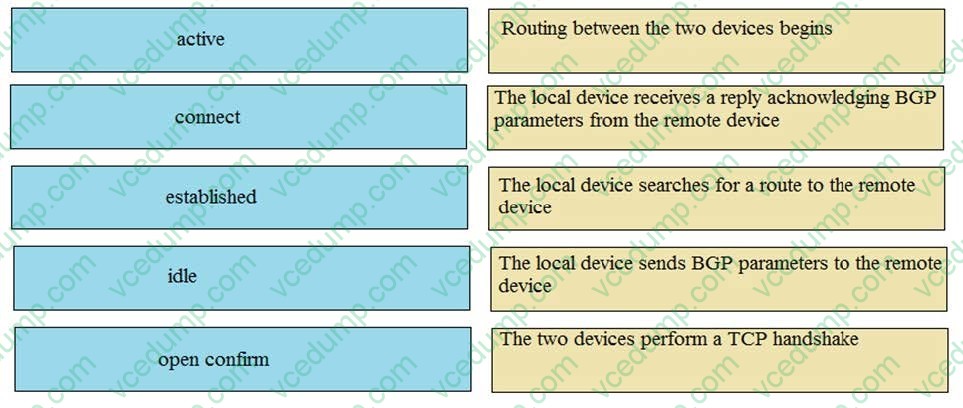

  Drag and drop the BGP peering states from the left onto the correct statements on the right.

  Select and Place:





• Question 498:

  On which port type is the spanning-tree portfast command supported without additional configuration?

  A. access ports
  B. Layer 3 subinterfaces
  C. Layer 3 main interfaces
  D. trunk ports
  A. access ports

• Question 499:

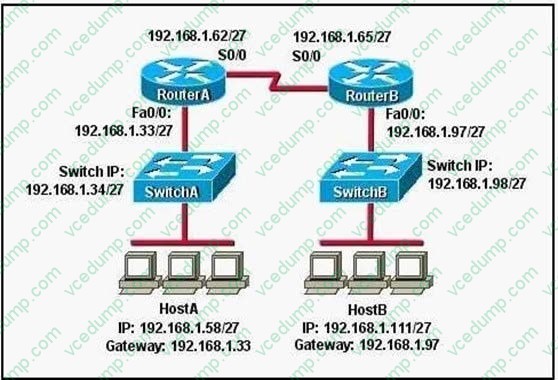

  Refer to the exhibit. HostA cannot ping HostB.

  Assuming routing is properly configured, what could be the cause of this problem?



  A. HostA is not on the same subnet as its default gateway.
  B. The address of SwitchA is a subnet address.
  C. The Fa0/0 interface on RouterA is on a subnet that can't be used.
  D. The serial interfaces of the routers are not on the same subnet.
  E. The Fa0/0 interface on RouterB is using a broadcast address.
  D. The serial interfaces of the routers are not on the same subnet.

• Question 500:

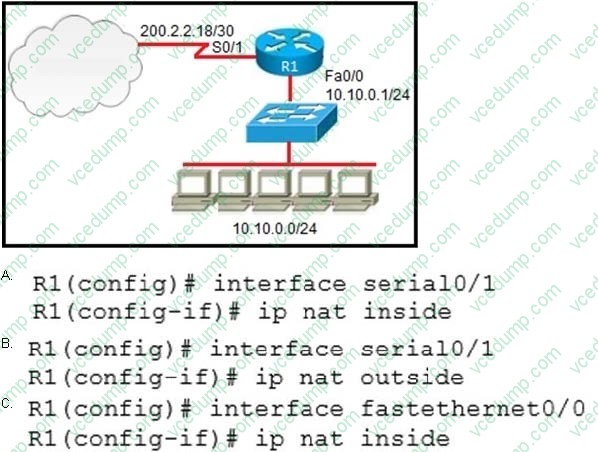

  Refer to the graphic. A company wants to use NAT in the network shown. Which commands will apply the NAT configuration to the proper interfaces? (Choose two.)



  A. B. C.
  D. E. F.
  BC
