Cisco 200-105 Online Questions & Answers

• Question 411:

  An access list has been designed to prevent Telnet traffic from the Graphics Department from reaching the HR server attached to the Eastfield router but allow Telnet traffic to other destinations. Given the following access list:

  access-list 101 deny tcp any any eq 23 permit ip any any

  On which router, interface, and in what direction should the access list be placed to most efficiently implement this list? (Choose three.)

  A. Westfield
  B. Eastfield
  C. e0
  D. s0
  E. in
  F. out
  B. Eastfield
  C. e0
  F. out

• Question 412:

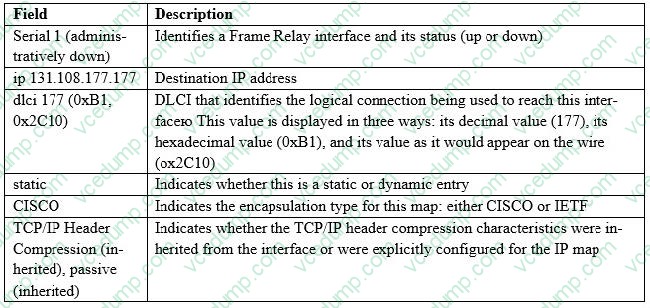

  The command show frame-relay map gives the following output:

  Serial 0 (up): ip 192.168.151.4 dlci 122, dynamic, broadcast, status defined, active

  Which statements represent what is shown? (Choose three.)

  A. 192.168.151.4 represents the IP address of the remote router
  B. 192.168.151.4 represents the IP address of the local serial interface
  C. DLCI 122 represents the interface of the remote serial interface
  D. DLCI 122 represents the local number used to connect to the remote address
  E. broadcast indicates that a dynamic routing protocol such as RIP v1 can send packets across this PVC
  F. active indicates that the ARP process is working
  A. 192.168.151.4 represents the IP address of the remote router
  D. DLCI 122 represents the local number used to connect to the remote address
  E. broadcast indicates that a dynamic routing protocol such as RIP v1 can send packets across this PVC

  ---



  Reference: http://www.cisco.com/en/US/docs/ios/12_2/wan/command/reference/wrffr4.html#wp1029343

• Question 413:

  Which state does a port with BPDU guard enabled enter when it receives a BPDU?

  A. learning
  B. err-disabled
  C. forwarding
  D. disabled
  B. err-disabled

• Question 414:

  Which technology can identify and classify mission-critical applications for path selection?

  A. PBR
  B. NBAR
  C. PfR
  D. QoS
  C. PfR

• Question 415:

  Which option is a benefit of switch stacking?

  A. It provides redundancy with no impact on resource usage.
  B. It simplifies adding and removing hosts.
  C. It supports better performance of high-needs applications.
  D. It provides higher port density with better resource usage.
  D. It provides higher port density with better resource usage.

  ---

  A stackable switch is a network switch that is fully functional operating standalone but which can also be set up to operate together with one or more other network switches, with this group of switches showing the characteristics of a single switch but having the port capacity of the sum of the combined switches.

• Question 416:

  Which device classes are used over serial links? (Choose two)

  A. DCE
  B. DTE
  C. LCP
  D. HDLC
  E. PPP
  F. LMI
  A. DCE
  B. DTE

• Question 417:

  Which option describes a benefit of a point-to-point leased line?

  A. full-mesh capability
  B. flexibility of design
  C. low cost
  D. simplicity of configuration
  D. simplicity of configuration

• Question 418:

  Which two statements about Ethernet standards are true? (Choose two.)

  A. Ethernet is defined by IEEE standard 802.2.
  B. Ethernet is defined by IEEE standard 802.3.
  C. Ethernet 10BASE-T does not support full-duplex.
  D. When an Ethernet network uses CSMA/CD, it terminates transmission as soon as a collision occurs.
  E. When an Ethernet network uses CSMA/CA. it terminates transmission as soon as a collision occurs.
  B. Ethernet is defined by IEEE standard 802.3.
  D. When an Ethernet network uses CSMA/CD, it terminates transmission as soon as a collision occurs.

• Question 419:

  What is the best way to verify that a host has a path to other hosts in different networks?

  A. Ping the loopback address.
  B. Ping the default gateway.
  C. Ping the local interface address.
  D. Ping the remote network.
  D. Ping the remote network.

  ---

  Ping is a tool that helps to verify IP-level connectivity; PathPing is a tool that detects packet loss over multiple-hop trips. When troubleshooting, the ping command is used to send an ICMP Echo Request to a target host name or IP address.

  Use Ping whenever you want to verify that a host computer can send IP packets to a destination host.

  You can also use the Ping tool to isolate network hardware problems and incompatible configurations. If you call ipconfig /all and receive a response, there is no need to ping the loopback address and your own IP address --Ipconfig has

  already done so in order to generate the report.

  It is best to verify that a route exists between the local computer and a network host by first using ping and the IP address of the network host to which you want to connect. The command syntax is:

  ping < IP address >

  Perform the following steps when using Ping:

  Ping the loopback address to verify that TCP/IP is installed and configured correctly on the local computer.

  ping 127.0.0.1

  If the loopback step fails, the IP stack is not responding. This might be because the TCP drivers are corrupted, the network adapter might not be working, or another service is interfering with IP. Ping the IP address of the local computer to

  verify that it was added to the network correctly. Note that if the routing table is correct, this simply forwards the packet to the loopback address of 127.0.0.1.

  ping < IP address of local host >

  Ping the IP address of the default gateway to verify that the default gateway is functioning and that you can communicate with a local host on the local network.

  ping < IP address of default gateway >

  Ping the IP address of a remote host to verify that you can communicate through a router.

  ping < IP address of remote host >

  Ping the host name of a remote host to verify that you can resolve a remote host name.

  ping < Host name of remote host >

  Run a PathPing analysis to a remote host to verify that the routers on the way to the destination are operating correctly.

  pathping < IP address of remote host >

• Question 420:

  Which three components must you configure to establish a GRE tunnel? (Choose three.)

  A. BGP autonomous system number
  B. authentication mode
  C. tunnel destination IP address
  D. IGP type at each site
  E. tunnel source IP address
  F. logical tunnel interface
  C. tunnel destination IP address
  E. tunnel source IP address
  F. logical tunnel interface
