Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 431:

  The ROUTE company has a small network. The network consists of one switch and one router. The switch has been configured with two VLANs. The router has been configured as a router-on-a-stick to allow inter-VLAN routing. A trunk is configured to connect the switch to the router.

  What is the minimum number of router subinterfaces that are required for all the VLANs to communicate?

  A. zero
  B. one
  C. two
  D. three
  C. two

• Question 432:

  Which option describes a difference between EIGRP for IPv4 and IPv6?

  A. Only EIGRP for IPv6 advertises all connected networks.
  B. Only EIGRP for IPv6 requires a router ID to be configured under the routing process.
  C. AS numbers are configured in EIGRP but not in EIGRPv3.
  D. Only EIGRP for IPv6 is enabled in the global configuration mode.
  B. Only EIGRP for IPv6 requires a router ID to be configured under the routing process.

  ---

  Router ID -Both EIGRP for IPv4 and EIGRP for IPv6 use a 32-bit number for the EIGRP router ID. The 32-bit router ID is represented in dotted-decimal notation and is commonly referred to as an IPv4 address. If the EIGRP for IPv6 router has not been configured with an IPv4 address, the eigrp router-id command must be used to configure a 32-bit router ID. The process for determining the router ID is the same for both EIGRP for IPv4 and IPv6.

• Question 433:

  What are the three things that the Netflow uses to consider the traffic to be in a same flow? (Choose three.)

  A. IP address
  B. Interface name
  C. Port numbers
  D. L3 protocol type
  E. MAC address
  A. IP address
  C. Port numbers
  D. L3 protocol type

• Question 434:

  Which effect of the router ospf 10 command is true?

  A. It disables static routing on the router.
  B. It enables OSPF on a Layer 3 device.
  C. It enables OSPF on all connected interfaces on a Layer 3 device.
  D. It sets the device domain ID to 10.
  B. It enables OSPF on a Layer 3 device.

• Question 435:

  A router has two Fast Ethernet interfaces and needs to connect to four VLANs in the local network. How can you accomplish this task, using the fewest physical interfaces and without decreasing network performance?

  A. Use a hub to connect the four VLANS with a Fast Ethernet interface on the router.
  B. Add a second router to handle the VLAN traffic.
  C. Add two more Fast Ethernet interfaces.
  D. Implement a router-on-a-stick configuration.
  D. Implement a router-on-a-stick configuration.

• Question 436:

  Which RPVST+ port state is excluded from all STP operations?

  A. learning
  B. forwarding
  C. blocking
  D. disabled
  D. disabled

• Question 437:

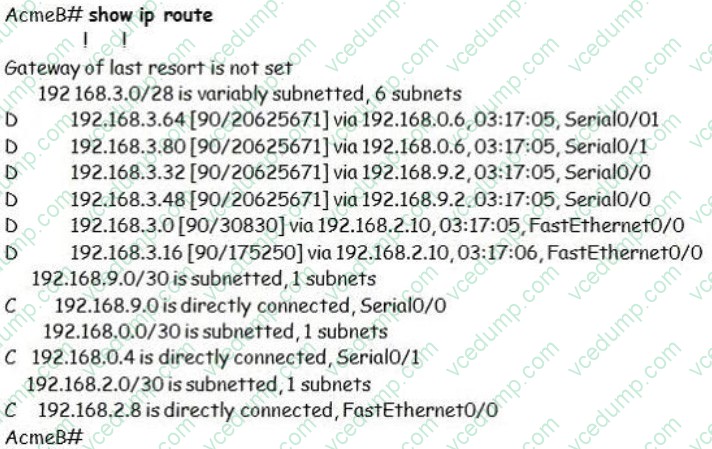

  Refer to the exhibit. A packet with a source IP address of 192.168.2.4 and a destination IP address of 10.1.1.4 arrives at the AcmeB router. What action does the router take?



  A. forwards the received packet out the Serial0/0 interface
  B. forwards a packet containing an EIGRP advertisement out the Serial0/1 interface
  C. forwards a packet containing an ICMP message out the FastEthemet0/0 interface
  D. forwards a packet containing an ARP request out the FastEthemet0/1 interface
  C. forwards a packet containing an ICMP message out the FastEthemet0/0 interface

  ---

  Looking at the output above, there is no IP route for 10.1.1.4 address on AcmeB routing table.

  If the router can no find a specific path in its routing table to a particular route, (In this case no path is found so AcmeB) the router will inform the source host with an ICMP message that the destination is unreachable and this will be through

  the same interface it has received the packet (interface Fa0/0 network 192.168.3.0/28 from the exhibit).

  Reference:

  http://www.orbitco-ccna-pastquestions.com/CCNA---EIGRP-Common-Question.php

• Question 438:

  Which statement about GRE tunnels is true?

  A. They pass clear-text traffic.
  B. They are stateful.
  C. They are unable to carry multicast traffic.
  D. They use MD5 for encryption.
  A. They pass clear-text traffic.

• Question 439:

  Which statement describes an EIGRP feasible successor route?

  A. A primary route, added to the routing table
  B. A backup route, added to the routing table
  C. A primary route, added to the topology table
  D. A backup route, added to the topology table
  D. A backup route, added to the topology table

  ---

  Two terms that appear often in the EIGRP world are "successor" and "feasible successor". A successor is the route with the best metric to reach a destination. That route is stored in the routing table. A feasible successor is a backup path to reach that same destination that can be used immediately if the successor route fails. These backup routes are stored in the topology table.

• Question 440:

  In the Software-Defined Networking model, where is the interface between the control plane and the data plane?

  A. between the control layer and the infrastructure layer
  B. between the collocated layer and the dislocated layer
  C. between the control layer and application layer
  D. between the application layer and the infrastructure layer
  A. between the control layer and the infrastructure layer

  ---

  Reference: https://www.sdxcentral.com/sdn/definitions/inside-sdn-architecture/
