Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 401:

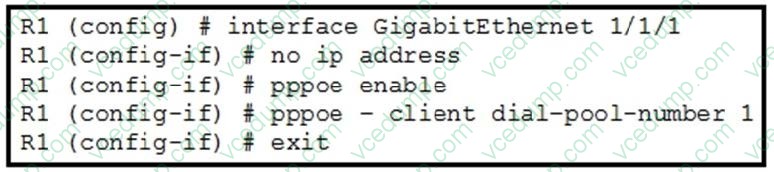

  Refer to the exhibit. Which effect of this configuration is true?

  A. It configures PPP over Ethernet globally for the device.
  B. It configures PPP over Ethernet in client mode.
  C. It configures PPP over Multilink.
  D. It configures PPP over Ethernet in server mode.
  B. It configures PPP over Ethernet in client mode.

• Question 402:

  What information does a router running a link-state protocol use to build and maintain its topological database? (Choose two.)

  A. hello packets
  B. SAP messages sent by other routers
  C. LSAs from other routers
  D. beacons received on point-to-point links
  E. routing tables received from other link-state routers
  F. TTL packets from designated routers
  A. hello packets
  C. LSAs from other routers

  ---

  Reference: http://www.cisco.com/en/US/tech/tk365/technologies_white_paper09186a0080094e9e.shtml

• Question 403:

  Which two statements describe characteristics of IPv6 unicast addressing? (Choose two.)

  A. Global addresses start with 2000::/3.
  B. Link-local addresses start with FE00:/12.
  C. Link-local addresses start with FF00::/10.
  D. There is only one loopback address and it is ::1.
  E. If a global address is assigned to an interface, then that is the only allowable address for the interface.
  A. Global addresses start with 2000::/3.
  D. There is only one loopback address and it is ::1.

• Question 404:

  What is the Cisco recommended DSCP value for voice traffic?

  A. 111110
  B. 100110
  C. 101110
  D. 101111
  C. 101110

• Question 405:

  Which routing protocol is most appropriate for sending and receiving routes directly to and from the Internet?

  A. RIP
  B. BGP
  C. EIGRP
  D. OSPF
  B. BGP

• Question 406:

  What are three characteristics of the OSPF routing protocol? (Choose three.)

  A. It converges quickly.
  B. OSPF is a classful routing protocol.
  C. It uses cost to determine the best route.
  D. It uses the DUAL algorithm to determine the best route.
  E. OSPF routers send the complete routing table to all directly attached routers.
  F. OSPF routers discover neighbors before exchanging routing information.
  A. It converges quickly.
  C. It uses cost to determine the best route.
  F. OSPF routers discover neighbors before exchanging routing information.

• Question 407:

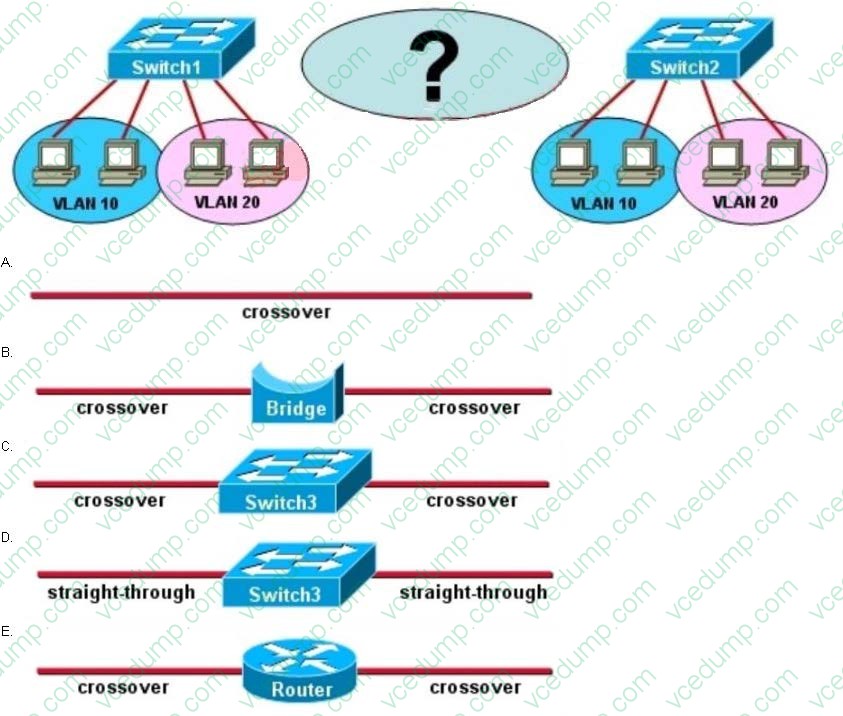

  Refer to the exhibit. How should Switch1 and Switch2 be connected in order to allow full communication between all of the hosts?



  A. B. C. D. E.
  F

• Question 408:

  Which feature does PPP use to encapsulate multiple protocols?

  A. NCP
  B. LCP
  C. IPCP
  D. IPXP
  A. NCP

  ---

  Network Core Protocol (NCP) is the component that encapsulates and configures multiple network layer protocols.

• Question 409:

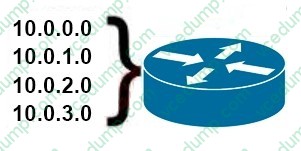

  Refer to the exhibit. What is the most appropriate summarization for these routes?



  A. 10.0.0.0 /21
  B. 10.0.0.0 /22
  C. 10.0.0.0 /23
  D. 10.0.0.0 /24
  B. 10.0.0.0 /22

• Question 410:

  Which two of these statements regarding RSTP are correct? (Choose two.)

  A. RSTP cannot operate with PVST+.
  B. RSTP defines new port roles.
  C. RSTP defines no new port states.
  D. RSTP is a proprietary implementation of IEEE 802.1D STP.
  E. RSTP is compatible with the original IEEE 802.1D STP.
  B. RSTP defines new port roles.
  E. RSTP is compatible with the original IEEE 802.1D STP.

  ---

  Port Roles The role is now a variable assigned to a given port. The root port and designated port roles remain, while the blocking port role is split into the backup and alternate port roles. The Spanning Tree Algorithm (STA) determines the role of a port based on Bridge Protocol Data Units (BPDUs). In order to simplify matters, the thing to remember about a BPDU is there is always a method to compare any two of them and decide whether one is more useful than the other. This is based on the value stored in the BPDU and occasionally on the port on which they are received. This considered, the information in this section explains practical approaches to port roles. Compatibility with 802.1D RSTP is able to interoperate with legacy STP protocols. However, it is important to note that the inherent fast convergence benefits of 802.1w are lost when it interacts with legacy bridges.

  Reference: http://www.cisco.com/en/US/tech/tk389/tk621/technologies_white_paper09186a0080094cfa.shtml
