• Question 141:

  Which command do you enter to view OSPFv3 adjacencies?

  A. show ipv6 ospf database
  B. show running-configuration ospfv3
  C. show ipv6 ospf neighbor
  D. show ipv6 ospf retransmission-list
  C. show ipv6 ospf neighbor

• Question 142:

  You have been asked to come up with a subnet mask that will allow all three web servers to be on the same network while providing the maximum number of subnets.

  Which network address and subnet mask meet this requirement?

  A. 192.168.252.0 255.255.255.252
  B. 192.168.252.8 255.255.255.248
  C. 192.168.252.8 255.255.255.252
  D. 192.168.252.16 255.255.255.240
  E. 192.168.252.16 255.255.255.252
  B. 192.168.252.8 255.255.255.248

• Question 143:

  Which command do you enter to determine the status of the SVI for VLAN 10?

  A. show ip interface brief
  B. show run interface vlan 10
  C. show vtp status
  D. show interface trunk
  A. show ip interface brief

• Question 144:

  Which EIGRP for IPv6 command can you enter to view the link-local addresses of the neighbors of a device?

  A. show ipv6 eigrp 20 interfaces
  B. show ipv6 route eigrp
  C. show ipv6 eigrp neighbors
  D. show ip eigrp traffic
  C. show ipv6 eigrp neighbors

• Question 145:

  Which command can you enter in a network switch configuration so that learned mac addresses are saved in configuration as they connect?

  A. Switch(config-if)#Switch port-security
  B. Switch(config-if)#Switch port-security Mac-address sticky
  C. Switch(config-if)#Switch port-security maximum 10
  D. Switch(config-if)#Switch mode access
  B. Switch(config-if)#Switch port-security Mac-address sticky

• Question 146:

  DRAG DROP

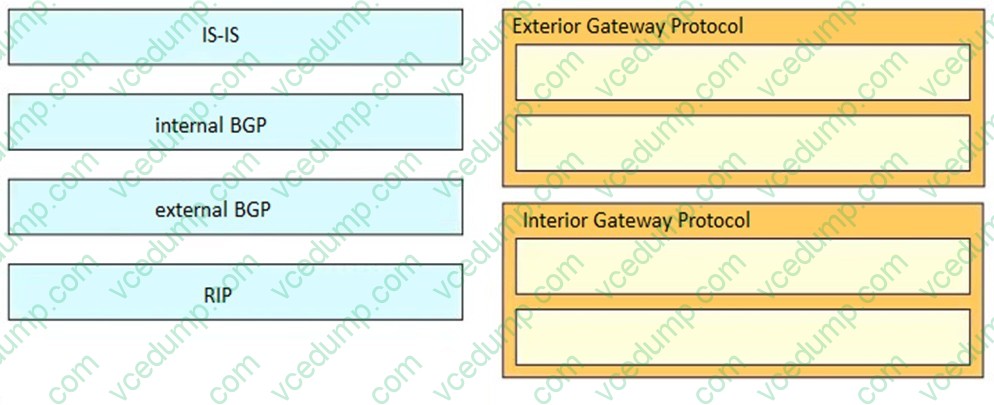

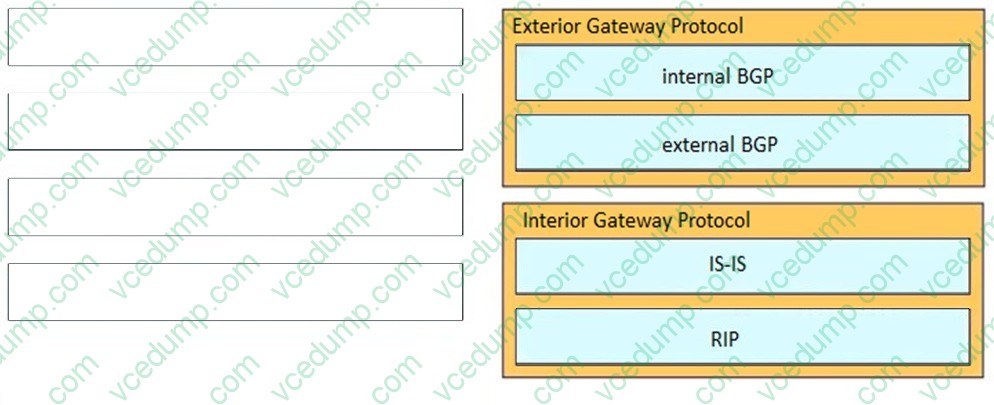

  Drag and drop the routing protocols from the left onto the correct routing protocol types on the right.

  Select and Place:





• Question 147:

  Instructions

  This item contains several questions that you must answer. You can view these questions by clicking on the corresponding button to the left. Changing questions can be accomplished by clicking the numbers to the left of each question. In order to complete the questions, you will need to refer to the topology.

  To gain access to the topology, click on the topology button at the bottom of the screen. When you have finished viewing the topology, you can return to your questions by clicking on the Questions button to the left.

  Each of the windows can be minimized by clicking on the [-]. You can also reposition a window by dragging it by the title bar.

  Scenario

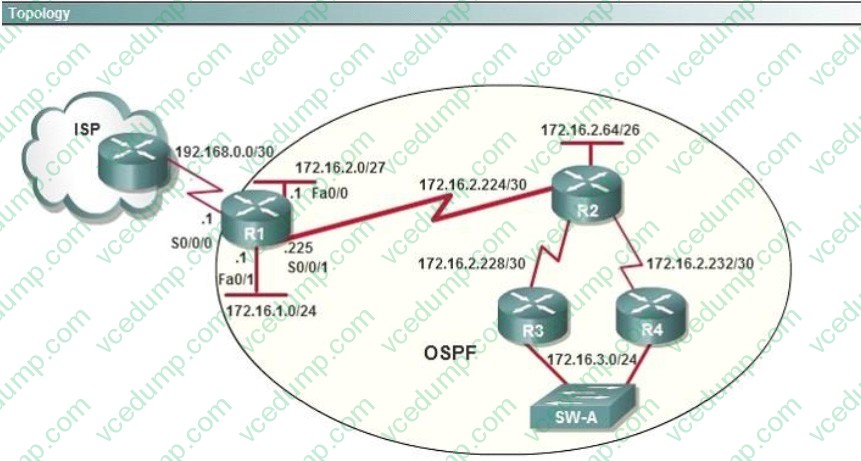

  Refer to the topology. Using the information shown, answer the four questions shown on the Questions tab.



  OSPF is configured using default classful addressing. With all routers and interfaces operational, how many networks will be in the routing table of R1 that are indicated to be learned by OSPF?

  A. 2
  B. 3
  C. 4
  D. 5
  E. 6
  F. 7
  C. 4

  ---

  It already knows about its directly connected ones, only those not directly connected are "Learned by OSPF". OSPF as a link state routing protocol (deals with LSAs rather than routes) does not auto summarize (doesn't support "auto-summary"). So learned route by OSPF are followed 172.16.2.64/26 172.16.2.228/30 172.16.2.232/30 172.16.3.0/24

• Question 148:

  What are three components that comprise the SNMP framework? (Choose three.)

  A. MIB
  B. agent
  C. set
  D. AES
  E. supervisor
  F. manager
  A. MIB
  B. agent
  F. manager

• Question 149:

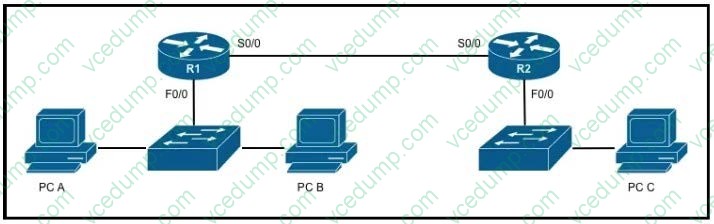

  Refer to the exhibit. All three PCs on the network are in different VLANs. If you want to permit PC A to communicate with PC C, but prevent communications from PC B to PC C, where on this network do you place a standard ACL?



  A. on interface S0/0 on R2
  B. on interface F0/0 on R1
  C. on interface F0/0 on R2
  D. on interface S0/0 on R1
  A. on interface S0/0 on R2

• Question 150:

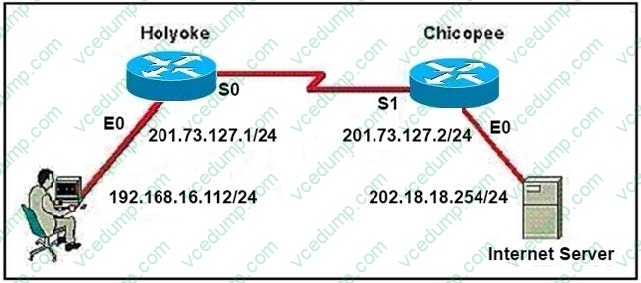

  Refer to the graphic. Users on the Holyoke router are unable to access the intranet server attached to interface E0 of the Chicopee router. Inspection of the routing table of the Holyoke router shows that an entry for the Chicopee E0 network is missing.

  Which command will configure the Holyoke router with a path to the intranet server network?



  A. Holyoke(config)# ip host Chicopee 201.73.127.2
  B. Holyoke(config)# ip host Chicopee 201.73.127.0 255.255.255.0
  C. Holyoke(config)# ip network 202.18.38.0
  D. Holyoke(config)# ip network 202.18.18.0 255.255.255.0
  E. Holyoke(config)# ip route 202.18.18.0 255.255.255.0 201.73.127.2
  F. Holyoke(config)# ip route 201.73.127.2 255.255.255.0 202.18.18.0
  E. Holyoke(config)# ip route 202.18.18.0 255.255.255.0 201.73.127.2
