• Question 501:

  Which definition of a host route is true?

  A. A route that is manually configured
  B. A route used when a destination route is missing.
  C. A route to the exact /32 destination address
  D. Dynamic route learned from the server.
  B. A route used when a destination route is missing.

• Question 502:

  Drag and Drop Question

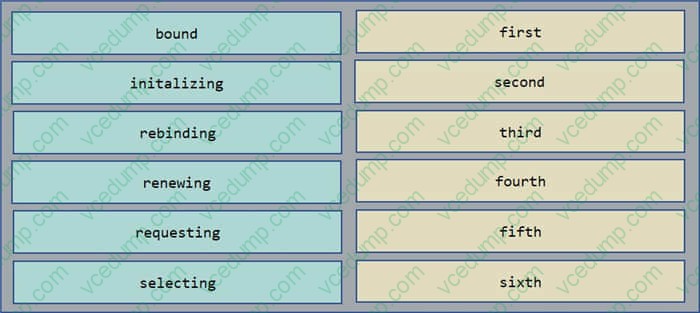

  Drag and drop the DHCP client states from the left into the standard order in which the Client passes through them on the right.

  Select and Place:





• Question 503:

  Which two VLANs are reserved for system use only? (Choose two.)

  A. 2
  B. 4095
  C. 1001
  D. 4096
  E. 1
  B. 4095

• Question 504:

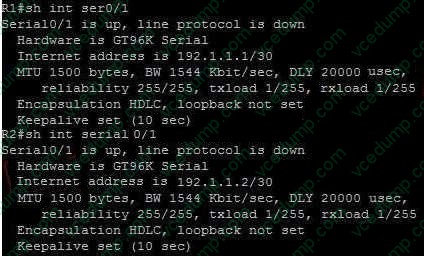

  Refer to the exhibit. A network technician is unable to ping from R1 to R2. What will help correct the problem?



  A. Ensure that the serial cable is correctly plugged in to the interfaces.
  B. Apply the clock rate 56000 configuration command to the serial0/1 interface of R1.
  C. Configure the serial0/1 interfaces on R1 and R2 with the no shutdown command.
  D. Change the address of the serial0/1 interface of R1 to 192.1.1.4.
  E. Change the subnet masks of both interfaces to 255.255.255.240.
  B. Apply the clock rate 56000 configuration command to the serial0/1 interface of R1.

• Question 505:

  Router R1 has a static router that is configured to a destination network. A directly connected inference is configured with an ip address in the same destination network. Which statement about R1 is true ?

  A. It refuses to advertise the dynamic route to other neighbors
  B. It sends a withdrawal signal to the neighboring router
  C. It disables the routing protocol
  D. It prefers the static route
  D. It prefers the static route

• Question 506:

  Which value does an IPv6 host use to create an EUI-64?

  A. the MAC address
  B. the OSPFv6 router ID
  C. the IPv6 address
  D. the IPv4 address
  A. the MAC address

• Question 507:

  Which technology allows multiple VLANs to be extended across the network without the need for Layer 3 routing?

  A. trunk ports
  B. MPLS tunnels
  C. access ports
  D. IPsec tunnels
  A. trunk ports

• Question 508:

  Which address are OSPF hello packets addressed to on point-to-point networks?

  A. 224.0.0.5
  B. 172.16.0.1
  C. 192.168.0.5
  D. 223.0.0.1
  E. 254.255.255.255
  A. 224.0.0.5

• Question 509:

  Which two characteristics describe the access layer of the hierarchical network design model? (Choose two.)

  A. layer 3 support
  B. port security
  C. redundant components
  D. VLANs
  E. PoE
  B. port security
  D. VLANs

• Question 510:

  Which protocol does ipv6 use to discover other ipv6 nodes on the same segment?

  A. CLNS
  B. TCPv6
  C. NHRP
  D. NDP
  E. ARP
  D. NDP
