• Question 491:

  DRAG DROP

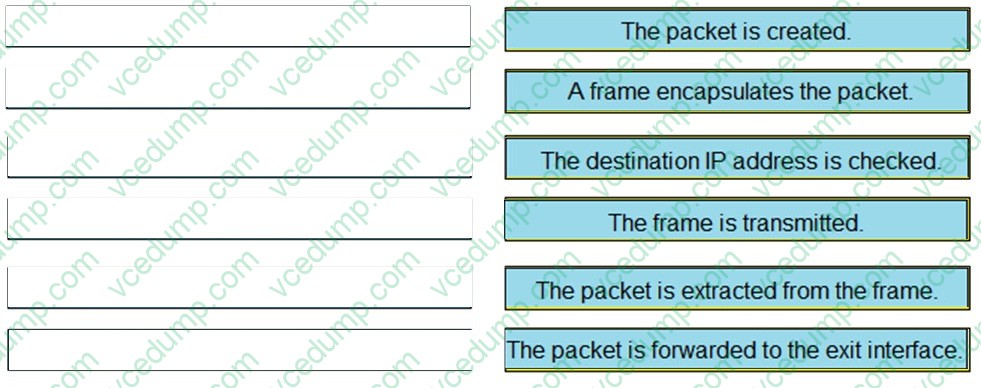

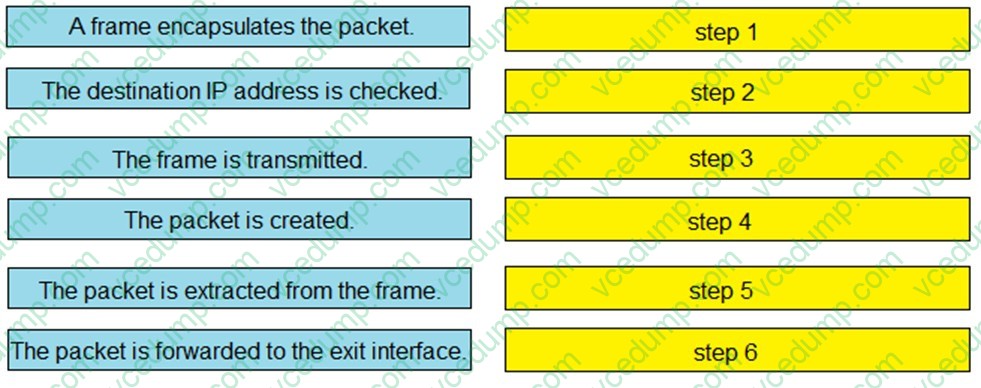

  A host is sending packets to a router. Drag and drop the steps in the packet-handling process from the left into the correct sequence on the right.

  Select and Place:





• Question 492:

  Which two options are the best reasons to use an ipv4 private ip space?

  A. to manage routing overhead
  B. to implement nat
  C. to connect applications
  D. to enable intra-enterprise communication
  E. to conserve global address space
  D. to enable intra-enterprise communication
  E. to conserve global address space

• Question 493:

  Which two statements about floating static routes are true? (Choose two)

  A. They are routes to the exact /32 destination address
  B. They are used when a route to the destination network is missing
  C. They have a higher administrative distance than the default static route administrative distance
  D. They are used as back-up routes when the primary route goes down
  E. They are dynamic routes that are learned from a server
  C. They have a higher administrative distance than the default static route administrative distance
  D. They are used as back-up routes when the primary route goes down

• Question 494:

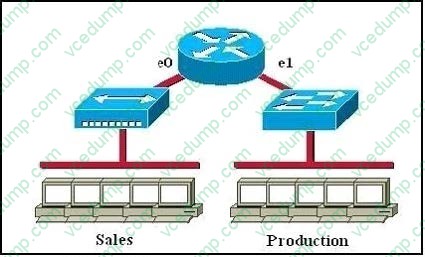

  Which of the following statements describe the network shown in the graphic? (Choose two.)



  A. There are two broadcast domains in the network.
  B. There are four broadcast domains in the network.
  C. There are six broadcast domains in the network.
  D. There are four collision domains in the network.
  E. There are five collision domains in the network.
  F. There are seven collision domains in the network.
  A. There are two broadcast domains in the network.
  F. There are seven collision domains in the network.

• Question 495:

  Which wildcard mask is equivalent to "any"?

  A. 0.0.0.0
  B. 11111111
  C. 00000000
  D. 255.255.255.255
  A. 0.0.0.0

• Question 496:

  When you use the ping command to send ICMP messages across a network, what's the most common request/reply pair you'll see? (Select one answer choice)

  A. Echo request and Echo reply
  B. ICMP hold and ICMP send
  C. ICMP request and ICMP reply
  D. Echo off and Echo on
  A. Echo request and Echo reply

• Question 497:

  Which two statements about administrative distance are true? (Choose two.)

  A. The metric is used to determine which administrative distance is selected from the routing table.
  B. The metric is calculated independently of the administrative distance.
  C. It identifies the routing protocol priority.
  D. It identifies the metric used for path calculation.
  E. The metric uses the administrative distance to calculate a path.
  B. The metric is calculated independently of the administrative distance.
  C. It identifies the routing protocol priority.

• Question 498:

  On a Cisco switch, which protocol determines if an attached VoIP phone is from Cisco or from another vendor?

  A. CDP
  B. RTP
  C. UDP
  D. TCP
  A. CDP

• Question 499:

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links. You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the main office and the routers located in the remote branch offices.



  An OSPF neighbor adjacency is not formed between R3 in the main office and R5 in the Branch2 office. What is causing the problem?

  A. There is an area ID mismatch.
  B. There is a PPP authentication issue; a password mismatch.
  C. There is an OSPF hello and dead interval mismatch.
  D. There is a missing network command in the OSPF process on R5.
  C. There is an OSPF hello and dead interval mismatch.

• Question 500:

  Which option is a valid IPv6 address?

  A. 2001:0000:130F::099a::12a
  B. 2002:7654:A1AD:61:81AF:CCC1
  C. FEC0:ABCD:WXYZ:0067::2A4
  D. 2004:1:25A4:886F::1
  D. 2004:1:25A4:886F::1
