Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 401:

  Which two fields are included in an Ethernet header? (Choose two.)

  A. source MAC address
  B. destination IP address
  C. payload
  D. Ether Type
  E. source IP address
  A. source MAC address
  D. Ether Type

• Question 402:

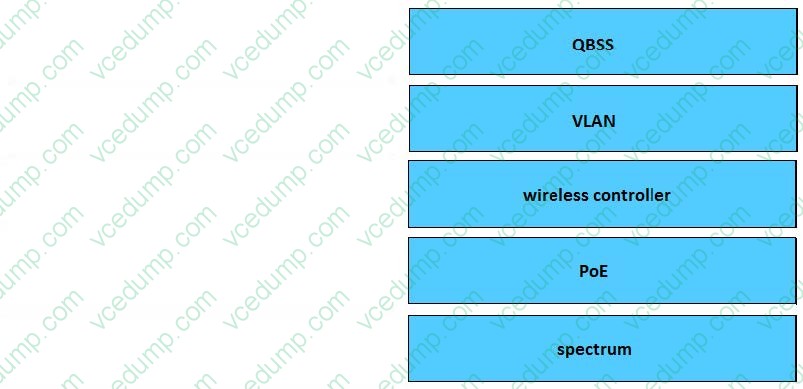

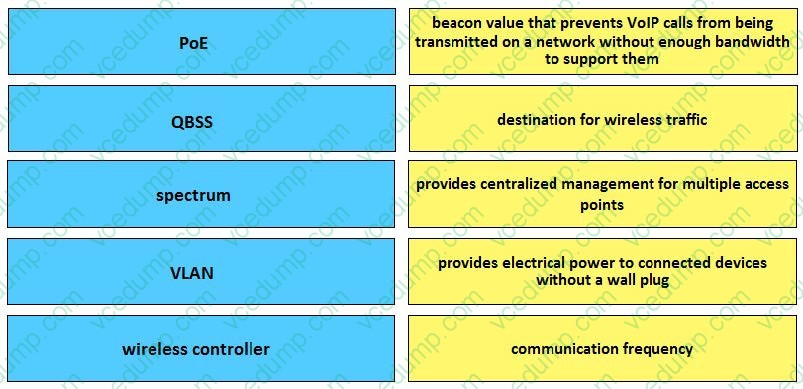

  DRAG DROP

  Drag and drop the wireless access-point components or features from the left onto the correct descriptions on the right.

  Select and Place:





• Question 403:

  Which three values must you specify to resequence an IP access list? (Choose three.)

  A. access list name
  B. increment
  C. starting sequence number
  D. interface
  E. dynamic access list number
  F. ending sequence number
  A. access list name
  B. increment
  C. starting sequence number

• Question 404:

  Which address scheme is used to route traffic to the public Internet?

  A. 2000::/3
  B. 172.30.1.0/24
  C. FC00::/7
  D. 192.168.10.0/24
  A. 2000::/3

• Question 405:

  Which network configuration can you use to segregate broadcast traffic for two different departments in your organization?

  A. Configure two VTP domains and configure the switches in transparent mode.
  B. Enable spanning-tree load balancing.
  C. Implement switch port security on designated ports.
  D. Configure a separate VLAN for each department.
  D. Configure a separate VLAN for each department.

• Question 406:

  Which statement about the default Cisco Discovery Protocol configuration is true?

  A. CDPv1 is disabled on FastEthernet interfaces.
  B. CDPv2 advertisements are unicast.
  C. CDPv1 is enabled on Frame Relay subinterfaces.
  D. CDPv2 advertisements are broadcast.
  D. CDPv2 advertisements are broadcast.

• Question 407:

  Which feature automatically disables Cisco Express Forwarding when it is enabled?

  A. multicast
  B. IP redirects
  C. RIB
  D. ACL logging
  D. ACL logging

• Question 408:

  Which symptom most commonly indicates that two connecting interfaces are configured with a duplex mismatch?

  A. the spanning-tree process shutting down
  B. collisions on the interface
  C. an interface with a down/down status
  D. an interface with an up/down status
  B. collisions on the interface

• Question 409:

  Which two statements describe the operation of the CSMA/CD access method? (Choose two.)

  A. After a collision, all stations run a random backoff algorithm. When the backoff delay period has expired, all stations have equal priority to transmit data.
  B. In a CSMA/CD collision domain, multiple stations can successfully transmit data simultaneously.
  C. After a collision, the station that detected the collision has first priority to resend the lost data.
  D. The use of hubs to enlarge the size of collision domain is one way to improve the operation of the CSMA/CD access method.
  E. After a collision, all stations involved run an identical backoff algorithm and then synchronize with each other prior to transmitting data.
  F. In a CSMA/CD collision domain, stations must wait until media is not in use before transmitting.
  A. After a collision, all stations run a random backoff algorithm. When the backoff delay period has expired, all stations have equal priority to transmit data.
  F. In a CSMA/CD collision domain, stations must wait until media is not in use before transmitting.

• Question 410:

  Which value represents a host route?

  A. 192.168.1.0/30
  B. 192.168.1.0/24
  C. 192.168.1.2/31
  D. 192.168.1.0/32
  D. 192.168.1.0/32
