Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 391:

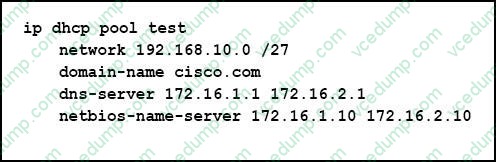

  Refer to the exhibit.



  After you apply the given configuration to a router, the DHCP clients behind the device cannot communicate with hosts outside of their subnet. Which action is most likely to correct the problem?

  A. Configure the dns server on the same subnet as the clients
  B. Activate the dhcp pool
  C. Correct the subnet mask
  D. configure the default gateway
  D. configure the default gateway

• Question 392:

  Which statement about port security on a trunk link is true?

  A. It error-disables the port after 10 MAC addresses are statically configured.
  B. It is not supported.
  C. By default, it shuts down the port if it learns more than one MAC address.
  D. When it is enabled, it disables the native VLAN configuration.
  C. By default, it shuts down the port if it learns more than one MAC address.

• Question 393:

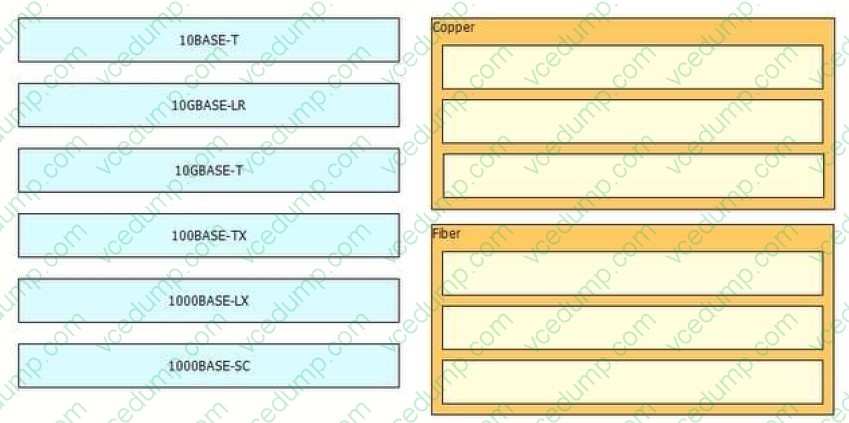

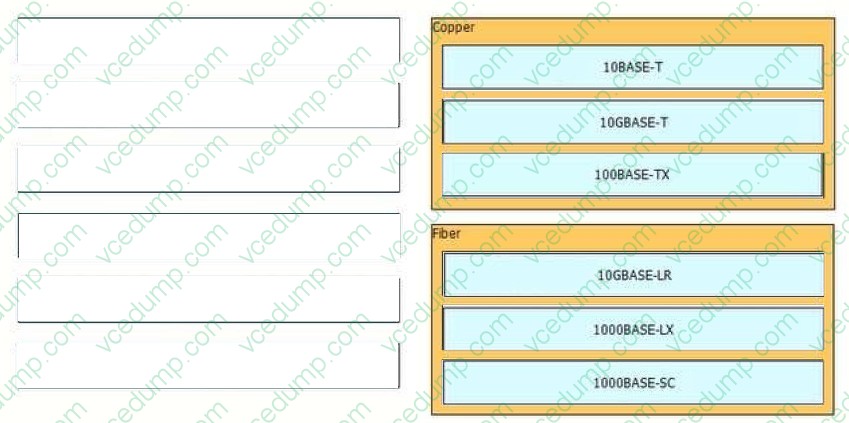

  Drag and Drop Question

  Drag and drop the IEEE standard Cable names from the left onto the correct cable types on the right.

  Select and Place:





• Question 394:

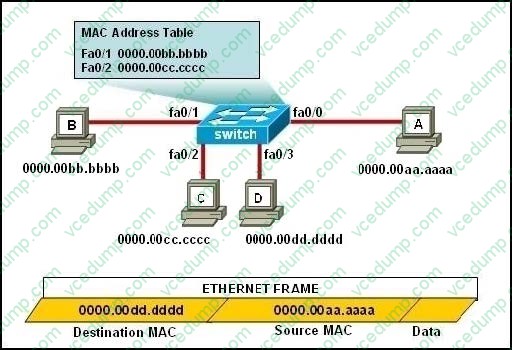

  Refer to the exhibit. The ports that are shown are the only active ports on the switch. The MAC address table is shown in its entirety. The Ethernet frame that is shown arrives at the switch. What two operations will the switch perform when it receives this frame? (Choose two.)



  A. The MAC address of 0000.00aa.aaaa will be added to the MAC address table.
  B. The MAC address of 0000.00dd.dddd will be added to the MAC address table.
  C. The frame will be forwarded out port fa0/3 only.
  D. The frame will be forwarded out fa0/1, fa0/2, and fa0/3.
  E. The frame will be forwarded out all the active ports.
  A. The MAC address of 0000.00aa.aaaa will be added to the MAC address table.
  D. The frame will be forwarded out fa0/1, fa0/2, and fa0/3.

• Question 395:

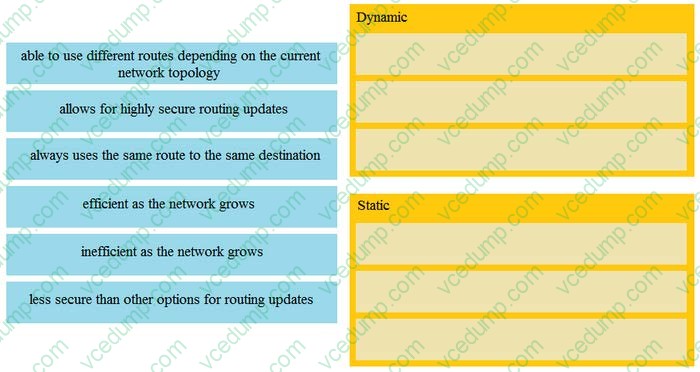

  DRAG DROP

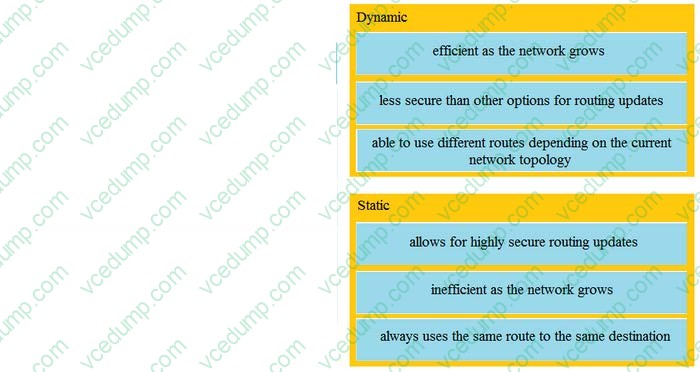

  Drag and drop the descriptions of static routing or dynamic routing from the left onto the correct categories on the right.

  Select and Place:





• Question 396:

  Two hosts are attached to a switch with the default configuration. Which statement about the configuration is true?

  A. IP routing must be enabled to allow the two hosts to communicate.
  B. The two hosts are in the same broadcast domain.
  C. The switch must be configured with a VLAN to allow the two hosts to communicate.
  D. Port security prevents the hosts from connecting to the switch.
  B. The two hosts are in the same broadcast domain.

• Question 397:

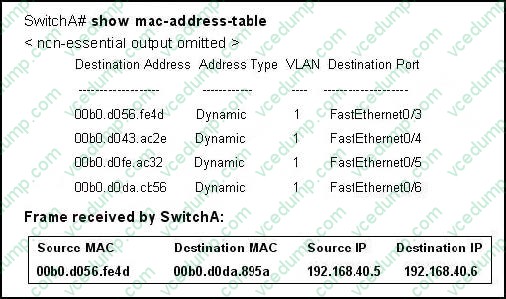

  Refer to the exhibit. SwitchA receives the frame with the addressing shown in the exhibit. According to the command output also shown in the exhibit, how will SwitchA handle this frame?



  A. It will drop the frame.
  B. It will forward the frame out port Fa0/6 only.
  C. It will forward the frame out port Fa0/3 only.
  D. It will flood the frame out all ports.
  E. It will flood the frame out all ports except Fa0/3.
  E. It will flood the frame out all ports except Fa0/3.

• Question 398:

  A switch receives a frame on one of its ports. There is no entry in the MAC address table for the destination MAC address. What will the switch do with the frame?

  A. drop the frame
  B. forward it out of all ports except the one that received it
  C. forward it out of all ports
  D. store it until it learns the correct port
  B. forward it out of all ports except the one that received it

• Question 399:

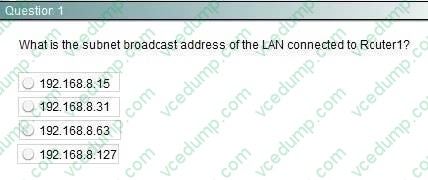

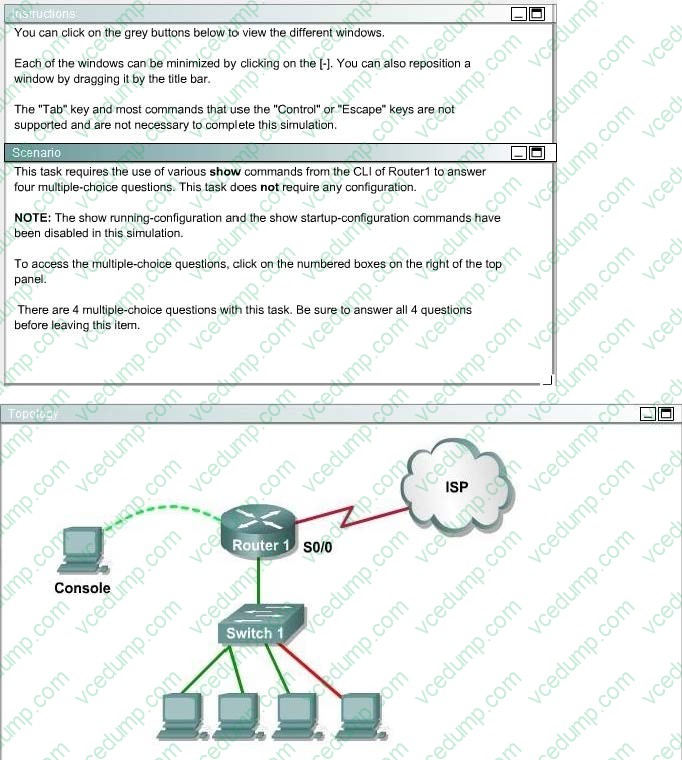

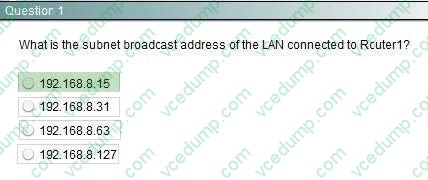

  Hot Area:





  ---

  The IP address assigned to FA0/1 is 192.168.8.9/29, making 192.168.8.15 the broadcast address.

• Question 400:

  A company has placed a networked PC in a lobby so guests can have access to the corporate directory. A security concern is that someone will disconnect the directory PC and re-connect their laptop computer and have access to the corporate network. For the port servicing the lobby, which three configuration steps should be performed on the switch to prevent this? (Choose three.)

  A. Enable port security.
  B. Create the port as a trunk port.
  C. Create the port as an access port.
  D. Create the port as a protected port.
  E. Set the port security aging time to 0.
  F. Statically assign the MAC address to the address table.
  G. Configure the switch to discover new MAC addresses after a set time of inactivity.
  A. Enable port security.
  C. Create the port as an access port.
  F. Statically assign the MAC address to the address table.
