WGU University WGU-SPF Online Practice Questions and Exam Preparation

WGU University WGU-SPF Online Questions & Answers

• Question 81:

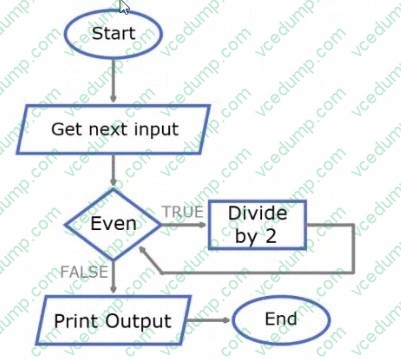

  An example of an behavioral diagram is shown.



  What is generally visualized with a behavioral diagram"?

  A. Quality control mechanisms
  B. Relative sizes of program components
  C. Operating system compatibility
  D. The dynamic flow of software
  D. The dynamic flow of software

  ---

  Behavioral diagrams are a key component in software engineering, particularly within the Unified Modeling Language (UML), which is used to model the dynamic aspects of systems. These diagrams help visualize the behavior of a system over time, including how it responds to various stimuli and the state changes it undergoes during its operation.

  The types of behavioral diagrams include:

  State Machine Diagrams: These show the state of a system or component at finite instances of time, focusing on state transitions in response to events. Activity Diagrams: These illustrate the flow of control in a system, modeling both sequential and concurrent activities.

  Use Case Diagrams: These depict the functionality of a system and its interaction with external agents.

  Sequence Diagrams: These detail the interactions between objects in a sequential order, showing the order of operations.

  Communication Diagrams: These show the sequenced messages exchanged between objects.

  In the context of the provided image, a behavioral diagram would generally be used to visualize option D, the dynamic flow of software, as it captures the interactions, events, and states that occur within a system during its execution12345.

  References:

  GeeksforGeeks provides a comprehensive overview of behavioral diagrams in UML1.

  Additional insights into behavioral models and their applications can be found in resources like Sparx Systems' Enterprise Architect User Guide3 and other educational platforms245.

• Question 82:

  What is the result of the following code? print(10 / 4)

  A. 2
  B. 2.5
  C. 2.0
  D. 2.25
  B. 2.5

  ---

  / performs floating-point division in Python.

• Question 83:

  Which data type is MOST appropriate for storing whether a user is logged in or not?

  A. Integer
  B. Float
  C. Boolean
  D. String
  C. Boolean

  ---

  A Boolean data type is designed to store one of two possible values: true or false. Whether a user is logged in or not is a condition that can be represented by only two states, making Boolean the most appropriate data type. Integers and floats are used for numeric values, and strings are used for text, none of which are suitable for representing a binary condition.

• Question 84:

  It is given that integer x = 41 and integer y = 16. What is the value of the expression (x % y)?

  A. -15
  B. -11
  C. -8
  D. 9
  D. 9

  ---

  The modulo operator (%) returns the remainder when the first operand is divided by the second. According to foundational programming principles (e.g., C and Python standards), for integers x and y, x % y computes the remainder of x / y.

  Given: x = 41, y = 16.

  Compute: 41 / 16 = 2 (quotient, ignoring decimal) with a remainder.

  16 x 2 = 32, and 41 - 32 = 9. Thus, 41 % 16 = 9.

  Option A: "-15." This is incorrect. The modulo operation with positive integers yields a non-negative result.

  Option B: "-11." This is incorrect. The result is positive and based on the remainder.

  Option C: "-8." This is incorrect. The remainder cannot be negative here.

  Option D: "9." This is correct, as calculated above.

  Certiport Scripting and Programming Foundations Study Guide (Section on Operators).

  C Programming Language Standard (ISO/IEC 9899:2011, Section on Multiplicative Operators).

  Python Documentation: "Modulo Operator" (https://docs.python.org/3/reference/expressions.html#binary- arithmetic-operations).

• Question 85:

  What is the primary purpose of a flowchart?

  A. To store program data
  B. To describe hardware configurations
  C. To visually represent the logic and flow of an algorithm
  D. To compile source code
  C. To visually represent the logic and flow of an algorithm

  ---

  A flowchart is a graphical representation of an algorithm or process. It uses standardized symbols to show the sequence of steps, decision points, and flow of control, making the logic easier to understand and analyze.

• Question 86:

  Which statement describes a compiled language?

  A. It runs one statement at a time by another program without the need for compilation.
  B. It is considered fairly safe because it forces the programmer to declare all variable types ahead of time and commit to those types during runtime.
  C. It can be run right away without converting the code into an executable file.
  D. It has code that is first converted to an executable file, and then run on a particular type of machine.
  D. It has code that is first converted to an executable file, and then run on a particular type of machine.

  ---

  A compiled language is one where the source code is translated into machine code, which is a set of instructions that the computer's processor can execute directly. This translation is done by a program called a compiler. Once the source code is compiled into an executable file, it can be run on the target machine without the need for the original source code or the compiler. This process differs from interpreted languages, where the code is executed one statement at a time by another program called an interpreter, and there is no intermediate executable file created. Option A describes an interpreted language, not a compiled one. Option B refers to type safety, which is a feature of some programming languages but is not specific to compiled languages. Option C describes a script or an interpreted language, which can be executed immediately by an interpreter without compilation. References: The characteristics of compiled languages are well-documented in computer science literature and online resources. For example, FreeCodeCamp provides an overview of the differences between compiled and interpreted languages1, and the CodeBoss blog offers insights into what a compiled language is and how it functions2. These sources confirm the explanation provided here and offer further reading on the subject.

• Question 87:

  A programmer receives requirements from customers and deciders 1o build a first version of a program.

  Which phase of an agile approach is being carried out when trio programmer starts writing the program's first version?

  A. Testing
  B. Implementation
  C. Analysis
  D. Design
  B. Implementation

  ---

  In the context of Agile software development, when a programmer begins writing the first version of a program after receiving requirements from customers, they are engaging in the Implementation phase. This phase is characterized by the actual coding or development of the software, where the focus is on turning the design and analysis work into a working product. It's a part of the iterative process where developers create, test, and refine the software in successive iterations. The Agile approach

  emphasizes incremental development and frequent feedback, with each iteration resulting in a potentially shippable product increment. The Implementation phase is where these increments are built, and it typically follows the Design phase, where the system's architecture and components are planned out.

  References: The information aligns with the key stages of the Agile Development Life Cycle, which includes the phases of Concept, Inception, Iteration (Implementation), Testing, Release, and Review.

• Question 88:

  Which control structure is BEST suited for repeating a set of instructions a known number of times?

  A. If statement
  B. While loop
  C. For loop
  D. Switch statement
  C. For loop

  ---

  A for loop is designed for situations where the number of iterations is known in advance, such as iterating through an array or repeating a calculation a fixed number of times. While loops are better suited when the number of iterations is unknown, and if or switch statements are used for decision-making rather than repetition.

• Question 89:

  What does the following algorithm determine?



  if x < 0 a = 1 else if x = 0 a = 2 else a = 3

  A. Whether x is even
  B. Whether x is evenly divisible by 2 or 3
  C. Whether x is odd
  D. Whether x r> negative. 0,
  D. Whether x r> negative. 0,

  ---

  The algorithm checks the value of x against zero and assigns a different value to a based on the result:

  If x < 0, then a = 1 - x is negative

  Else if x = 0, then a = 2 - x is zero

  Else, a = 3 - x is positive

  This logic classifies x by its sign, not by parity (even/odd) or divisibility.

• Question 90:

  Which snippet represents the loop variable update statement in the given code?



  A. Put h to output
  B. integer h = 2
  C. h = h + 2
  D. h < 30
  C. h = h + 2

  ---

  The loop variable update statement is the part of a loop that changes the loop variable's value at the end of each iteration. In the context of a for loop, it's typically the third component of the loop's header. Looking at the provided code snippet, option C, h = h + 2, is the statement that updates the loop variable h by incrementing it by 2 after each loop iteration. This is consistent with the standard behavior of a loop variable update statement in programming, where after executing the loop body, the loop control

  variable is updated based on the specified increment or decrement operation.

  References:

  Stack Overflow discussion on loop variable updates. GeeksforGeeks article on for loops in programming.

  freeCodeCamp guide on for loops in C.

  LaunchCode's breakdown of the for statement.
