Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 311:

  How are BGP routes grouped when being sent in an update message?

  A. by grouping aggregated address ranges together
  B. by using a complete set of matching attributes
  C. by the originating autonomous system
  D. by the originating router
  B. by using a complete set of matching attributes

• Question 312:

  You are troubleshooting a BGP-learned prefix that is not being installed in the routing table. Which command shows you the missing route?

  A. show route advertising-protocol bgp
  B. show route state
  C. show route hidden extensive
  D. show bgp summary
  C. show route hidden extensive

• Question 313:

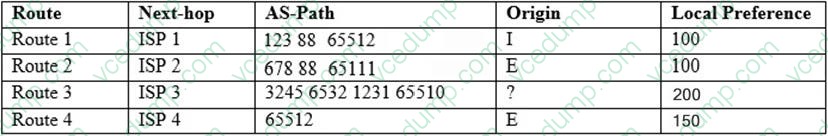

  Click the Exhibit.



  You are receiving the same route prefix from four EBGP neighbors. Based on the information provided in the exhibit, which route will be selected?

  A. Route 4
  B. Route 1
  C. Route 2
  D. Route 3
  D. Route 3

• Question 314:

  In an IS-IS network, Router A is the current DIS with a priority of 64. Router B comes online with a priority of 100. In this scenario, which statement is correct?

  A. Router A remains as the DIS.
  B. Router A remains the DIS and Router B becomes the backup DIS.
  C. Router B becomes the DIS.
  D. Router B becomes the DIS and router A becomes the backup DIS.
  C. Router B becomes the DIS.

• Question 315:

  You are using RSVP in your network to signal MPLS LSPs. You are asked to ensure that the egress MPLS router receives the full label stack, containing both the hop-by-hop and VPN label.

  A. Use the set protocols mpls explicit-null command.
  B. Use the set protocols mpls expand-loose-hop command.
  C. Use the set protocols rsvp keep-multiplier command.
  D. Apply set protocols rsvp interface no-aggregate to the egress interface.
  A. Use the set protocols mpls explicit-null command.

• Question 316:

  Which LSA packet types are originated only by an OSPF ABR router?

  A. Type 2 and Type 3
  B. Type 3 and Type 4
  C. Type 5 and Type 6
  D. Type 6 and Type 7
  B. Type 3 and Type 4

• Question 317:

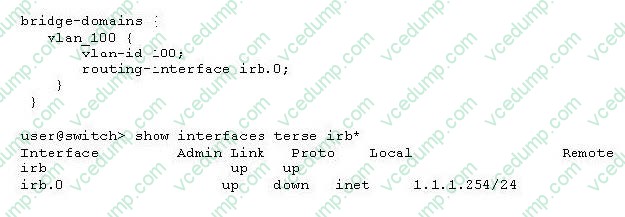

  Click the Exhibit button.



  Referring to the exhibit, what must be true of the vlan_100 bridge domain?

  A. vlan_100 has at least one Ethernet interface assigned to it.
  B. vlan_100 does not have an Ethernet interface assigned to it.
  C. vlan_100 might have an active Ethernet interface assigned to it.
  D. vlan_100 does not have an active Ethernet interface assigned to it.
  D. vlan_100 does not have an active Ethernet interface assigned to it.

• Question 318:

  You own a small company and need to assign IPv6 addresses to your routers. Because you want to follow the guidelines spelled out in RFC 3177, you want to design your network with the correct prefixes. Which prefix would your ISP likely allocate to your company?

  A. 47-bit prefix
  B. 48-bit prefix
  C. 64-bit prefix
  D. 128-bit prefix
  B. 48-bit prefix

• Question 319:

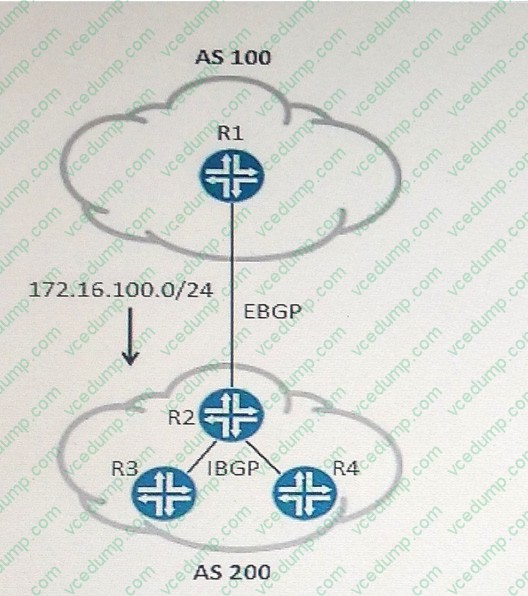

  Click the Exhibit button.



  In the exhibit, R1 is sending the 172.16.100.0/24 route to R2 through EBGP. R2 has IBGP sessions to R3 and R4, but they are not installing the route. All BGP sessions are established.

  Which two actions would enable R3 and R4 to install the route from R2? (Choose 2.)

  A. Advertise the R1-R2 link into the IGP.
  B. Configure the cluster-id parameter under the R2 IBGP group.
  C. Configure a BGP export policy with a next-hop self action on R2.
  D. Configure an IGP export policy with a next-hop self action on R2.
  A. Advertise the R1-R2 link into the IGP.
  C. Configure a BGP export policy with a next-hop self action on R2.

• Question 320:

  Which IS-IS PDU is used to request a retransmission of a missing link-state packet?

  A. the complete sequence number PDU
  B. the partial sequence number PDU
  C. a hello PDU with a request PDU TLV specifying the missing LSP
  D. a hello PDU with a refresh PDU TLV requesting all LSPs
  B. the partial sequence number PDU
