• Question 261:

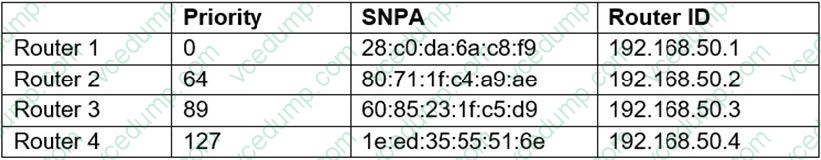

  Click the Exhibit.



  Referring to the exhibit, which IS-IS router will be selected as the DIS?

  A. Router 1
  B. Router 4
  C. Router 2
  D. Router 3
  B. Router 4

• Question 262:

  Your company has purchased two new Juniper Networks MX480 routers. Your manager has asked you to add these two devices to the existing ISIS network.

  Which two rules about ISIS adjacencies must you consider when carrying out the configuration? (Choose two)

  A. For Level 1 adjacencies, area IDs must be the same
  B. For Level 2 adjacencies area IDs must be the same
  C. The IS-IS levels configured on the interfaces must be the same
  D. The IS-IS levels on the interfaces can be different
  A. For Level 1 adjacencies, area IDs must be the same
  C. The IS-IS levels configured on the interfaces must be the same

• Question 263:

  What is the default interval for a VRRP advertisement?

  A. 1 second
  B. 2 seconds
  C. 10 seconds
  D. 30 seconds
  A. 1 second

• Question 264:

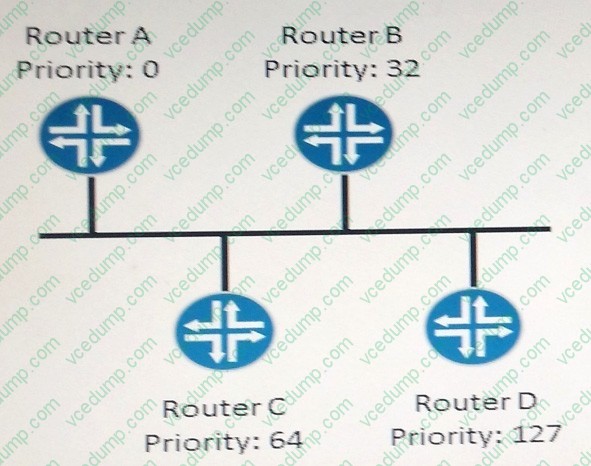

  Click the Exhibit button.



  Referring to the exhibit, four IS-IS routers have been deployed on a multi-access Ethernet segment. Router C came online first. After all routers are online, which two statements are true? (Choose two.)

  A. Adjacencies are only formed with designated intermediate system (DIS).
  B. Router D is the designated intermediate system (DIS).
  C. Adjacencies are formed between all four routers.
  D. Router C is the designated intermediate system (DIS).
  B. Router D is the designated intermediate system (DIS).
  C. Adjacencies are formed between all four routers.

• Question 265:

  You notice that the RID of your router is being taken from the address of your management interface.

  What could cause this scenario?

  A. The loopback address was configured with a /32 address.
  B. The loopback address was not configured under [edit protocols ospf].
  C. A suitable loopback address was not configured on the router.
  D. The loopback address was configured under [edit routing-options].
  C. A suitable loopback address was not configured on the router.

• Question 266:

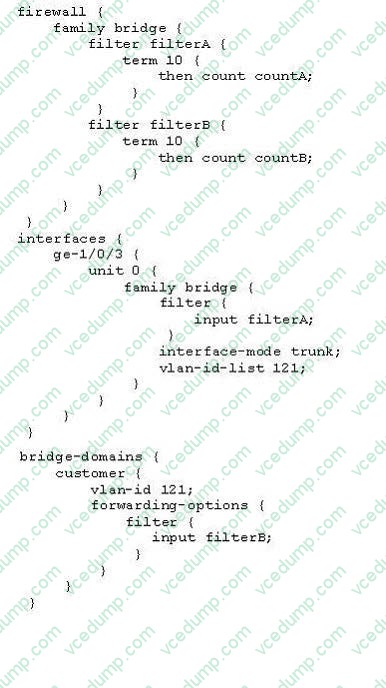

  Referring to the exhibit,



  Which firewall filter action(s) will be applied to incoming frames to ge-1/0/3?

  A. Frames will be counted initially by filterB and then counted by filterA.
  B. Frames will be counted initially by filterA and then counted by filterB.
  C. Frames will be counted by filterA only.
  D. Frames will be counted by filterB only.
  B. Frames will be counted initially by filterA and then counted by filterB.

• Question 267:

  By default, how often does a designated intermediate system (DIS) send IS-IS hello messages on a LAN?

  A. every 3 seconds
  B. every 9 seconds
  C. every 10 seconds
  D. every 30 seconds
  A. every 3 seconds

• Question 268:

  Which statement is true regarding default MPLS label handling?

  A. A router that pops a label from a label stack always pushes a new label on the packet
  B. A router that pops a label from a label stack forwards a frame based on the label that was popped.
  C. A router that pops a label from a label stack forwards a frame based on the underlying destination IP address.
  D. A router that pops a label from a label stack applies class of service based on the IP header to ToS bits.
  C. A router that pops a label from a label stack forwards a frame based on the underlying destination IP address.

• Question 269:

  Which routing table contains the route information for the user-defined routing instance called Candidate1?

  A. inet.Candidate1.0
  B. Candidate1.inet.0
  C. inet.0
  D. Candidate1-inet.0
  B. Candidate1.inet.0

• Question 270:

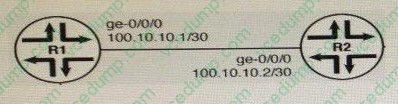

  Click the exhibit button.



  In the exhibit, which configuration is correct when setting up LDP for R1?

  A. set interfaces ge-0/0/0 unit 0 family mpls set protocols mpls interface ge-0/0/0.0
  B. set interfaces ge-0/0/0 unit 0 family mpls set protocols mpls interface ge-0/0/0.0 set protocols ldp interface ge-0/0/0.0
  C. set protocols mpls interface ge-0/0/0.0 set protocols ldp interface ge-0/0/0.0
  D. set interfaces ge-0/0/0 unit 0 family mpls set protocols ldp interface ge-0/0/0.0
  B. set interfaces ge-0/0/0 unit 0 family mpls set protocols mpls interface ge-0/0/0.0 set protocols ldp interface ge-0/0/0.0
