HP HPE6-A48 Online Questions & Answers

• Question 41:

  Refer to the exhibit.

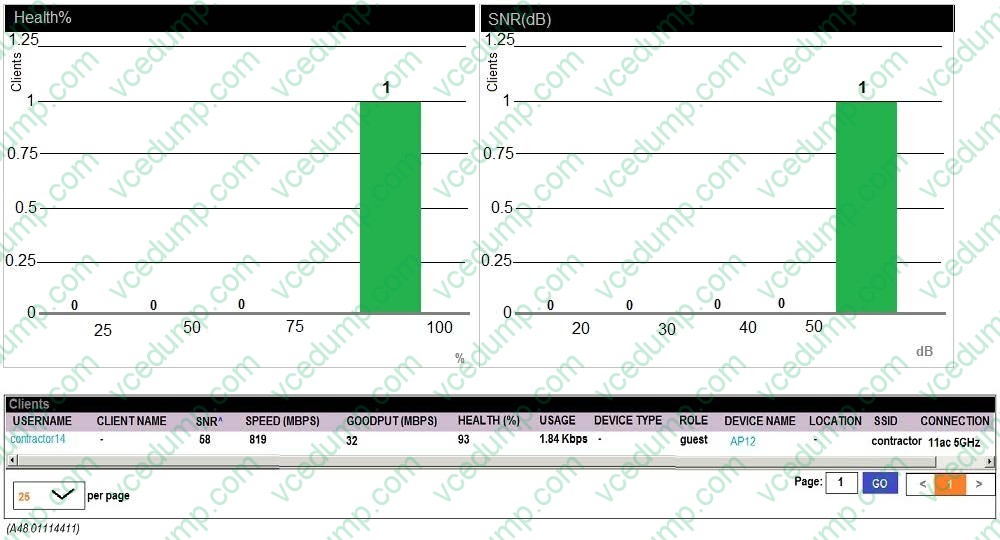

  A network administrator receives a call from a contractor that was recently given wireless access to the network. The user reports that the response time is slow and suggests there might be a problem with the WLAN. The network administrator checks RF performance in AirWave to find the user and sees the output shown in the exhibit.

  What can the network administrator conclude after analyzing the data?

  A. Client health and CNR are high, therefore, it is unlikely the client is experiencing an RF-related issue.
  B. Goodput is low in relation to connection speed, which suggests a channel with high utilization, another channel should be used.
  C. Client health and SNR are high but usage is low; therefore, there might be packet drops.
  D. Client health is low, which suggests that there are packet drops and collisions in the RF environment.
  B. Goodput is low in relation to connection speed, which suggests a channel with high utilization, another channel should be used.

• Question 42:

  Refer to the exhibit.

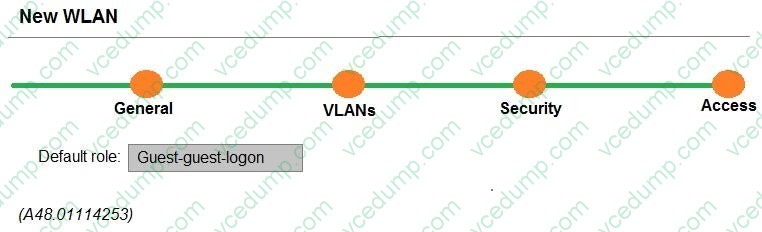

  A network administrator completes the task to cretae a WLAN, as shown in the exhibit. The network administrator selects the options to use guest as primary usage and Internal captive portal with authentication in the security step. Next, the network administrator creates a policy that denies access to the internal network.

  Which additional step must the network administrator complete in order to prevent authenticated users from reaching internal corporate resources while allowing Internet access?

  A. Apply the policy on the guest-guest-logon role.
  B. Apply the policy on the authenticated role.
  C. Apply the policy on the guest role.
  D. Create a policy that permits dhcp, dns, and http access.
  D. Create a policy that permits dhcp, dns, and http access.

• Question 43:

  Refer to the exhibit.

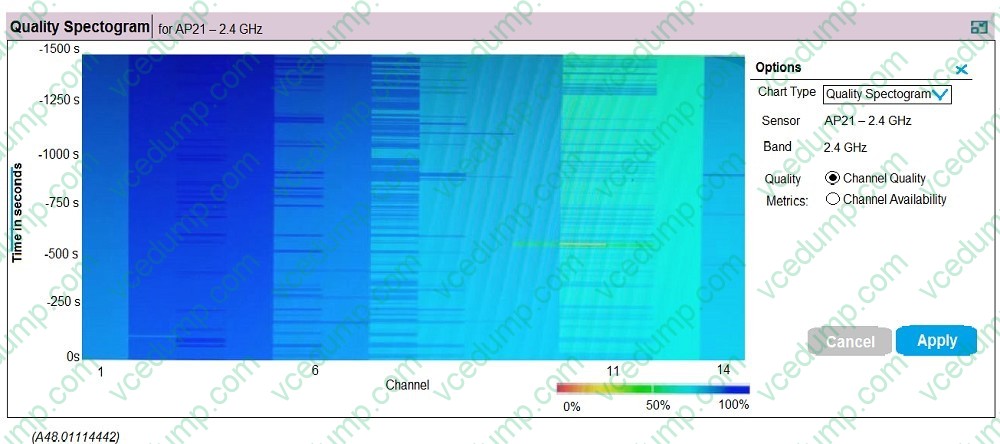

  Based on the output shown in the exhibit, which channel offers the highest quality?

  A. Channel 1
  B. Channel 6
  C. Channel 11
  D. Channel 14
  C. Channel 11

• Question 44:

  Refer to the exhibit.

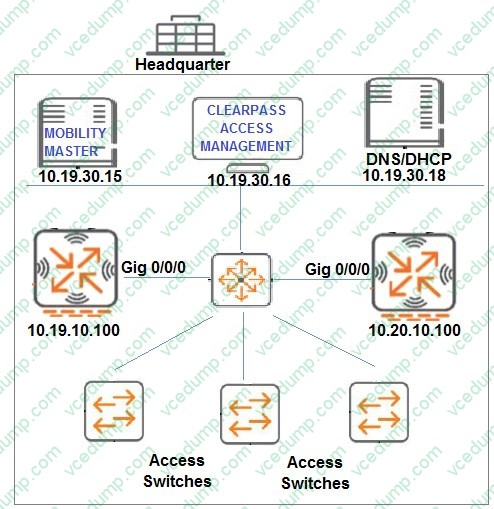

  A network administrator is in charge of a wired and wireless Aruba network where access control is needed for both connection methods. For the wired solution, the network administrator wants the users authentication to be performed at the switches, while tunneling their traffic to MC1 whenever possible for firewall policy enforcement. The network administrator configures and tests ClearPass as the RADIUS server in the switches.

  Which switch configuration scripts should the network administrator use next to achieve this goal?

  A. tunneled-node-server controller-ip 10.19.10.100 backup-controller-ip 10.20.10.100 mode role-based aaa authentication port-access eap-radius aaa port-access authenticator 1-22 aaa port-access authenticator active
  B. tunneled-node-server controller-ip 10.20.10.100 backup-controller-ip 10.19.10.100 mode port-based aaa authentication port-access eap-radius aaa port-access authenticator 1-22 aaa port-access authenticator active
  C. tunneled-node-server controller-ip 10.20.10.100 backup-controller-ip 10.19.10.100 aaa authentication port-access eap-radius aaa port-access authenticator 1-22 aaa port-access authenticator active
  D. tunneled-node-server controller-ip 10.19.10.100 backup-controller-ip 10.20.10.100 aaa authentication port-access eap-radius aaa port-access authenticator 1-22 aaa port-access authenticator active
  C. tunneled-node-server controller-ip 10.20.10.100 backup-controller-ip 10.19.10.100 aaa authentication port-access eap-radius aaa port-access authenticator 1-22 aaa port-access authenticator active

• Question 45:

  Refer to the exhibit.



  A network administrator deploys a Mobility Master (MM)-Mobility Controller (MC) solution in the headquarters. The network administrator prepares the wired side of the network with the proper VLAN, DHCP settings, and routing services to

  ensure that APs can reach the MCs.

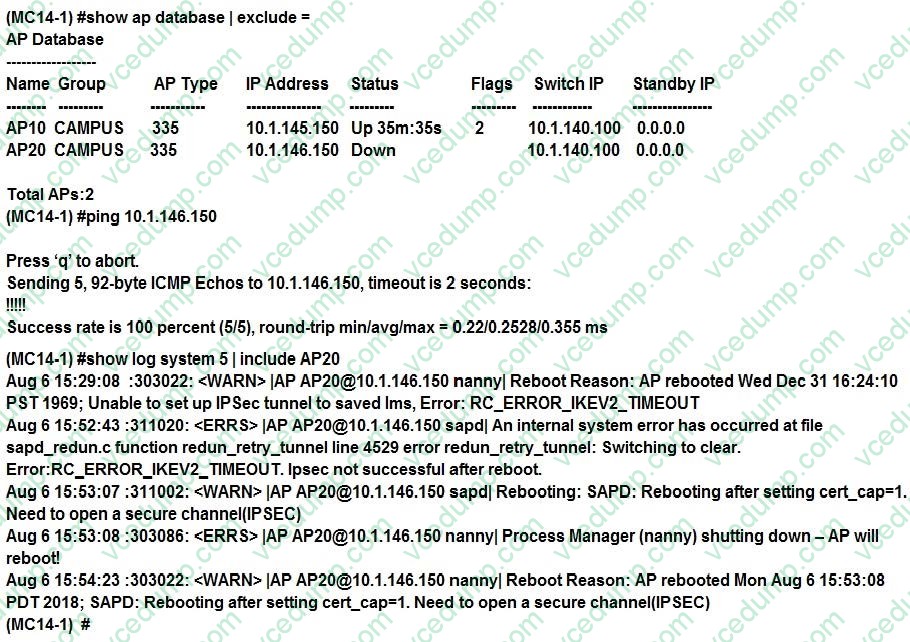

  The network administrator connects two APs in different IP segments and waits for 20 minutes, but SSIDs are advertised in one of the APs only. The engineer logs into the MC console and sees the output shown in the exhibit.

  What is the reason that the AP20 is not broadcasting SSIDs?

  A. IPSec traffic is being blocked.
  B. IKE traffic is being dropped.
  C. PAPI traffic is being blocked.
  D. GRE traffic is being blocked.
  B. IKE traffic is being dropped.

• Question 46:

  Refer to the exhibit.

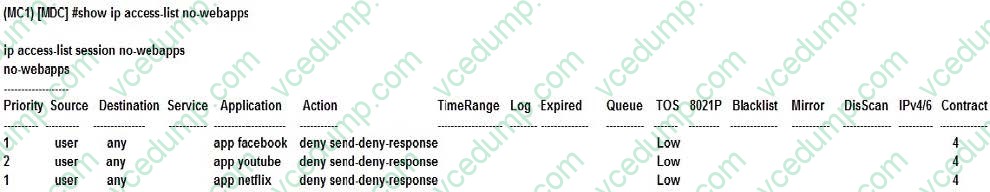

  A network administrator completes the initial configuration dialog of the Mobility Controllers (MCs) and they join the Mobility Master (MM) for the first time. After the MM-MC association process, the network administrator only creates AP groups, VAPs, and roles. Next, the network administrator proceeds with the configuration of the policies and creates the policy shown in the exhibit.

  Which additional steps must be done to make sure this configuration takes effecr over the contractor users?

  A. Apply the policy in the contractors user role. Enable deep packet inspection.
  B. Apply the policy in the contractors user role. Enable deep packet inspection. Reload the MCs.
  C. Enable the firewall visibility. Enable web-content classification Reload the MCs.
  D. Enable firewall visibility Enable web-content classification Reload the MMs.
  A. Apply the policy in the contractors user role. Enable deep packet inspection.

• Question 47:

  Refer to the exhibits. Exhibit 1



  Exhibit 2



  Exhibit 3

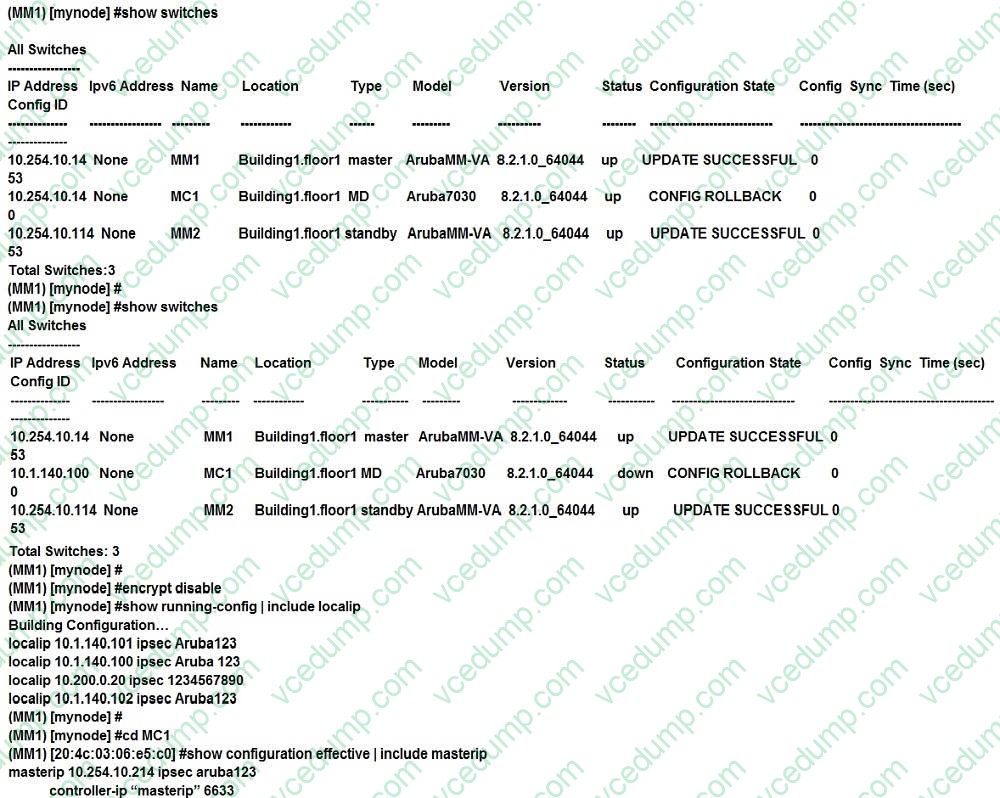

  A network administrator deploys a Mobility Master (MM) pair with the VRRP VIP equal to 10.254.10.214, and attempts to associate MC1 to it. At first, the integration appears to be successful. However after a few minutes the network

  administrator issues the show switches command and sees that the MC1 is down, even though the device is up and running.

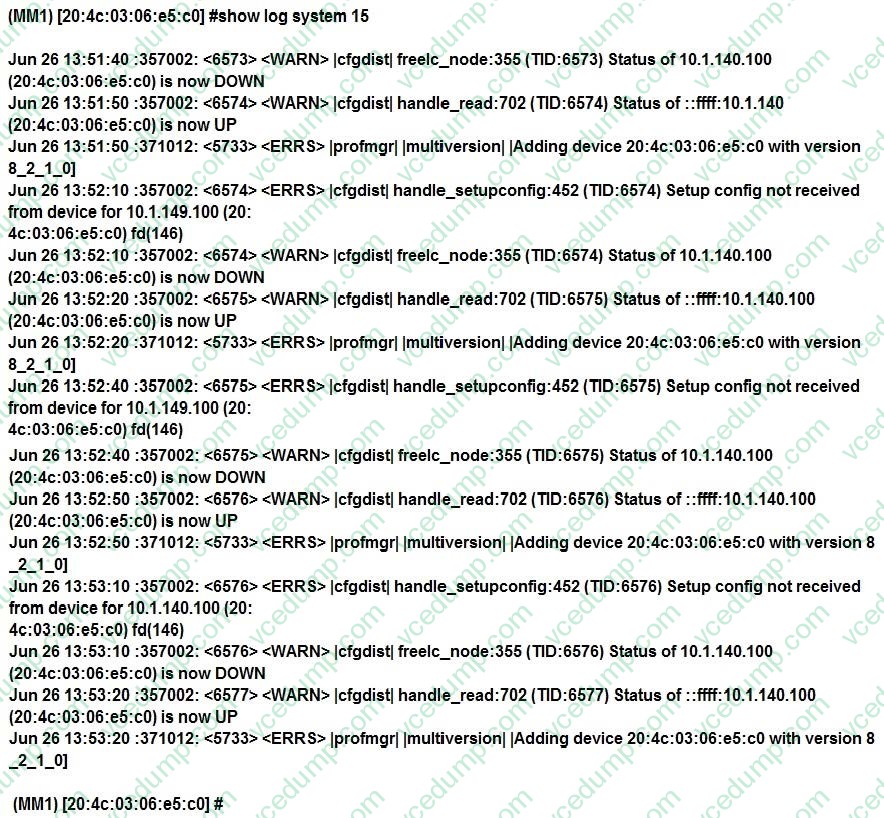

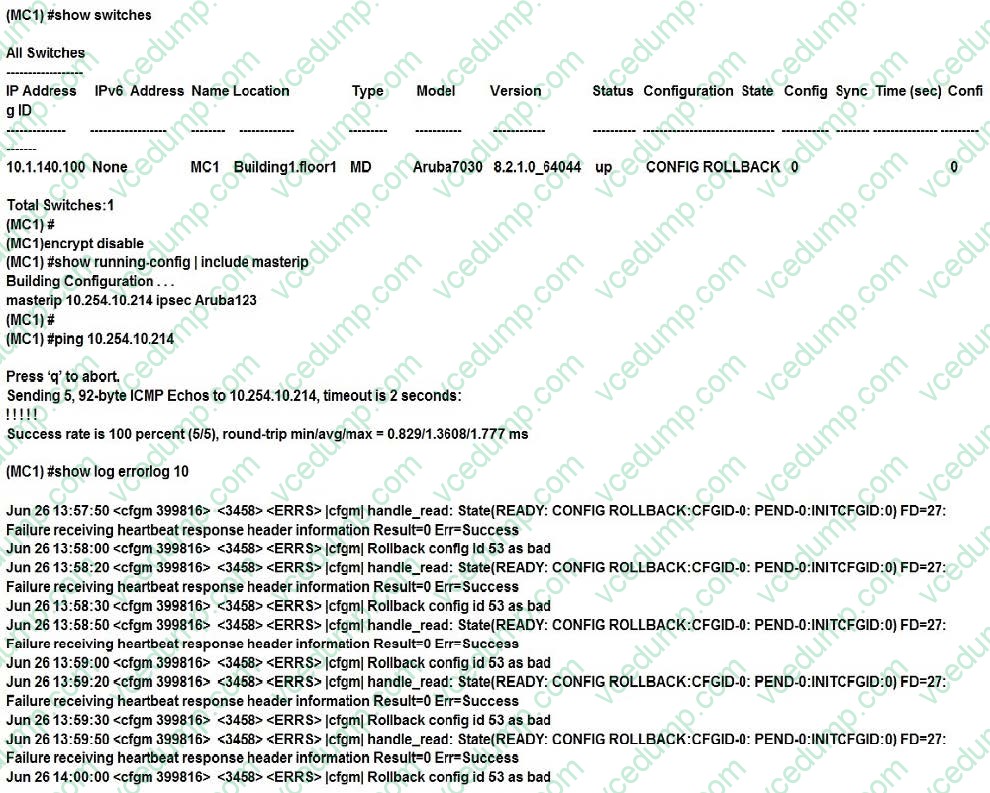

  Every time the network administrator reboots the Mobility Controller (MC), the MC shows as being up and then it shows as being down. The network administrator gathers the information shown in the exhibits.

  What should the network administrator do to resolve this problem?

  A. Change the localip ipsec key to Aruba123 in the mynode device level from the MM, save, and reboot.
  B. Enable disaster recovery mode in MC1 and change the masterip ipsec key to Aruba 123, save, and reboot.
  C. Change the masterip ipsec key to Aruba123 in the device level from the MM, save, then reboot MC1.
  D. Wipe out the configuration in MC1 and reboot, then run the full-setup configuration dialog all over again.
  B. Enable disaster recovery mode in MC1 and change the masterip ipsec key to Aruba 123, save, and reboot.

• Question 48:

  Refer to the exhibit.



  Help desk staff receive reports from users that there is inefficient wireless service in a location serviced by AP20, AP21, and AP22, and open a ticket. A few hours later, the users report that there is a drastic improvement in service. The staff

  still wants to determine the cause of the problem so the next day thay start monitoring the tasks.

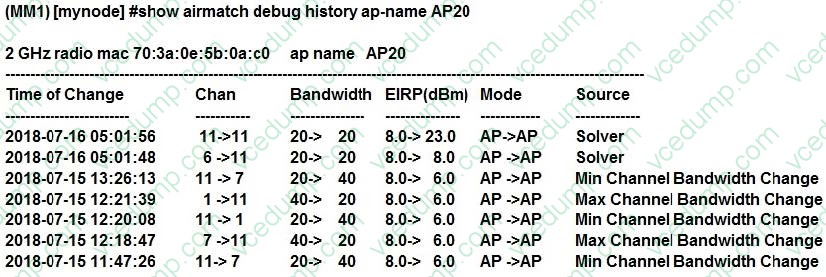

  They access the Mobility Master (MM), and obtain the output shown in the exhibit.

  What could be the cause of the problem that the users reported?

  A. AirMatch was running an initial incremental optimization.
  B. An operator used AirMatch to manually freeze AP channel and power.
  C. An operator manually assigned settings in the radio profile.
  D. AirMatch was running a full on-demand optimization.
  B. An operator used AirMatch to manually freeze AP channel and power.

• Question 49:

  Refer to the exhibit.



  A network engineer configures some VAPs in customer groups and creates a pool of licenses with enough units for seven APs. The network engineer deploys the first two APs, looks at the ap database, and notices the APs are inactive and experience licensing-related issues.

  Based on the show command outputs shown in the exhibit, what must the engineer do to solve the problem?

  A. Allocate two more MM-VA licenses to the pool.
  B. Allocate two more MC-VA-US licenses to the pool.
  C. Allocate seven more MM-VA licenses to the pool.
  D. Allocate seven more MC-VA-US licenses to the pool.
  A. Allocate two more MM-VA licenses to the pool.

• Question 50:

  Company 1 and Company 2 are medium-sized companies that collaborate in a joint venture. Each company owns a building, and each has their own ArubaOS 8 Mobility Master (MM)-Mobility Controller (MC) deployment. The buildings are

  located in front of one another. For the initial stage of the project, the companies want to interconnect their networks with fiber, and broadcast each other's SSIDs.

  These are the requirements:

  Do not unify the company's network management responsibilities.

  Allow each company to take care of their own SSID setups when broadcasted in the other building.

  Terminate Company 1 user traffic on Company 1 MCs when they connect to Company 2 APs.

  Terminate Company 2 user traffic on Company 2 MCs when they connect to Company 1 APs.

  What is needed to meet the solution requirements?

  A. Multizone APs
  B. Inter MC S2S Ipsec tunnels
  C. Multi MC Clusters
  D. Inter MC GRE tunnels
  B. Inter MC S2S Ipsec tunnels
