HP HPE6-A29 Online Questions & Answers

• Question 181:

  A client Roams from one Local controller-1 to another Local controller-2. The controllers are in different subnets and L3 Mobility is enabled. How is the client traffic sent back to Local-controller-1?

  A. IP-IP tunneled
  B. FTP
  C. Multicast
  D. L2 GRE Tunnel
  E. Routed locally
  D. L2 GRE Tunnel

• Question 182:

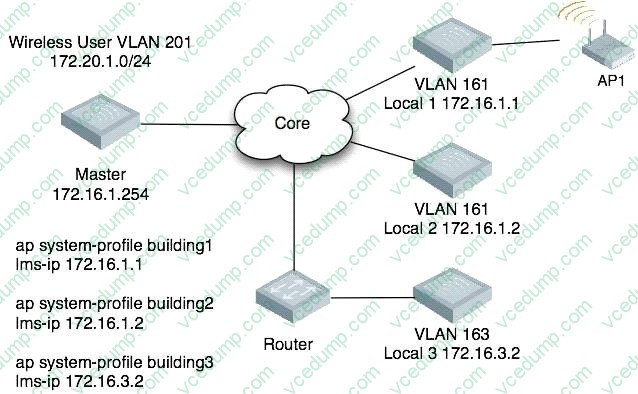

  The above diagram has one master and three local controllers. AP1 GRE terminates on controller Local 1. All controllers are configured with the wireless user VLAN 201. A wireless user associates with AP 1. Only L2 mobility is enabled. Which elements will know about this association?

  A. Local 1 only
  B. Local 1 and the Master
  C. Local 1 and Local 2 and the Master
  D. Local 1 and AP1
  E. All Controllers
  B. Local 1 and the Master

• Question 183:

  When deploying Remote Mesh Portals, what is one of the purposes of the Mesh Private VLAN?

  A. To separate wireless user traffic coming from mesh networks from non-mesh networks
  B. To tag mesh wireless user traffic on a particular AP
  C. To allow Mesh Points to form private vlan networks with certain users
  D. To tag control plane traffic from Mesh points to the controller
  D. To tag control plane traffic from Mesh points to the controller

• Question 184:

  What does an AP in Hybrid Spectrum mode do?

  A. Puts the selected band in spectrum mode and services clients on the other band.
  B. has all Aps in AP-group scan home channel and service clients.
  C. countries to serve clients as an AP while it scans and analyzes traffic
  D. makes the AP a spectrum monitor, but does not affect other Aps in the AP-group.
  B. has all Aps in AP-group scan home channel and service clients.

• Question 185:

  The Master fails with Central Licensing enabled. What happens to the local Controllers?

  A. Locals continue to operate for 1 day
  B. Locals operate for 30 days and accept new APs
  C. Locals continue to operate for 90 days and accepts new APs
  D. Locals can only use their originally installed Licenses
  E. Locals will operate with active APs but not will accept any other APs
  B. Locals operate for 30 days and accept new APs

• Question 186:

  Which statement is true about the Content Security License?

  A. Applied to the master controller
  B. Applied to all the controllers in the network
  C. It is based on number of users
  D. It is based on number of APs
  C. It is based on number of users

• Question 187:

  Examine the Aruba Mobility Controller configuration: Netdestination corp-net Network 10.0.0.0 255.0.0.0ip access-list session guest-users User host 10.0.1.1 svc-http permit User host 10.0.1.4 svc-dns permit Any alias corp-net deny User user any permit The company uses 10.0.0.0/8 for its internal IP addressing. Guest users are assigned IP addressing by the controller that uses the 192.168.1.0/24 subnet. This firewall policy is applied to the default role in the AAA profile for guest access. Which statement is correct in regards to what an authenticated guest or corporate employee user can access?

  A. Guest users can access any resource in the corporate network.
  B. Corporate employee can access the guest users.
  C. Guest users cannot access the internet
  D. Corporate users can access all resources in the network
  D. Corporate users can access all resources in the network

• Question 188:

  How is an AP redirected to a Local controller after DNS resolution returns the Master's IP address?

  A. Master looks at the AP-Group and CONTROLLER-IP attributes
  B. Master looks at the AP-Group and LMS-IP attributes
  C. In the AP-provisioning screen, the LMS-IP attribute must be set
  D. The AP must be statically configured to find the local controller
  E. In the AP-provisioning screen, set the CONTROLLER-IP attribute
  B. Master looks at the AP-Group and LMS-IP attributes

• Question 189:

  An administrator implements centralized licensing. The network uses a master-local deployment , with two master controllers for redundancy. There is a mixture of controller models that include 3600 series controllers with hardware licenses and 7x00 controllers. The two master controllers also serve as the centralized license servers.

  What is true about centralized licensing in this implementation?

  A. An AP can acquire licensing from a 7010 controller if both centralized license servers are not reachable.
  B. Hardware license on the 3600 controllers are not included in the license pool in a centralized license deployment.
  C. A master-local controller topology can use local controllers as the centralized licensing servers.
  D. Redundant centralized license deployment require that the high availability (HA) feature be used between the two license servers.
  A. An AP can acquire licensing from a 7010 controller if both centralized license servers are not reachable.

• Question 190:

  A campus AP has been provisioned with a VAP in bridge forwarding and standard operation modes. Which of the following authentication types are supported? (Choose two)

  A. 802.1X authentication
  B. Open System authentication
  C. Local authentication
  D. Captive portal authentication
  E. VPN authentication
  A. 802.1X authentication
  B. Open System authentication
