HP HP Certifications HPE6-A29 Questions & Answers

• Question 291:

  An administrator sets up Layer 3 roaming between controllers in a mobility domain. Which method is used to forward traffic from a foreign agent (FA) back to the user's home agent (HA)?

  A. GRE Tunneling

  B. PAPI Tunneling

  C. IPSec tunneling

  D. VLAN switching

  Correct Answer: C

• Question 292:

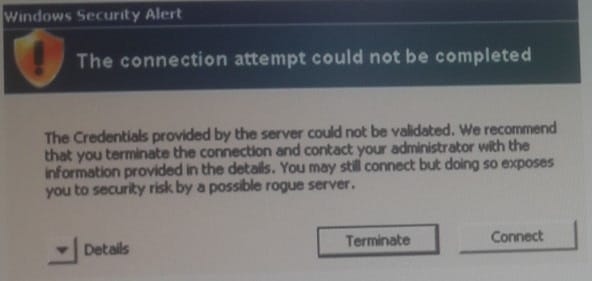

  An administrator implements a WLAN virtual AP (VAP) to authenticate employee access on Aruba Mobility Controller in a master-local topology. However, when testing wireless access from a Windows client the administrator sees the pop-up window show in the exhibit:



  What should the administrator do to solve this problem?

  A. Add a client certificate from the same CA used to obtain the controller's certificate on the Windows client.

  B. Add the root certificate for the corresponding controller identity certificate on the windows client.

  C. Configure the client's certificate as a trusted certificate on the Windows client.

  D. Define the controller's certificate as a trusted certificate on the windows client.

  Correct Answer: A

• Question 293:

  An administrator encounters a situation in which an email address is the only requirement of authentication for a user and the Aruba controller is configured for captive portal.

  What can the administrator conclude?

  A. The EAP method option is configured

  B. The enable termination option is configured

  C. The enable user logon option is configured

  D. The enable guest logon option is configured

  Correct Answer: D

• Question 294:

  What are the types of server derivation rules that can be applied to clients? (Select two)

  A. AP

  B. Role

  C. VLAN

  D. SSID

  E. MAC

  Correct Answer: BC

• Question 295:

  An administrator configures wired access control for Aruba Remote APs (RAPs) located in the company's branch offices with these specifications:

  Some RAP Ethernet ports are set up as trunk ports.

  The RAP Ethernet ports are connected to a user's phone, and the data port on the phone is connected to the user's PC.

  -The phone traffic is tagged and the PC traffic is untagged on these trunk ports.

  The administrator defines the Ethernet port as untrusted, but the phone VLAN as trusted

  The administrator defines a global AAA profile and an AAA profile for the phone traffic on the tagged

  VLAN.

  How do the RAPs process the phone traffic?

  A. Apply the AAA profile to the phone traffic

  B. Allow all the phone traffic

  C. Apply the global profile to the phone traffic

  D. Drop all the phone traffic

  Correct Answer: A

• Question 296:

  A network is configured with two local controllers in each area for redundancy VRRP is used as the redundancy protocol.

  In this situation, how do the Aps determine if an active VRRP controller has failed, thus initiating a reconnection to the virtual IP address?

  A. VRRP keepalives

  B. GRE keepalives

  C. PAPI keepalives

  D. IPSec keepalives

  Correct Answer: A

• Question 297:

  An administrator provisions a Remote AP (RAP) and plans to install it at a branch office. The administrator tries to determine which discovery method should be used for the RAP to discover and connect to the corporate office controller across the internet.

  Which method would cause the RAP to fail to discover and connect to the corporate office controller?

  A. DNS

  B. DHCP

  C. LMS IP address in the AP Group

  D. Aruba Discovery Protocol (ADP)

  Correct Answer: C

• Question 298:

  Which configuration item accepts named VLANs as a parameter? (Select three )

  A. RADIUS Server attributes for role derivation

  B. Authentication Server attributes for server derivation

  C. User Role for single VLAN

  D. Port trunk configuration

  E. Firewall session rule

  Correct Answer: ABC

• Question 299:

  With control Plane security (CPSec) enabled, Aruba Aps connect to controllers with which protocol?

  A. GRE

  B. HTTPs

  C. IPsec

  D. PPTP

  Correct Answer: C

• Question 300:

  In which mode must an Aruba AP be provisioned to implement WIPS?

  A. Mesh

  B. Split-Tunnel

  C. Air Monitor

  D. Spectrum

  Correct Answer: C
