HP HPE6-A29 Online Practice Questions and Exam Preparation

HP HPE6-A29 Online Questions & Answers

• Question 201:

  What additional fields must be configured in the configuration wizard if the controller role is selected as a local instead of a standalone controller?

  A. The Local's SNMPv3 user name and password
  B. The Master IP address
  C. The Local's loopback address
  D. The IPSec PSK for Master/Local communication
  B. The Master IP address
  D. The IPSec PSK for Master/Local communication

• Question 202:

  In an Aruba controller based system, the L3 mobility tunnel exists between the home agent and which other element?

  A. the default gateway
  B. the remote AP
  C. the foreign agent
  D. the mobile node
  E. the foreign switch
  C. the foreign agent

• Question 203:

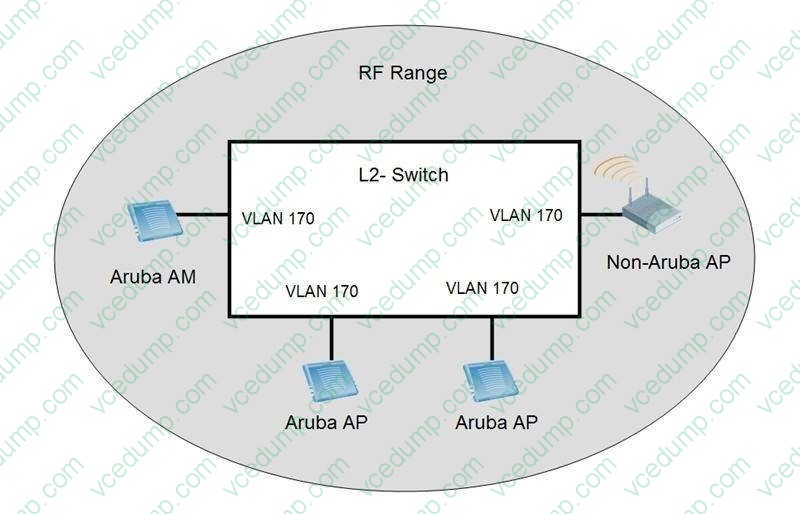

  Referring to the diagram provided for this question, an employee brought an unauthorized AP from home and attached the LAN port to the cubicle Ethernet port. All Aruba APs and AMs as well as the employee AP are in VLAN 170 and within RF range of each other.

  No traffic from the wired or wireless network has passed through the AP yet, but the AP began wireless broadcasts.



  How will the Aruba system first initially classify the employee's AP?

  A. a valid AP
  B. an AM
  C. a Rouge AP
  D. an interfering AP
  E. a known interfering AP
  D. an interfering AP

• Question 204:

  A Remote AP (RAP) can no longer reach the controller with PAPI. What is a result of this situation?

  A. The backup SSID will begin broadcasting
  B. An IPSec tunnel to the controller will be established.
  C. The RAP will reboot and establish itself as an IAP.
  D. The RAP will begin forwarding traffic in bridge mode.
  B. An IPSec tunnel to the controller will be established.

• Question 205:

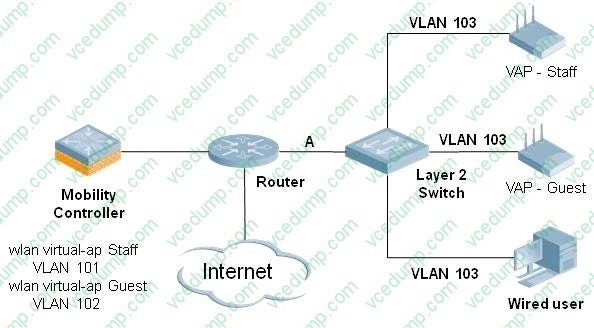

  In the above diagram, the system shows two Aruba access points and a wired user.

  Which VLAN(s) do NOT need to be configured on link A between the L2 switch and router to support the wireless users?

  A. 101 and 102
  B. 101 and 103
  C. 102 and 103
  D. only 101
  E. only 103
  A. 101 and 102

• Question 206:

  Where in the network can Aruba controllers be deployed?

  A. access
  B. distribution
  C. core
  D. all of the above
  D. all of the above

• Question 207:

  Which of the following are valid RAP operating modes?

  A. Always, Backup, Standard, Persistent
  B. Always, Backup, Tunnel, Persistent
  C. Always, Hotel-Connect, Tunnel, Standard
  D. Backup, Hotel-Connect, Standard, Persistent
  E. Backup, Normal, Tunnel, Always
  A. Always, Backup, Standard, Persistent

• Question 208:

  An administrator provides services to a university that has this environment:

  *

  There are two departments named Department 1 and Department 2.

  *

  Department 1 has its own mobility domain with one controller.

  *

  Department 2 has multiple controllers configured in a second domain.

  The president of the university has a goad to roll out a new application next semester. The president wants to five users of this application the ability to roam between both mobility domains.

  What should the administrator do to accomplish the president foal in the most effective manner?

  A. Create a new domain and active the new domain with the existing domain on the controllers.
  B. Combine the controllers into the same mobility domain.
  C. Configure all controllers IP subnets to ensure that they match.
  D. Add a new domain between a controller in Department 1 and a controller in Department 2.
  B. Combine the controllers into the same mobility domain.

• Question 209:

  Which actions does ARM (Adaptive Radio Management) perform? (Choose two)

  A. allows controllers to provision the AP Radio type
  B. allows controllers to provision the best channel for APs
  C. allows controllers to provision the best power setting for APs
  D. allows controllers to provision allowed Radio bands
  E. allows controllers to provision lower power when unauthorized APs are detected
  B. allows controllers to provision the best channel for APs
  C. allows controllers to provision the best power setting for APs

• Question 210:

  An administrator manages a network that uses windows computers. The administrator wants to perform both user and machine authentication and use an AAA RADIUS server to perform the authentication. The AAA server is also configured to pass back a user role that should be used by the Aruba Mobility Controller.

  What happens when user or machine authentication succeeds or fails in this situation?

  A. if user authentication fails and machine authentication succeeds. The machine authentication default user role is applied to the user's session.
  B. if both user and machine authentication succeed the server-derived role is applied to the user's session.
  C. if user authentication succeed and machine authentication fails, the server derived role is applied to the user's session.
  D. if both user and machine authentication fail, the machine authentication default machine role is applied to the user's session
  A. if user authentication fails and machine authentication succeeds. The machine authentication default user role is applied to the user's session.
