HP HP Certifications HPE6-A29 Questions & Answers

• Question 161:

  An AP125 has been provisioned as a Campus AP in the default AP group. It has booted but the radio lights are orange. What might be a cause of this? Select all that apply.

  A. The AP has booted successfully and is broadcasting wireless networks

  B. The VAP does not have a VLAN assigned to it

  C. The antenna gain parameters of the AP must be provisioned

  D. The default AP Group does not have any VAPs assigned to it

  Correct Answer: BD

• Question 162:

  What are the types of user derivation rules that can be applied to a user? (Choose two)

  A. SSID

  B. MAC

  C. VLAN

  D. Role

  E. AP

  Correct Answer: CD

• Question 163:



  Referring to the above screen capture, on which controller can you add an administrative user and assign a controller management role?

  A. Controller 10.1.10.100 only

  B. Controller 10.1.20.100 and 10.254.1.3 only

  C. All three Controllers

  D. must be done in the RADIUS server

  E. Controller 10.254.1.101 only

  Correct Answer: C

• Question 164:

  An Aruba based network has a Master and four local controllers deployed. But one of the locals, a new installation, is not seen by the Master. What might be wrong? (Choose two.)

  A. PAPI is not enabled on the local controller.

  B. The master controller can only support three local controllers.

  C. IPSec is blocked by the internal network between the local and the master controllers.

  D. The passphrase does not match on the master and local controllers.

  E. GRE is blocked between the master and local controllers.

  Correct Answer: CD

• Question 165:

  Which describe "roles" as used on Aruba Mobility Controllers? (Choose two)

  A. Roles are assigned to users.

  B. Roles are applied to interfaces.

  C. Policies are built from roles.

  D. A user can belong to only one role at a time.

  E. Roles are a set of authentication rules

  Correct Answer: AD

• Question 166:

  When configuring a server group containing 3 servers, a customer Chooses 'fail through mode'. What other configuration option has to be enabled on the controller for this to work with 802.1x authentication?

  A. Machine authentication

  B. EAP Termination

  C. Server group fall through mode

  D. MAC authentication

  E. Round robin or top down mode

  Correct Answer: B

• Question 167:

  The Aruba controller's Command Line Interface can be accessed from WITHIN the browser based Web User Interface using which method?

  A. It's not possible to access the CLI from within the WebUI

  B. Embedded Telnet client

  C. Java based SSH client

  D. Proprietary serial over Ethernet client

  Correct Answer: C

• Question 168:

  With CPSec enabled, which tunnel protocol is used between APs and Controllers in an Aruba environment?

  A. EAP

  B. SSH

  C. IPinIP

  D. Mobile IP

  E. IPSec

  Correct Answer: E

• Question 169:

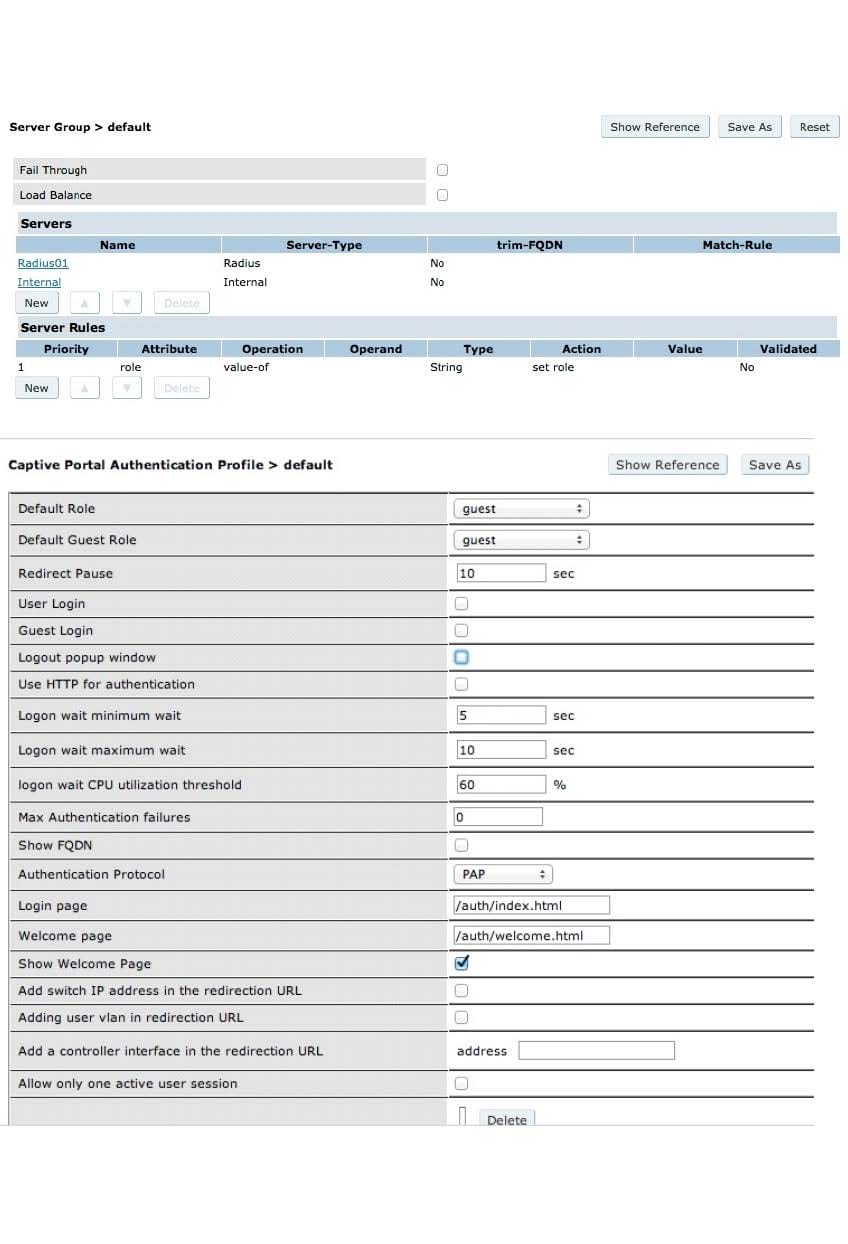

  Screenshots of the Captive Portal authentication profile and server group of a guest network are displayed above.

  How was the user authenticated?

  A. with a radius server called Radius01

  B. with the Internal database

  C. with a radius server called Internal

  D. with another form of authentication

  E. user wasn't authenticated against any server

  Correct Answer: E

• Question 170:

  An AP 105 was converted into a RAP. The RAP can authenticate its IPSec tunnel to a controller using which of the following methods? (Choose two.)

  A. 802.1X/EAP authentication

  B. Captive Portal authentication

  C. IP address authentication

  D. Username/Password authentication.

  E. Certificate/MAC address authentication.

  Correct Answer: DE
