HP HP0-S35 Online Practice Questions and Exam Preparation

HP HP0-S35 Online Questions & Answers

• Question 31:

  You set up an HP Integrity i2 blade running HP-UX for HP Insight Remote Support and want to test the solution. Which tool do you use to generate a test event?

  A. System Management Homepage
  B. System Fault Management
  C. WEBEM Provider
  D. Event Monitoring System
  C. WEBEM Provider

  ---

  4. Click Add Protocol, enter the name of the protocol and select the type as UNIX WBEM. Click Add New Protocol.

• Question 32:

  A customer bought a new HP BladeSystem c7000 enclosure with HP Flex-10 interconnect modules. Which HP BladeSystem installation and startup Service is needed to implement the network configuration of the HP Flex-10 modules?

  A. Network Infrastructure service
  B. Startup BladeSystem c-Class infrastructure service
  C. Enhanced Network service
  D. Enclosure Connectivity service
  C. Enhanced Network service

  ---

  Reference: http://h18004.www1.hp.com/products/quickspecs/13127_div/13127_div.pdf (page 13, Enhanced service)

• Question 33:

  Which statement is correct about using an ESD strap when replacing a memory DIMM?

  A. It prevents exposure to a potentially lethal amount of current
  B. It prevents electro-static discharge that could potentially damage electronics
  C. It prevents exposure to a lethal amount of voltage
  D. It is not needed because ESD cannot be felt.
  E. It is no longer needed since ESD protection is built into the equipment
  B. It prevents electro-static discharge that could potentially damage electronics

• Question 34:

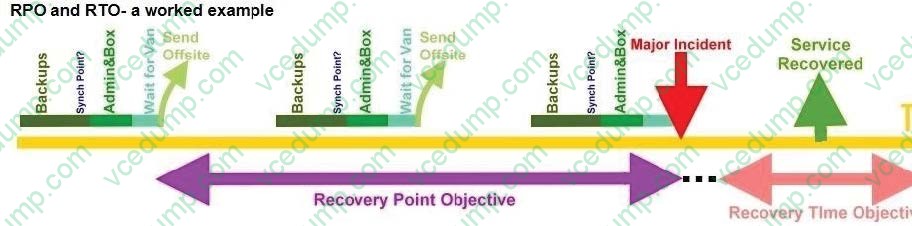

  Definition of RPO

  A. It is the maximum tolerable period in which data might be lost from an IT service due to a major incident
  B. Time it takes to recover data
  C. How much data can be lost
  A. It is the maximum tolerable period in which data might be lost from an IT service due to a major incident

  ---

  Recovery point objective http://en.wikipedia.org/wiki/Recovery_point_objective It is the maximum tolerable period in which data might be lost from an IT service due to a major incident.[1] The RPO gives systems designers a limit to work to. For instance, if the RPO is set to 4 hours, then in practice, offsite mirrored backups must be continuously maintained- a daily offsite backup on tape will not suffice.



• Question 35:

  You want to create a online spare of a Raid 1 what is needed in order to accommodate this?

  A. 2 extra disks
  B. P770 controller
  C. Smart Array advanced License
  D. ORCA
  C. Smart Array advanced License
  D. ORCA

  ---

  Poor question and answer set again HP..! Please try harder... http://h18004.www1.hp.com/products/quickspecs/13200_div/13200_div.pdf http:// h20000.www2.hp.com/bc/docs/support/SupportManual/c00729544/c00729544.pdf

  NOT A - Unless you are starting with a RAID 0 (Single Disk) and migrating to RAID 1 and then assigning a

  Spare.

  NOT B - HP does not have a P770 controller.

  MAYBE C - You do not need a SAAP license for a normal Spare... If 'Online Spare' IS NOT the same as a 'Spare'... Then do they mean RAID 1 ADM..?

  RAID 1 ADM RAID 1 ADM Advanced Data Mirroring allows customers to create mirrored RAID set using 3 identical hard drives. This provides customers with a 2nd "live spare" for RAID 1 (+0) configurations. This allows customers to rebuild

  a failed drive in a RAID 1 (*0> set without the array entering into a degraded state.

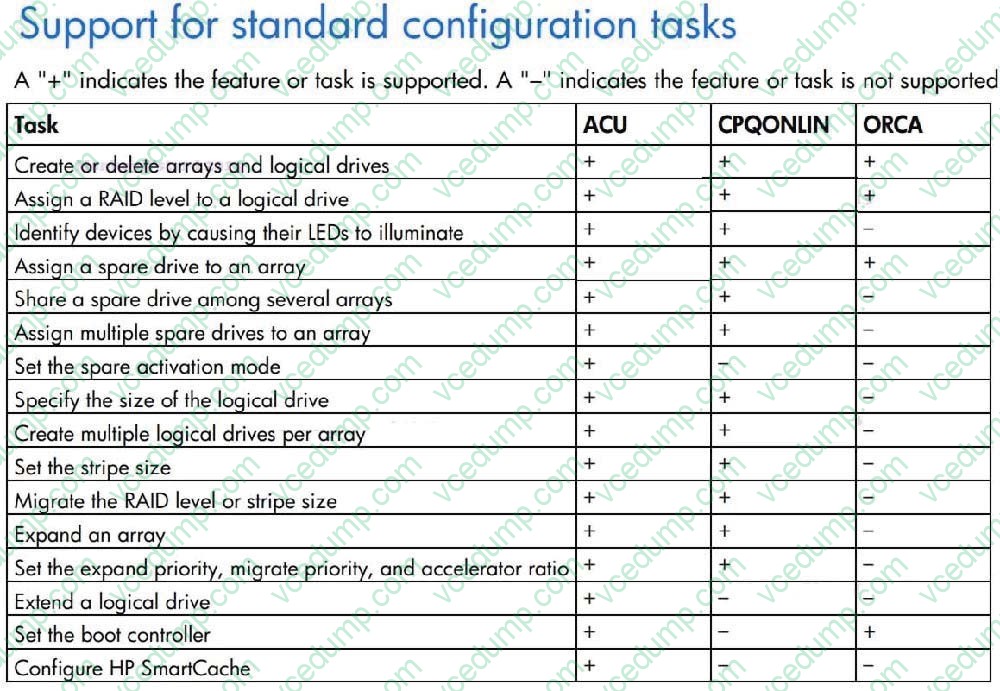

  MAYBE D - You can assign a Spare drive in ORCA but you cannot do any advanced configuration like RAID 1 ADM - this requires ACU...



  If 'ORCA' was replaced with 'ACU' in the question then it would all make sense...Typical HP trying to trick us... Use Smart Array Advanced License Start up in ORCA Create RAID1 ADM

• Question 36:

  Which settings can you configure using EBIPA? (Select two) A. serial number

  B. NIC teaming address
  C. gateway address
  D. DNS address
  E. enclosure name
  C. gateway address
  D. DNS address

• Question 37:

  A customer needs many HP BladeSustem servers equipped with additional server option Which HP service should be recommended?

  A. Factory Express
  B. Optimized Care
  C. Configure to Order
  D. Rapid Deployment
  C. Configure to Order

• Question 38:

  What color is the notation in Insight control if a Fan fails?

  A. Green
  B. Yellow
  C. Amber
  D. Red
  C. Amber

  ---

  http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01215727/c01215727.pdf

  Check the Insight Display screen o If the Insight Display background color is green, then the enclosure is operating normally and has no errors. No further action is required. o If the Insight Display background color is blue, then the enclosure UID is active. The enclosure UID color overrides the green or amber colors. When the Insight Display background color is blue, always check the health icon in the corner of the screen for the overall system health status. o If the Insight Display is dark, then press any Insight Display button to wake the display. If the Insight Display does not wake within 2 minutes after rebooting, see "Troubleshooting the Insight Display (on page 16)." o If the Insight Display background color is amber and the screen is flashing, then an error exists and further action is required. To view the suggested corrective action, select Fix on the Device Error screen.

• Question 39:

  Which services does HP offer to help you review current firmware levels and develop an appropriate management strategy? (Select two)

  A. HP BladeSystem Firmware and Driver Update Process Review
  B. HP Startup BladeSystem c-Class Enhanced Networks Service
  C. HP Startup BladeSystem c-Class Infrastructure Service
  D. HP BladeSystem Release Set
  E. HP BladeSystem Firmware and Driver Cap Analysis
  A. HP BladeSystem Firmware and Driver Update Process Review
  E. HP BladeSystem Firmware and Driver Cap Analysis

  ---

  http://h20000.www2.hp.com/bc/docs/support/SupportManual/c02225412/c02225412.pdf - Page HP Firmware Management Services overview HP firmware management tools and the HP CloudSystem Matrix Compatibility enable you to apply updates with minimal research or interaction.

  However, in many environments it is prudent to have an update strategy that considers the significance of the systems and applications, the company's preference for stability versus innovation, and the sensitivity to downtime. HP offers the following fee-based services to help you review the current firmware, software, and driver levels and develop an appropriate management strategy:

  HP BladeSystem Firmware and Driver Gap Analysis HP BladeSystem Firmware and Driver Update Process Review

• Question 40:

  In an HP ProLiant Gen8 server, which additional information does Agentless Management Service Provide to the iLO Management Engine?

  A. Memory
  B. CPU
  C. Temperature
  D. Power Supply
  C. Temperature
