Huawei H31-161 Online Practice Questions and Exam Preparation

Huawei H31-161 Online Questions & Answers

• Question 1:

  Winch functions docs the beater network NMS mainly provide?

  A. Monitoring network traffic
  B. Packet delay
  C. Monitoring device load(CPU and Memory)
  D. Switchover tune of a device's active/standby system
  C. Monitoring device load(CPU and Memory)

• Question 2:

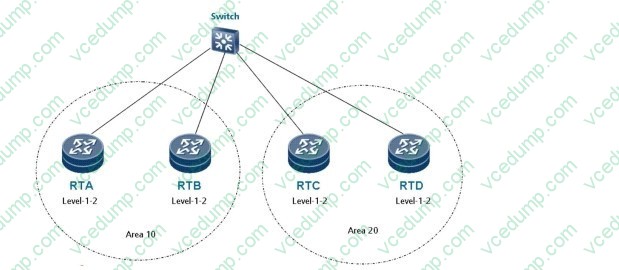

  Refer to the exhibit.



  As shown in the figure, RTA, RTB, RTC, and RTD are connected through a switch. From small to large in order of the MAC address, the four routers are arranged as follows:

  RTB, RTA, RTD, and RTC. The Level-2 DIS priority is set to 100 on RTB and RTD, and IS- IS BFD is enabled on all these routers. When the links of RTB are down, how should IS-IS BFD sessions be set up?

  A. Level 1 and level 2 IS-IS BFD sessions are set up among RTA, RTC, and RTD.
  B. Level 2 IS-IS BFD sessions are set up among RTA, RTC, and RTD, and a level 1 IS-IS BFD session is set up between RTC and RTD.
  C. Level 2 IS-IS BFD sessions are set up between RTD and RTA as well as between RTD and RTC, and a level 1 IS-IS BFD session is set up between RTC and RTD.
  D. Level 1 and level 2 IS-IS BFD sessions are set up only between RTC and RTD
  C. Level 2 IS-IS BFD sessions are set up between RTD and RTA as well as between RTD and RTC, and a level 1 IS-IS BFD session is set up between RTC and RTD.

• Question 3:

  # interface Ethernet6/1/1 ip address 40.1.1.4 255.255.255.0 igmp prompt-leaveigmp enable pim sm # IGMP interface group report information of VPN-Instance: public net Ethernet6/1/1(40.1.1.4): Total 1 IGMP Group reported Group: 224.1.2.3 Uptime: 00:00:32 Expires: 00:04:38 Last reporter: 30.1.1.30 Last-member-query-counter: 0 Last-member-query-timer-expiry: off Version1-host-present-timer-expiry: off The preceding information shows the configurations of Ethernet 6/1/1 and entries created based on received IGMPv2 Report messages. Which action does Ethernet 6/1/1 perform after receiving Leave messages for group 224.1.2.3?

  A. Sends group-specified query messages for group 224.1.2.3.
  B. Deletes the record of group 224.1.2.3.
  C. Both A and B are correct.
  D. Neither A nor B is correct.
  B. Deletes the record of group 224.1.2.3.

• Question 4:

  Which of the following statements about the working principle f LDAP FRR are true?

  A. After LDP FRR is enabled, a backup LSP is generated both the primary and backup LSPs are stored in the forwarding table.
  B. LDP TFRR can be deployed on the ingress node and the intermediate node. The primary and backup LSPas are recorded in the ILM table on the intermediate node and on the FIB table on the ingress node.
  C. After LDP FRR enable, a backup can degenerated for a primary LSP to prevent serious packet loss during fats flapping of the primary LSP.
  D. Multiple LSPs can be up on the ingress node, that is entries about multiple backup LSPs are generated in the forwarding table according to the priority of the FRR, implementing multi-layer protection.
  C. After LDP FRR enable, a backup can degenerated for a primary LSP to prevent serious packet loss during fats flapping of the primary LSP.

• Question 5:

  The secure sockets layer (SSL) protocol mainly provides confidentiality and reliability between communication applications. It is found at the transport layer and the application layer, and provides encrypted data transmission. Which of the following protocols are required for encrypted data transmission?

  A. Handshake protocol
  B. Tunnel protocol
  C. Record protocol
  D. Alarm protocol
  A. Handshake protocol
  C. Record protocol
  D. Alarm protocol

• Question 6:

  On the MPLS Layer 3 VPN, PE security is key to the safety of the entire network. Which of the following security measures can be deployed on PEs?

  A. PE-CE route protocol authentication
  B. VRF route capacity limitation
  C. uRPF
  D. Filter all CE packets that use the VRF interface address as the destination address based on the ACL rule.
  A. PE-CE route protocol authentication
  B. VRF route capacity limitation
  C. uRPF

• Question 7:

  Which statement describes the delay requirement of the voice service for the IP bearer network?

  A. Bearer network delay=50 ms, allowed maximum delay = 100 ms
  B. Bearer network delay=150 ms, allowed maximum delay = 200 ms
  C. Bearer network delay=10s, allowed maximum delay = 20s
  D. No strict requirement.
  A. Bearer network delay=50 ms, allowed maximum delay = 100 ms

• Question 8:

  An interface sends 300 Mbit/s user BE traffic. The downstream HQoS scheduling is configured at this interface as follows SQ: cir 15 Mbit/s pw 200 Mbit/s FQ. queue be Ipq shaping 10 CQ: port-queue be Ipq shaping shaping-percentage 10 outbound, port shaping 100 How much traffic is at the downstream outbound interface after HQoS scheduling?

  A. 20 Mbit/s
  B. 10 Mbit/s
  C. 200 Mbit/s
  D. 100 Mbit/s
  D. 100 Mbit/s

• Question 9:

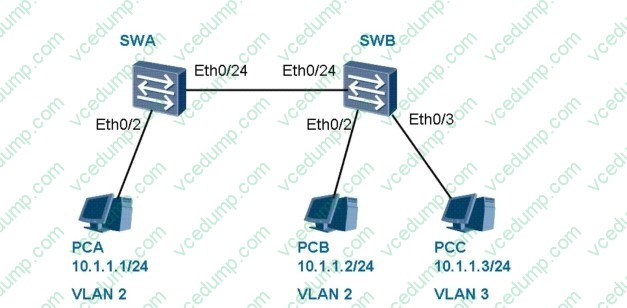

  As shown in the figure, for SWA, Eth0/2 belongs to VLAN 2, and Eth0/24 (PVID = 2) is a trunk interface and permits packets from VLAN 2 and VLAN 3 to pass through; for SWB, Eth0/2 belongs to VLAN 2, Eth0/3 belongs to VLAN 3, and Eth0/24 (PVID) is a trunk interface and permits packets from VLAN 2 and VLAN 3 to pass through. Which statement is true?



  A. PC A can ping both PC B and PC C.
  B. PC A can ping neither PC B nor PC C.
  C. PC A can ping PC B instead of PC C.
  D. PC A can ping PC C instead of PC B.
  D. PC A can ping PC C instead of PC B.

• Question 10:

  In PIM-SM, how does each router learn the location of the RP?

  A. The router of the RP multicasts RP set information to all PIM routers.
  B. The BSR multicasts RP set information hop by hop to all PIM routers.
  C. The candidate RP router unicasts RP information to the BSR.
  D. The BSR unicasts RP set information hop by hop to all routers
  B. The BSR multicasts RP set information hop by hop to all PIM routers.
  C. The candidate RP router unicasts RP information to the BSR.
