Huawei H31-161 Online Questions & Answers

• Question 171:

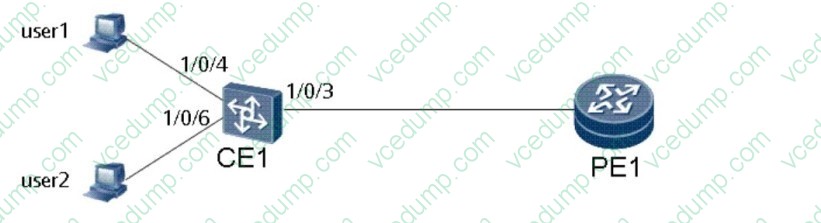

  As shown in the figure, CEs connect to users 1 and 2 through access interfaces or links. [Quidway-GigabitEthernet1/0/4]portswitch [Quidway-GigabitEthernet1/0/4]port link-type access [Quidway-GigabitEthernet1/0/4]port default vlan 1 [Quidway-GigabitEthernet1/0/6]portswitch [Quidway-GigabitEthernet1/0/6]port link-type access [Quidway-GigabitEthernet1/0/6]port default vlan 2 [Quidway-GigabitEthernet1/0/3]portswitch [Quidway-GigabitEthernet1/0/3]port link-type trunk [Quidway-GigabitEthernet1/0/3]port trunk permit-pass vlan 1 to 2 Users 1 and 2 require different network transmission quality. Which of the following methods are feasible to configure 802.1p priority 1 for packets of user 1 and 802.1p priority 2 for packets of user 2?



  A. On a PE, configure Dot1q tunnel interfaces and simple traffic classification (STC) for interfaces on the private network.
  B. On a PE, configure vlan-mapping and STC for interfaces on the private network for users 1 and 2.
  C. On a PE, configure vlan-stacking and STC for interfaces on the private network for users 1 and 2.
  D. On a CE, configure STC for user VLANs on the user access side.
  B. On a PE, configure vlan-mapping and STC for interfaces on the private network for users 1 and 2.
  C. On a PE, configure vlan-stacking and STC for interfaces on the private network for users 1 and 2.

• Question 172:

  A PW is found Down after VPLS is configured on an NE series router. What are possible causes?

  A. The AC encapsulation types configured on the local and peer PEs are different.
  B. The MTUs configured on the local and peer PEs are different.
  C. Some AC links in the VSI to which the PW belongs are Down.
  D. The local PE learns MAC addresses in Unqualified mode, whereas the peer PE learns MAC addresses in Qualified mode.
  E. The PEs at both ends of a PW tunnel are not configured with the tunnel type specified in the tunnel policy
  A. The AC encapsulation types configured on the local and peer PEs are different.
  B. The MTUs configured on the local and peer PEs are different.
  D. The local PE learns MAC addresses in Unqualified mode, whereas the peer PE learns MAC addresses in Qualified mode.
  E. The PEs at both ends of a PW tunnel are not configured with the tunnel type specified in the tunnel policy

• Question 173:

  Exhibit.

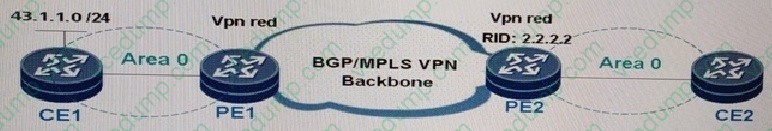

  As shown in the figure, OSPF process 100 runs on both PEs and CEs, and VPN routers are transmitted between PE 1 and PE 2 through PGB CE 1 enables interface address 43.1.1.0/24 in area 0.A route to 43.1.10/24. However, does not exist in the routing table of CE 2. What are the possible causes?

  A. The VPN route to 43.1.1.0/24 does not exist in the routing table of PE 2.
  B. The LSDB of PE 1 does not have the type 1 LSA generated by CE 1.
  C. The LSDB of PE 12 does not have the type 1 LSA generated by CE 1.
  D. The public network rout to 43.1.1.0/24 does not exist in the routing table of PE2 .
  B. The LSDB of PE 1 does not have the type 1 LSA generated by CE 1.
  D. The public network rout to 43.1.1.0/24 does not exist in the routing table of PE2 .

• Question 174:

  In MPLS QoS , traffic policies are developed on simple traffic classified and complex traffic classification policies based on simple traffic classification the service class color, and drop priority of packet are reset based on the packet in the traffic policies on complex traffic classification measures such as traffic classification is applied on border routers in Different domain, and traffic classification core routers. QoS policies are configured by performing the following operations:

  Defines DiffSer domain and configuring a traffic policy. Classification traffic Defines traffic behavior and configures characteristics of behaviors. Defines a traffic policy and specifies for traffic categories Applies the traffic policy Configure L-LSP Configures reserve address checks Adds interface to the DiffSer domain

  Which of the proceeding operations are required when you configured simple traffic classification?

  A. 1 6 8
  B. 2 3 4 8
  C. 1 5 6
  D. 2 4 5 7
  B. 2 3 4 8

• Question 175:

  On the IP bearer network, which of the following methods can be used to manage devices on the backbone network and switches on the signaling VPN?

  A. Construct an outband NM network to manage all devices.
  B. Leak public and private network routes to manage devices on the public and private networks.
  C. Establish two physical or logical links with the PE to manage devices on the public and private networks. One link belongs to the public network and the other belongs to the private network.
  D. Establish a physical or logical link with the PE and mount MCEs to the PE to manage devices on the public and private networks.
  A. Construct an outband NM network to manage all devices.
  B. Leak public and private network routes to manage devices on the public and private networks.
  C. Establish two physical or logical links with the PE to manage devices on the public and private networks. One link belongs to the public network and the other belongs to the private network.

• Question 176:

  Which feature can make OSPF (or IS-IS) advertise MPLS TE tunnels as links?

  A. IGP Shortcut
  B. FA
  C. FRR
  D. SRLG
  B. FA

• Question 177:

  Refer to the exhibit



  .

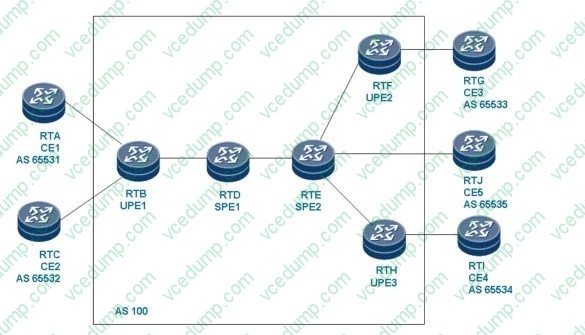

  As shown in the figure, basic BGP/MPLS IP VPN configuration has been completed on routers. Which of the following configurations is incorrect for advertising default routes in VPN instances on the SPE?

  Note: All configurations are performed on the SPE.

  A. Run the peer 2.2.2.2 enable command in the BGP-VPNv4 subsequent address family view to enable the peer to exchange BGP-VPNv4 routing information.
  B. Run the peer 2.2.2.2 upe command in the BGP-VPNv4 subsequent address family view to designate the peer as a UPE of the SPE.
  C. Run the peer default-originate vpn-instance command in the BGP-VPNv4 subsequent address family view.
  D. Configure the default-route imported command in the BGP-VPN instance view without importing default IGP routes, and then configure the peer default-originate vpn-instance command in the BGP-VPNv4 address family view.
  E. Configure the peer default-originate vpn-instance command in the BGP-VPNv4 address family view, and then configure the default-route imported command in the BGP-VPN instance view.
  D. Configure the default-route imported command in the BGP-VPN instance view without importing default IGP routes, and then configure the peer default-originate vpn-instance command in the BGP-VPNv4 address family view.

• Question 178:

  Exhibit.

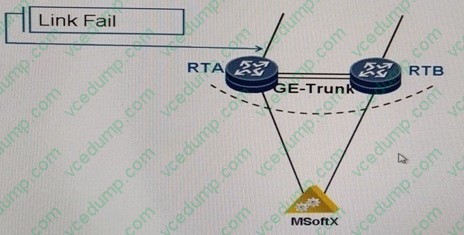

  The figure shows the typically mode in which a common softswitch access the bearer network. VRRP is enabled on RTA and RTB. In normal cases, RTA is the VRRP master router and RTB is the VRRP is the VRRP salve router. The ETH_trunk is enabled between RTA RTB. IF VRRP is not bounded to BFD and each [parameter uses their default settings, which statement is the true when the upstream link of RTA is faulty?

  A. RTB cannot receive the heartbeat packet from RTA, and both routers become master routers.
  B. The VRRP status remain unchanged but the downstream traffic is directly forwarded from RTB to the MSoftx.
  C. The ARRP status remain unchanged but the downstream traffic is forwarded from RTB to the MSoft through RTA
  D. The ARRP status immediately between RTA and RTB and RTB, and RTB becomes the master router.
  C. The ARRP status remain unchanged but the downstream traffic is forwarded from RTB to the MSoft through RTA

• Question 179:

  Which statement about MPLS Echo packets is true?

  A. The MPLS Echo request is an ICMP packet.
  B. The MPLS Echo request is a UDP packet.
  C. The type value of the MPLS Echo request packet is 0.
  D. The type value of the MPLS Echo reply packet is 8
  B. The MPLS Echo request is a UDP packet.

• Question 180:

  According to the inter-AS VPN Option A, which protocol is used to forward traffic between ASBRs?

  A. MPLS
  B. IP
  C. A or B
  D. None of the above
  B. IP
