Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 561:

  .ip route-static 10.0.12.0 255.255.255.0 192.168.11 The correct description for this command is ().

  A. This command configures a route to the 192.168.1.1 network.
  B. This command configures a route to the 10.0.12.0 network.
  C. The priority of this route is 100.
  D. If the router learns the route of the same network as this route through other protocols, the router will prefer this route.
  B. This command configures a route to the 10.0.12.0 network.

• Question 562:

  Under the RIP process of the Huawei device, when the network 10.1.1.1/30 is announced, the following configuration is correct (). (multiple choice)

  A. network 10.1.1.0
  B. undo summary network 10.1.1.0
  C. Version 2 summary network 10.0.0.0
  D. undo summary network 10.1.0.0
  E. network 10.0.0.0
  C. Version 2 summary network 10.0.0.0
  E. network 10.0.0.0

• Question 563:

  When R2 forwards data to R3 from R1, which of the following items will change? (Choose two)

  A. The source MAC address
  B. The destination MAC address
  C. The source IP address
  D. The destination IP address
  A. The source MAC address
  B. The destination MAC address

• Question 564:

  During PPP link setup, which of the following phases can be directly converted from the Dead phase?

  A. Terminate
  B. Authenticate
  C. Establish
  D. Network
  A. Terminate

• Question 565:

  system-view [Huawei] user-interface console 0 [Huawei-ui-console0] user privilege level 15 [Huawei-ui-console0] authentication-mode password [Huawei-ui-console0] set authentication password cipher huawei2012 [Huawei-ui-console0] quit

  Refer to the configuration output. The administrator configured the device using the commands in the configuration output. Regarding these commands, which statement is false?

  A. The administrator wishes to enable management through the console interface.
  B. Following configuration, the administrator cannot manage the device remotely.
  C. A user that logs-in through the console interface is assigned the highest privilege level.
  D. The password of a user logged in through console is `cipher huawei2012'
  D. The password of a user logged in through console is `cipher huawei2012'

• Question 566:

  As shown in the figure, STP is disabled on both switches. Host A sends an ARP Request, and the following description is correct (). (multiple choice)



  A. These two switches can achieve load balancing
  B. The CPU usage of these two switches will be very high.
  C. The MAC address table of the two switches will frequently jitter
  D. Repeated frames will appear in this network
  B. The CPU usage of these two switches will be very high.
  C. The MAC address table of the two switches will frequently jitter
  D. Repeated frames will appear in this network

• Question 567:

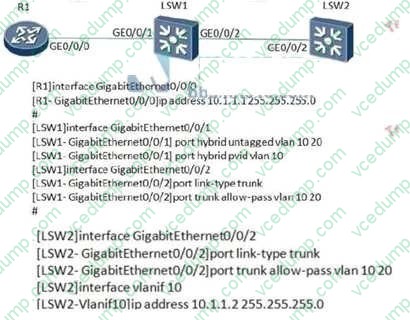

  As shown in the figure, if the command ping 10.1.1.2 is executed on R1, LSW1 receives the data frame from VLAN 10 of LSW2. Signed.



  A. Correct
  B. Error
  A. Correct

• Question 568:

  Which of the following OSPF versions is for IPv6?

  A. OSPFv1
  B. OSPFv2
  C. OSPFv3
  D. OSPFv4
  C. OSPFv3

• Question 569:

  The IPv6 address achitecture does not include which of the following address types?

  A. unicast
  B. multicast
  C. broadcast
  D. anycast
  C. broadcast

• Question 570:

  On a multi-access network such as Ethernet, the PPPoE server can establish PPP with many PPPoE clients through an Ethernet port.

  Connection, so the server must establish a unique session identifier for each PPP session to distinguish between different connections. What parameters will PPPoE use? Create a session identifier?

  A. MAC address
  B. IP address and MAC address
  C. MAC address and PPP-ID
  D. MAC address and Session-ID
  D. MAC address and Session-ID
