Riverbed 830-01 Online Practice Questions and Exam Preparation

Riverbed 830-01 Online Questions & Answers

• Question 111:

  What type of problem does the error message below indicate:

  Sep 7 22:53:50 SH pm[18184]: [pm.NOTICE]: Output from sport:

  /opt/rbt/bin/sport (pid 27529) received signal 12 (SIGUSR2) marking bit

  A. It is not a problem. The message is displayed when a system dump is generated.
  B. The management process crashed
  C. The optimization process crashed
  D. The management process received permission to apply QoS marking
  E. The sport process received permission to apply QoS marking
  A. It is not a problem. The message is displayed when a system dump is generated.

• Question 112:

  SteelHead SaaS is configured using the default redirection port. Which statement correctly describes the configuration that must be applied to a firewall at the branch location?

  A. Allow UDP 9545 from/to In-path interfaces
  B. Allow 443 traffic from/to Primary interface
  C. Allow TCP 9545 from/to In-path interfaces
  D. Allow TCP 9545 from/to Primary interfaces
  A. Allow UDP 9545 from/to In-path interfaces

• Question 113:

  What is the command to view configuration files on the CLI?

  A. configuration files display
  B. configuration files view
  C. configuration files show
  D. show configuration files
  E. show configuration files all
  D. show configuration files

• Question 114:

  Which of the following commands would allow you to generate a system dump from the CLI?

  A. sysdump
  B. dump generate
  C. debug generate dump
  D. sysdump generate dump
  E. dump generate -w filename
  C. debug generate dump

• Question 115:

  What should you do when you receive the following message? [intercept.NOTICE] sending kickoff RST: 10.35.178.41:1169 -> 10.110.141.30:1031.

  A. Nothing. This is just a notice message.
  B. Verify whether the "Reset Existing Client Connections on Start Up" option is checked and uncheck it
  C. Switch off the Steelhead appliance
  D. Create a specific pass-through rule to bypass the above source and destination hosts
  E. Restart the Steelhead appliance
  B. Verify whether the "Reset Existing Client Connections on Start Up" option is checked and uncheck it

• Question 116:

  The Interceptor appliance cluster can support how many optimized connections?

  A. 50,000
  B. 100,000
  C. 200,000
  D. More than 200,000
  D. More than 200,000

• Question 117:

  What probe is being used in the inner channel between two Steelhead appliances when using Full Transparency in hex?

  A. 0x4e
  B. 0x4d
  C. 0x4c
  D. 0x4b
  E. No probe is used
  A. 0x4e

• Question 118:

  A data center location has three Steelhead appliances and one Interceptor appliance clustered together. If Steelheads A and B are unable to handle the new web traffic on port 80, the administrator does not want the connection to be serviced

  by Steelhead C. Given the current rules, we want to prevent traffic from redirecting to Steelhead C.

  Current Rules:

  Rule 1: Redirect rule for ports 445, 139, 80, target SH A Rule 2: Redirect rule for ports 8080, 80, target SH B Auto (default rule)

  Which rule should be added on the Interceptor to achieve desired functionality?

  A. A new rule 1 for ports 80 for Steelhead A and B
  B. New rule 3: Pass-through rule for port 80
  C. Rule 3: Redirect for port 80 to Steelhead C
  D. No new rule needed for the administrator's policy
  E. New rule 1: Pass-through rule for port 80
  B. New rule 3: Pass-through rule for port 80

• Question 119:

  What methods can the CMC appliance use to provide notification of CMC system events? (Select 3)

  A. Email
  B. RADIUS
  C. SNMP traps
  D. Syslog
  A. Email
  C. SNMP traps
  D. Syslog

• Question 120:

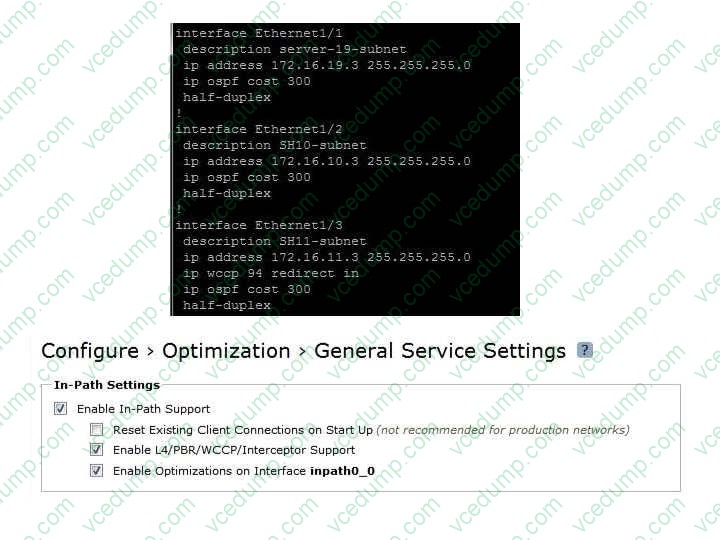

  -- Exhibit



  -- Exhibit -Refer to the exhibit. In a WCCP environment with R3, SH10 and SH11, it was observed that the returning traffic from Server2 is not being optimized by the Steelhead appliances. Why? (Select 2)

  A. The router is not properly configured.
  B. Physical in-path mode should be enabled.
  C. The wccp redirect command is missing.
  D. You should disable logical in-path.
  A. The router is not properly configured.
  C. The wccp redirect command is missing.
