Riverbed 830-01 Online Practice Questions and Exam Preparation

Riverbed 830-01 Online Questions & Answers

• Question 11:

  -- Exhibit

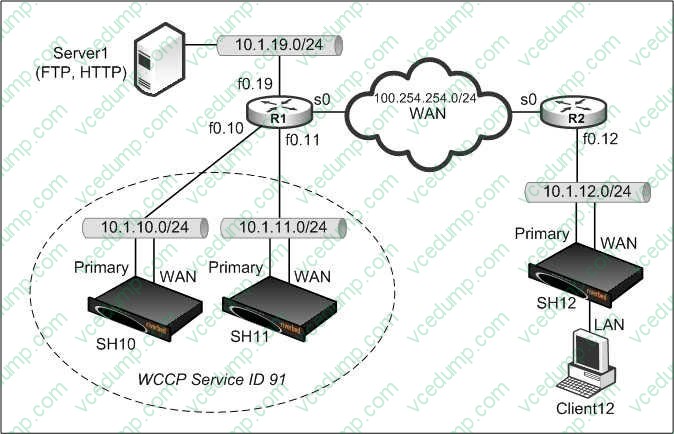

  -- Exhibit -Refer to the exhibit. In a WCCP environment with R3, SH10 and SH11, which statement below is true?

  A. The Steelhead appliance is only receiving HTTP traffic from the router.
  B. All traffic will be sent from the router to the Steelhead appliance.
  C. The Steelhead appliance will not receive HTTP traffic from the router.
  D. There is no need to use access-lists on the router to select HTTP traffic.
  E. The Steelhead appliance is only receiving traffic on port TCP 1741.
  B. All traffic will be sent from the router to the Steelhead appliance.

• Question 12:

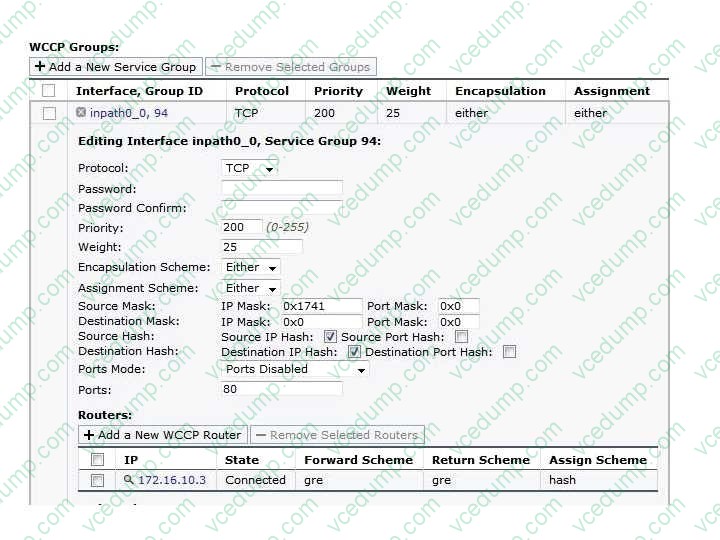

  Refer to the exhibit.



  Assume that a packet being optimized by SH10 incorrectly ends up on SH11 (due to load balancing error, or similar). How can you ensure that this packet is correctly returned to SH10?

  A. Set the WCCP weight of SH10 to be higher than that of SH11
  B. Use fixed-target rules explicitly at SH12 to peer to SH10
  C. Enable destination IP hash and destination port hash
  D. Enable destination IP hash and source port hash
  E. Enable destination IP hash and source IP hash
  F. Enable Connection Forwarding
  F. Enable Connection Forwarding

• Question 13:

  Select the command needed to add support for virtual in-path to your Steelhead appliance so that you can use WCCP or PBR with a Steelhead appliance.

  A. in-path inpath0_0 enable
  B. in-path oop enable
  C. ip virtual enable
  D. in-path virtual enable
  E. in-path wccp_pbr enable
  B. in-path oop enable

• Question 14:

  SH10 and SH11 are connection forwarding neighbors. After a configuration change on SH11, SH10 is in "degraded" status. What is the possible cause? (Select 2)

  A. The optimization services on SH11 are not running.
  B. The connection forwarding keepalive cable was disconnected.
  C. The optimization services on SH10 are not running.
  D. Connection forwarding is disabled on SH11.
  A. The optimization services on SH11 are not running.
  D. Connection forwarding is disabled on SH11.

• Question 15:

  Which of the following custom TACACS+ attribute-value (AV) pairs gives the user administrative privileges?

  A. local-user-name=superuser
  B. local-user-name=admin
  C. local-user-name=administrator
  D. local-user-name=monitor
  E. local-user-name=guest
  B. local-user-name=admin

• Question 16:

  The secure vault on the CMC appliance: (Select 3)

  A. Is always enabled and uses AES 256-bit encryption
  B. Can be enabled and supports 128, 192 and 256-bit AES encryption
  C. Is always enabled and opens by default at startup if the secure vault password has not been changed
  D. Has a default password which, if changed, means that it will need to be opened manually after each startup
  E. Contains all configuration and SSL information
  A. Is always enabled and uses AES 256-bit encryption
  C. Is always enabled and opens by default at startup if the secure vault password has not been changed
  D. Has a default password which, if changed, means that it will need to be opened manually after each startup

• Question 17:

  Refer to the exhibit.



  If Steelhead Mobile Client B offers up a share on the network, what is needed on Steelhead Mobile Client R to open an optimized connection to this share if enhanced auto-discovery is enabled on all Steelhead appliances?

  A. Default auto-discovery will work fine without modification
  B. The connection to Client B cannot be optimized because the Steelhead Mobile Controller cannot optimize incoming connections
  C. A fixed-target rule to Client B's IP address is needed in order for optimization to occur on Mobile Client B
  D. The addition of a peering rule
  A. Default auto-discovery will work fine without modification

• Question 18:

  Which of the following custom TACACS+ attribute-value (AV) pairs gives the user guest privileges?

  A. local-user-name=anonymous
  B. local-user-name=guest
  C. local-user-name=administrator
  D. local-user-name=monitor
  E. local-user-name=ghost
  D. local-user-name=monitor

• Question 19:

  The SteelCentral Controller for SteelHead Mobile is rebooted or becomes unreachable from the end user mobile client. What happens to their network connections?

  A. The end user's existing and new connections continue to be optimized as per policy.
  B. SSL trusts will fail and SSL will be passed through, all other traffic is unaffected.
  C. The end user's optimized connections continue but new connections are passed through.
  D. The end user's network connections terminate and they must wait for the controller to come back online.
  E. The end user's optimized connections are reset and restart in pass-through mode.
  A. The end user's existing and new connections continue to be optimized as per policy.

• Question 20:

  By default, which Steelhead appliances are placed in an Interceptor appliance's auto pool?

  A. All Steelhead appliances in the network
  B. Peer-neighbor Steelhead appliances as targets in one Load Balancing rule
  C. Peer-neighbor Steelhead appliances not assigned as targets in any Load Balancing rule
  D. Peer-neighbor Steelhead appliances assigned to all current Load Balancing rules
  C. Peer-neighbor Steelhead appliances not assigned as targets in any Load Balancing rule
