Avaya Avaya Certifications 7004.1 Questions & Answers

• Question 51:

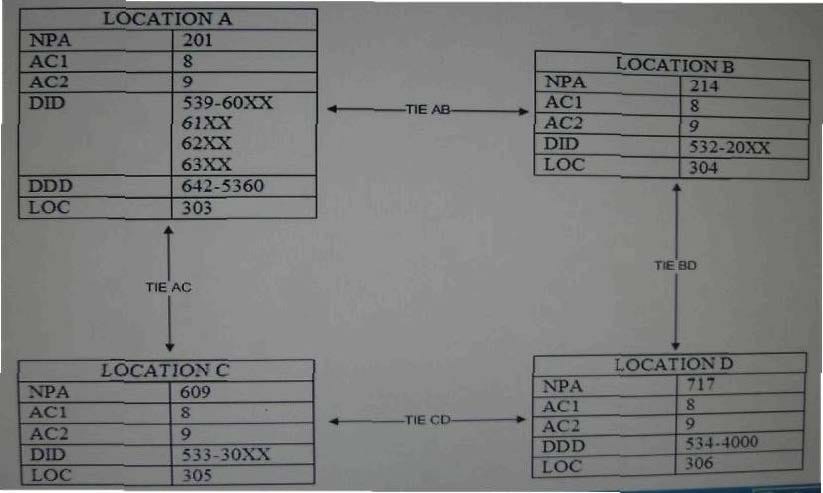

  Click the Exhibit button.



  Consider the a customer's dialing plan shown in the exhibit, which detail on-net and off-net dialing requirements:

  TIE trunks between Location A and Location B are currently out of service.

  TIE trunks between Location B and Location D are currently out of service.

  All over TIE trunks are fully functional.

  Which route will a call to LOC 304-2001 take if it originates from location B?

  A.

  TIE BD to LocationD.

  B.

  TIEAB to Location A.

  C.

  TIE BD to LocationD,then TIE CD to Location C then TIE AC to Location A

  D.

  The callwill not leave the originating PBX

  Correct Answer: D

• Question 52:

  In order to set up the Customer Data Block within Element Manager to support Zone Based Dialing, and assuming Package 420 ZBD Package is installed and active, what needs to be done first?

  A. Configure Numbering Zones.

  B. Select the Private Dial Plan from the customer's Features page.

  C. Select the Public Dial Plan from the customer's Features page.

  D. Select the "Enable Numbering Zones" option from the customer's Feature page.

  Correct Answer: D

• Question 53:

  Click the Exhibit button.

  A customer has asked if the Communication Server 1000 RIs. 7 x system can provide Exchange users

  with the ability to selectively drop people that have been added to a conference. Based on the print-outs,

  what capabilities are currently available to the user of extension 2006?

  A. The user cannot see the conferee display count or selectively disconnect callers.

  B. Theuser can see the conferee display count and can selectively disconnect callers.

  C. The user can see the conferee display count but cannot selectively disconnect callers.

  D. The user cannot see the confereedisplay count butselectively disconnect callers.

  Correct Answer: B

• Question 54:

  Your customer has a Communication Server 1000 RIs. 7 x system equipped with System Errors and Events Lookup pack 245 that provides the ability to display system messages on screen. When a system message in received, which procedure should you use to look it up and display it on the screen?

  A. Enter the system error number followed by For example, bug4080

  B. Enter bug followed by the system error code and .For example, bugerr4080

  C. Enter errcde followed by the system error code and .For example, errcde bug4080

  D. Enter err followed by the system error code followed by .For example, err bug4080

  Correct Answer: A

• Question 55:

  Click the Exhibit button.



  The local Central Office required that all calls dialed utilize dialing, however users forget to dial the NPA for local calls. Which DMI entry would be utilized to insert the NPA of 214 when a user dials 9- 774-3299?

  A. DMI Table 1

  B. DMI Table 2

  C. DMI Table 3

  D. DMI Table 4

  Correct Answer: D

• Question 56:

  The Directory Number range for a customer dialing plan is 2500-2599. Which entry indicates the number of digitals of the CDP Dialed Number (NCDP) for this dialing plan?

  A.4

  B. 6

  C. 8

  D. 12

  Correct Answer: A

• Question 57:

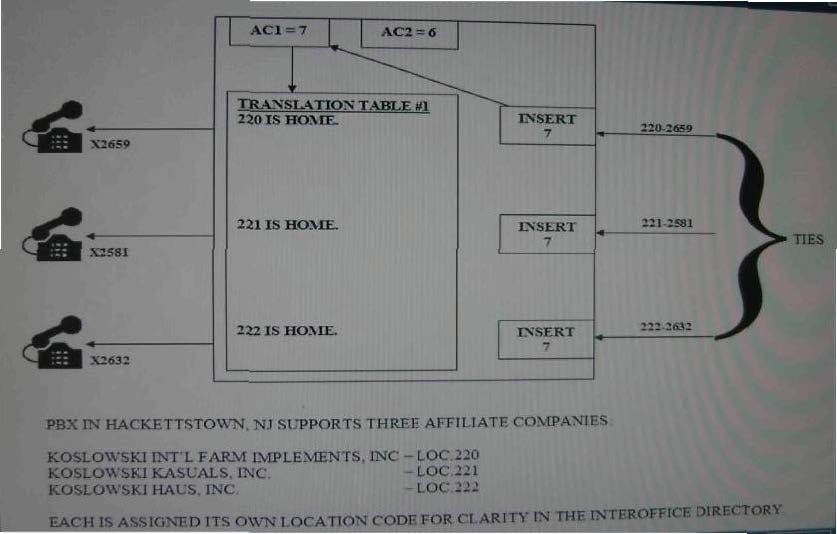

  Click the Exhibit button.



  Consider a company's dialing plan shown in the exhibit and an example for its requirements:

  A station user at the company, with Location Code 221, placed an ESN call, dialing 7-221-2581. This would be an On-Net call and the NARS programming must remove the LOC code and dial the DN internally.

  What programming would remove the location code for a call dialed within the originating Communication Server 1000 to a DN on that same Communication Server 1000?

  A. Each site would have its own Location Code programmed as a Home Location Code(HLOC) under Translation Table #1 in their CS 1000.

  B. The location codes for each site would be programmed under the LOC programming in Translation Table #2 at all locations.

  C. Home NPA Codes (HNPA) for each site would be programmed under Translation Table #1 at each location in their CS 1000.

  D. Each site would have the Location Codesfor all sites programmed as Home Location Codes (HLOC) in Translation Table #1 of their CS 1000.

  Correct Answer: A

• Question 58:

  The Satellite Link Control feature ensures that the configuration of a call does not include more than one communications satellite trunk. Tandem trunk calls, when connected through more than one communication satellite trunk, are subject to transmission distortion due to propagation. Which parameters are required to be equipped or configured for Satellite Link Control in the Communication Server 1000?

  A. Network Signaling (NSIG) package must be equipped.Route must be configured with ESN3 signaling.Route must be designated as a satellite route.

  B. Route must be configured with STD or ETN signaling.Route must be designated as a satellite route.

  C. Network Transfer (NXFR) package must be equipped.Route must be configured with ESN2 or ESN3 signalingRoute must be designated as a satellite route.

  D. Network Signaling (NSIG) package must be equipped.Route must be configured with ESN3 or ESN5 signaling.Route must be programmed with a Traveling Class of Service (TCOS)

  Correct Answer: A

• Question 59:

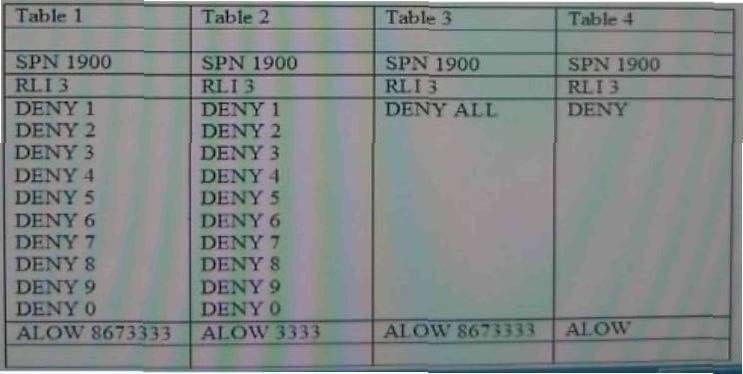

  Click the Exhibit button.



  Given the SDRR programming options shown in the exhibit, which SDRR programming would allow a user to dial 1-900-867-3333, but not successfully dial any other 1-900 based number?

  A. Table 1

  B. Table 2

  C. Table 3

  D. Table 4

  Correct Answer: A

• Question 60:

  An administrator is programming an NRS for the first time on a new Communication Server 1000 system

  RIS. 7.0 system. When attempting to add the Service Domain, it cannot be added as the Add button is

  grayed out in the NRS.

  Which tasked should you perform to resolve this issue?

  A. reinstall the Signaling Server Software

  B. reinstall the NRS software

  C. switch from Standby database to Active database

  D. switch from Active database to Standby database

  Correct Answer: D
