Avaya Avaya Aura 7004.1 Questions & Answers

• Question 1:

  Click the Exhibit button.

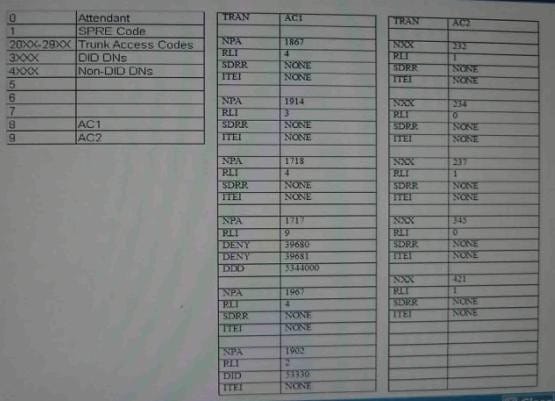

  Refer to the customer's dialing plan and programming show in the exhibits. Assuming all required Route List Indexes have been programmed, why will the station user's dialed call of 8-1-717-398-8001 not complete?

  A. AC2 Access Code was not dialed

  B. NPA1717isnot provisioned in the customer's database

  C. 398-8001 would be denied under the SDRR programming

  D. AC1 AccessCodewas not dialed

  Correct Answer: C

• Question 2:

  Click the Exhibit button.

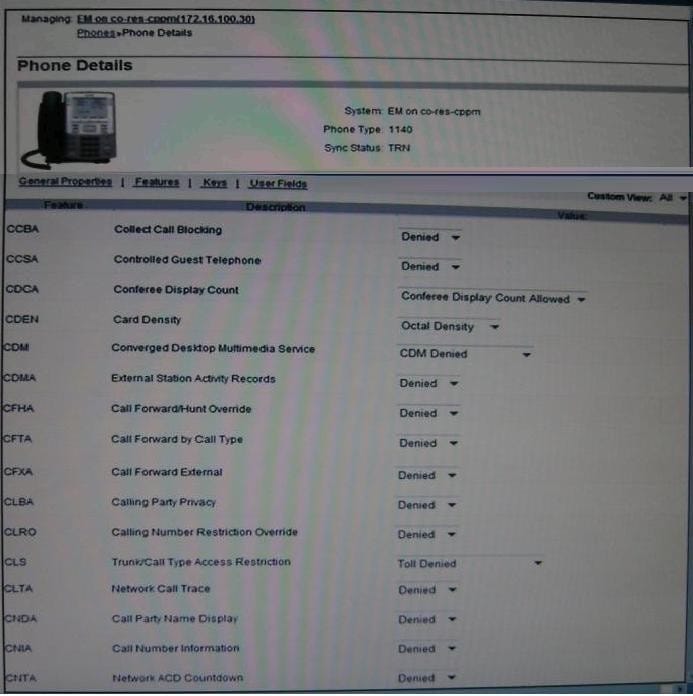

  You manage a Communication Server 1000 RIs. 7 x system at a customer site. The customer reports that extension 2000 cannot make an unassisted long distance calls. With reference to the exhibit, which feature is restricting the user?

  A. CCBA

  B. CCSA

  C. CLRO

  D. CLS

  Correct Answer: D

• Question 3:

  Click the Exhibit button.



  You are asked to review the existing route information for the customer. According to the printout shown in the exhibit, which type of route is this?

  A. a directinward dialroute

  B. amedia services route

  C. an integrated services digital network route

  D. an incoming only route

  Correct Answer: A

• Question 4:

  A company recently deployed IP telephones in its Call Center. During peak traffic conditions, callers receive an overflow tone and calls are blocked.

  Zone Number = 1 Zone Intent = MO Intrazone Traffic = Best Quality Interrone Traffic = Best Bandwidth Resource Type = Shared

  Which programming change is recommended to provide dedicated Digital Signal Processor (DSP) resources to Contact Center IP telephones?

  A. Change Zone Intent VTRK

  B. Change Resource Type to Private

  C. Change Interzone to BestQuality

  D. Change InterzoneTraffic to Best Bandwidth

  Correct Answer: B

• Question 5:

  Given the following network characteristics:

  three Communication Server 1000 RIs. 7 x systems IP Peer Networking required DN uniqueness cannot be maintained route calls using site Location Codes (LOCs)

  Which type of dialing plan is recommended for this call routing scenario?

  A. Flexible Numbering Plan (FNP)

  B. CoordinatedDialing Plan (CDP)

  C. Uniform Dialing Plan (UDP)

  D. NetworkAttendantNumbering Plan

  Correct Answer: A

• Question 6:

  With Automatic On-Net to Off-Net Overflow, if all on-net facilities such as TIE trunks between locations are busy, NARS can convert a dialed UDP number to a Listed Directory Number of the applicable DID number at that location and use off-net facilities, such as CO trunks, to complete the call. When provisioning Automatic On-Net to Off-Net Overflow, which parameter is not correct?

  A. Only oneListed Directory Number can be defined per Location Code (LOC).

  B. Multiple NPAs per Location Code are allowed.

  C. Multiple NXXcodes per Location Code can be defined.

  D. Multipleranges of DNs within each NXX per Location Code can he defined.

  Correct Answer: D

• Question 7:

  A customer site has a Communication Server 1000 system located at us main campus and wants to network me system for direct calls with a system in a different city. Which type of steering code is required to route calls over specify trunk routes between the two sites?

  A. Distant SteeringCode (DSC)

  B. Remote Steering Code (RSC)

  C. Network Plan Area (NPA)

  D. Special Number (SPN)

  Correct Answer: A

• Question 8:

  The Allow Last Digit Repeat function permits a repeated last digit of an ESDN to terminate the call immediately, similar to pressing the octothorpe (#) key. This prevents an ESA call from being dropped if the last ESDN digit is accidentally dialed again, but also processes the call immediately, rather than allowing an extended pause waiting for an additional digit. To use this feature, which task must you complete first?

  A. Create an Emergency Service Directory Number

  B. enter a Misdial Delay

  C. enable ESDN Digit Repetition

  D. enable Misdial Prevention

  Correct Answer: D

• Question 9:

  You are using Element Manager to verify the system configuration before implementing IP Peer Networking. Which element can you configure or modify using Element Manager?

  A. Call Server

  B. Network Connection Service

  C. Basic Input Output System (BIOS)

  D. Hardworking watchdog

  Correct Answer: A

• Question 10:

  An enterprise has a network with Communication Server 1000E systems running RIs 7 x IP Peer Network. For this network, when are the Digital Signal Processor (DSP) resources required?

  A. when a compressedmediachannel is required without circuit switching

  B. when interworkingis necessary to third-party SIP-enabled products

  C. when it isnecessarytotranscode between IP and circuit-switched devices

  D. wheninterworking is necessary to third-party H.323-enabled products

  Correct Answer: C
