Avaya Avaya Certifications 7004.1 Questions & Answers

• Question 31:

  An existing customer upgraded to Communication Server 1000 RIs 7.5 but plans on staying on an 323 network environment until their key systems in the network get upgraded to SIP. Their last 7.0 system is just now being put into service and you are configuring the H.323 Gateway Properties using Element Manager. What is the correct entry for the Primary Gatekeeper IP address?

  A. Privatedomain name field for the Gatekeeper

  B. Signaling Server T-LAN IPthat runs the Gatekeeperapplication

  C. Signaling ServerE-LAN IP that hosts the Primary Re-direct Server

  D. Node IDassigned to the site where theCall Server is located

  Correct Answer: B

• Question 32:

  When configuring Zone Based Dialing, what option would you select to create new zones for routing calls through a centralized Call Server?

  A. Numbering Zones link

  B. Bandwidth Zones link

  C. Dialing Configuration Details link

  D. Dialing Configuration Details for Flexible Dial Plan link

  Correct Answer: D

• Question 33:

  Click the Exhibit button.

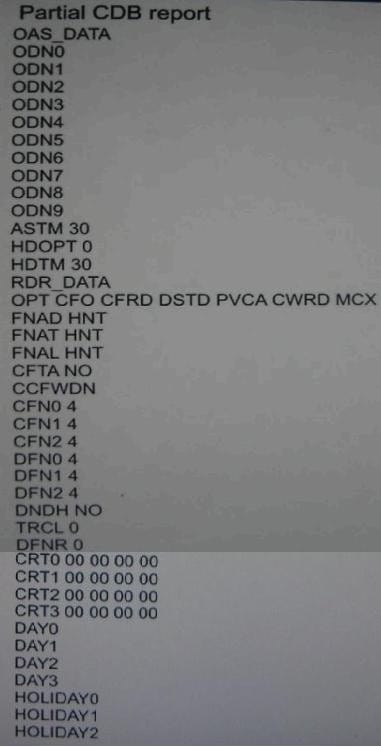

  A customer requires that Distinctive Ringing on a route be allowed. Which programming within the Customer Data Block (LD 15) indicates the number of times the call receive a distinctive ring before redirection?

  A. RNGO, RNG1, RNG2

  B. FNA0, FNA1, and FNA2

  C. DFN0, DFN1, and DFN2

  D. CRTO, CRT1, and CRT2

  Correct Answer: C

• Question 34:

  Click the Exhibit button.



  A customer's dialing requirement, listed below, require that all station users assigned an NCOS of 3 and Class of Service of Conditionally Toll Denied (CTD) be able to place toll calls from the United States to Australia.

  Australia Country Code: 61 NCOS of 3 has an FRL of 3 Expensive Routers are not being used

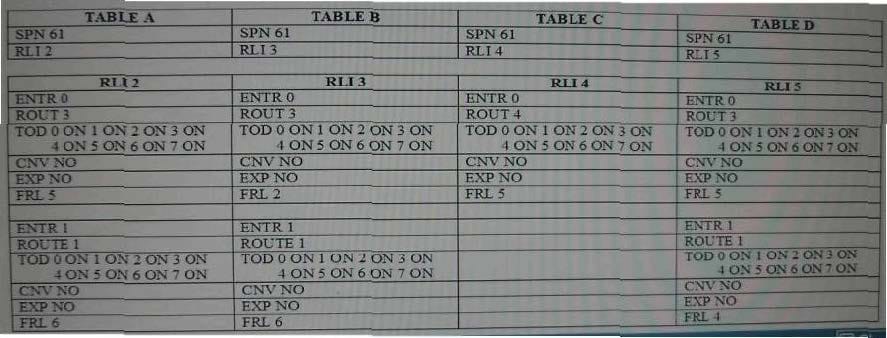

  With reference to the exhibit, which table will allow all station users to be able to place these toll calls?

  A. Provisioning Table A

  B. Provisioning Table B

  C. Provisioning Table C

  D. Provisioning Table D

  Correct Answer: B

• Question 35:

  You are implementing IP Peer Networking in a Communication Server 1000 network. For correct call routing, the digits dialed by users must be manipulated to conform to the dialing requirements of the trunk. Which statement describes a property of digit manipulation?

  A. It is only availableon branch offices

  B. Programmingis shared across all network common trunks

  C. It has the ability to delete and insert leading digits

  D. It uses64tables for digit replacement

  Correct Answer: C

• Question 36:

  Which functionality do TIE trunks provide?

  A. connects atelephone companies' central officeand the PBX of a customer

  B. connects two different PBXs, whether In the same budding or farther away

  C. allows an outside caller to dial a station on a PBX directory

  D. provide incoming or outgoing service only, and not acombination of incoming/outgoingconnections

  Correct Answer: B

• Question 37:

  Click the Exhibit button.

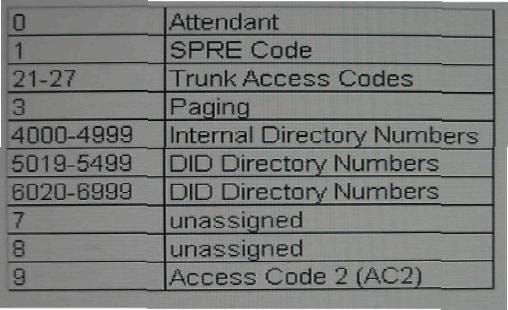

  Consider the customer's dialing plan shown in the exhibit. Which number used for the NARS AC1 access code?

  A. 6

  B. 8

  C. 9

  D. 31

  Correct Answer: B

• Question 38:

  In order for Zone Based Dialing On-Net Call routing (Inter-site) to be used, users are required to dial an

  E.164 number (either International or National number), for calls between sites. For this to be true, and for the system to pass the proper Calling Line ID (CLID), which prompt must be configured?

  A. The D1ALPLAN prompt must be configured to PPV.

  B. Country Code,NPA and NXX must be configured within the ZBD IE of an ISDN message

  C. The DIALPLAN prompt in CDB must be configured to PUB.

  D. ZBD option in the Customer Data block must be configured to PUB.

  Correct Answer: C

• Question 39:

  Click the Exhibit button.



  Consider the customer's current programming: NCOS of 2 = FRL of 2 Class of Service on all sets is CTD

  With reference to the exhibit, how would you modify Route List Index 1 to permit all station users with an NCOS of 2 to place 1+912 calls?

  A. Change FRL on Route List Index 1 to FRL 1

  B. Change FRL on Route List Index 1 to FRL 4

  C. Change FLI on NPA entry for 1214 to RLI 2

  D. Leave all existing programming as is.

  Correct Answer: A

• Question 40:

  A customer has deployed a Communication Server (CS) 1000 RIs. 7 x system at their site. They have asked you if the CS 1000 has a feature that can extend and ring calls to other locations. You have decided that Personal Call Assistant (PCA) will meet the customer's requirements and verified that the system is equipped with Package 398, and that it has sufficient ISM parameters. Which step must be performed first when implementing PCA?

  A. Locate or configureaSuperloop for PCA

  B. Enable the PCA feature for the customer

  C. Configure Flexible feature codes for PCA control

  D. Configure the telephone parameters to support PCA

  Correct Answer: B
