Avaya Avaya Certifications 7004.1 Questions & Answers

• Question 11:

  A customer would like to simplify their network administration by migrating existing Communication Server (CS) 1000 RIs. 7 x system in multiple locations into a single centrally deployed CS 1000 system. They want this change to be transparent to the end users so that can continue to use the same dial plan and features currently in place. Which feature can you implement to meet the customer's requirements?

  A. Hybrid Dialing

  B. Uniform Dialing

  C. Zone Based Dialing

  D. Coordinated Dialing

  Correct Answer: B

• Question 12:

  You have just created 10 new 1140E IP DeskPhone for your customer using Element Manager. Using accessing Subscriber Manger to assign the users to those newly created telephones, you notice that the telephones do not appear in Subscribe Manager database.

  Which Subscriber Manager synchronization mechanism updates the Subscribe Manger database with the Communication Server 1000 Element Manger database?

  A. Synchronize Accounts

  B. Synchronize Job

  C. Synchronize Subscribers

  D. Synchronize Locations

  Correct Answer: A

• Question 13:

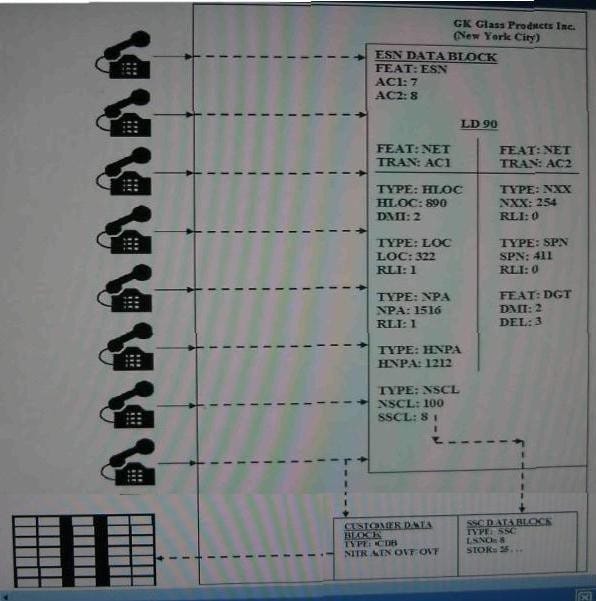

  Click the Exhibit button.



  Given a company's dialing plan shown in the exhibit, if a station user at the company in New York City dials 8-890-4233, what will happen to the call?

  A. The Access Code of 8 will be removed and the call will complete over Route List Index# 1.

  B. The call will receiveintercept treatment as indicated in the Customer Data Block (CDB) and fail to complete.

  C. The NARS software will remove the Access Code and Location Code and terminate the call internally at Directory Number 4233

  D. The Access Code of 8 will be removed andthe call will completeover RouteList Index #0.

  Correct Answer: D

• Question 14:

  Which Overlay (LD) is used to find an unused card slot (LUC) for a new Digital Line Card that will support five digital telephones?

  A. LD 22

  B. LD 20

  C. LD 21

  D. LD 81

  Correct Answer: B

• Question 15:

  To enabled and configured SIP on a Communication Server 1000 system, which software component on the IP Telephone Node must you enabled first using Element Manger?

  A. SIPGateway

  B. Media Gateway

  C. Terminal Proxy Server (TPS)

  D. SIP Proxy

  Correct Answer: C

• Question 16:

  When deploying ESA for IP telephones, a method for determining the location of the IP telephones is required. If you are deploying internally, what would one method be?

  A. Deploy ESAPackage 382 (Virtual Office).

  B. Deploy Location Information Services (US)

  C. Deploy Discovery Manager (DM)

  D. Deploy ESA Package 387 (Virtual OfficeEnhancement)

  Correct Answer: C

• Question 17:

  You are responsible for maintaining the Communication Server (CS) 1000E release 7 x system installed at your customer's district office. They would like to use Corporate Directory Feature are accurate? (Choose two)

  A. The Corporate Directory application obtains information directlyfrom the CS 1000 database to create the Corporate Directory Report File.

  B. The Corporate Directory application obtains information Subscriber and Telephony account information from SubscriberManger and compiles it into a Corporate Directory Report File.

  C. All information files required for generating Corporate Directory must be published in the LDAP directory.

  D. All information files required for generating Corporate Directory must be published in the Common Network Directory (CND).

  Correct Answer: BD

• Question 18:

  A company plans to use Virtual Trunk Interzone traffic. You are programming a bandwidth management zone on a Server 1000 RIs. 7 x Call Server. Which is the recommended bandwidth management strategy, assuming that bandwidth conservation is required?

  A. Best Quality (BQ)

  B. BandwidthConserve (BC)\

  C. Best Bandwidth (BB)

  D. Best Effort (BE)

  Correct Answer: A

• Question 19:

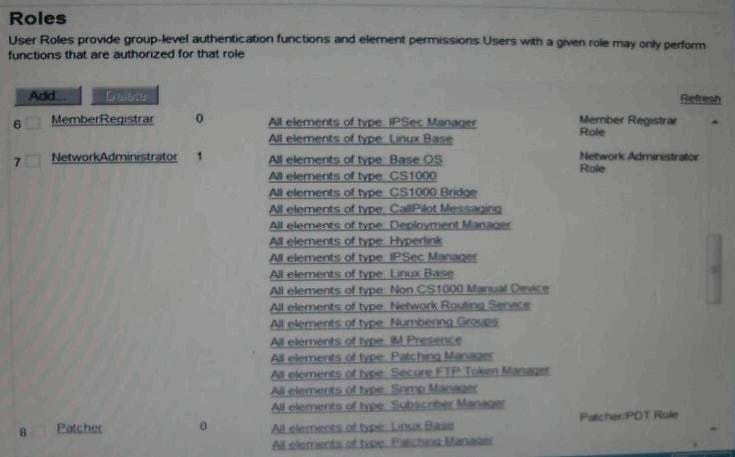

  Click the Exhibit button.



  A customer has a Communication Server 1000 RIs. 7 x system with System Manger / Unified Management (UCM) enabled. They have requested the addition of two new UCM Administrator User with the limited ability to provision telephones at each site. Refer to the exhibit for the roles current existing in the system.

  Which action can the Network Administrator take to add these new accounts per the customer's requirements?

  A. Change the built-in MemberRegister role to addthe permissions required to allow telephone configuration.

  B. Assign the new users to the built-in NetworkAdministrator role because it has the permissions that allowtelephone configuration.

  C. Change the built-in role Patcherrole to removeall permissions except those that allow telephoneconfiguration.

  D. Add a new TelephonyAdmin rolewith the specific permissions required to allow telephoneconfiguration.

  Correct Answer: D

• Question 20:

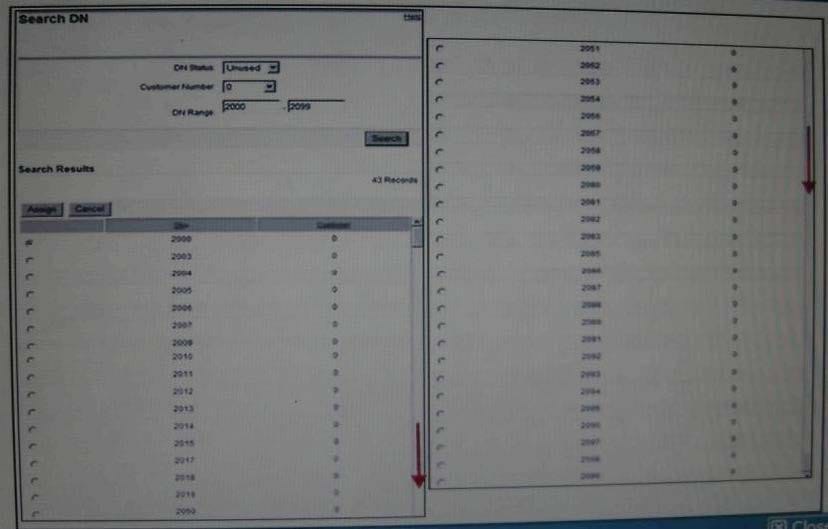

  Click the Exhibit button.



  A Communication Server 1000 RIs. 7 x customer is adding a new Human Resource department with eight IP telephone users. The customer has asked for the telephones to be programmed with consecutive Directory Number (DNs) from their DID range (2000-2099). Which number sequence is available to meet the customer's requirements?

  A. 2001 2008

  B. 2010 2017

  C. 2050 2057

  D. 2091 - 2098

  Correct Answer: D
