• Question 161:

  HOTSPOT

  You have a Hyper-V host that runs Windows Server 2016. The Hyper-V host has a virtual machine named VM1.

  You have a VHD named VHD1.vhdx that has a generalized image of Windows Server 2016.

  You plan to create multiple virtual machines that will use the generalized image.

  You need to create differencing disks based on VHD1.vhdx.

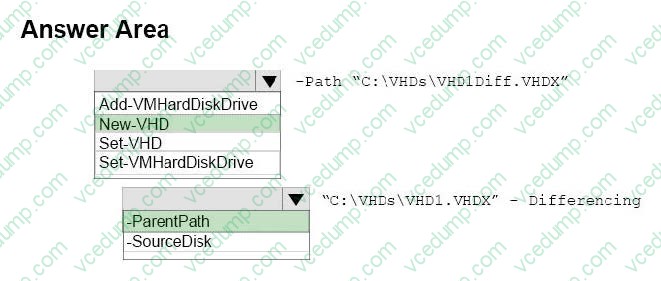

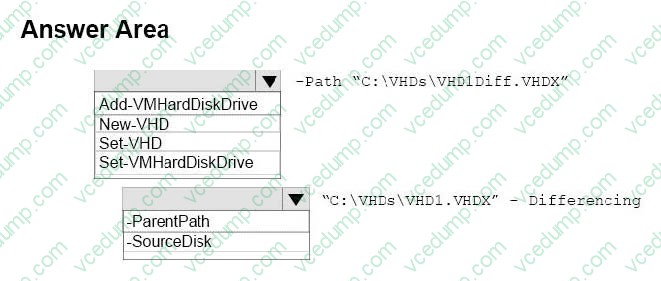

  What command should you run? To answer, select the appropriate options in the answer area.

  Hot Area:





  ---

  PS C:\> New-VHD -Path c:\Diff.vhdx -ParentPath c:\Base.vhdx -Differencing

  This example creates a VHDX-format differencing virtual hard disk with a parent path of c:\Base.vhdx.

  References:

  https://technet.microsoft.com/en-us/itpro/powershell/windows/hyper-v/new-vhd

• Question 162:

  HOTSPOT

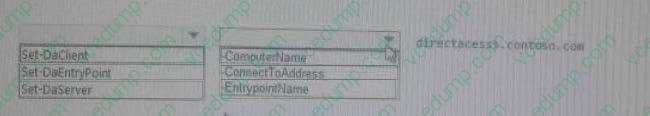

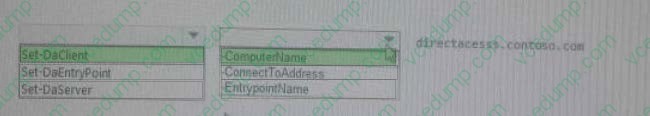

  You have a DirectAccess Server that is accessible by using the name directaccess.fabrikam.com On the DirectAccess server, you install a new server certificate that has a subject name of directaccess.contoso.com, and then you configure DNS records for directaccess.contoso.com You need to change the endpoint name for DirectAccess to directaccess.contoso.com What command should you run? To answer, select the appropriate options in the answer area.

  Hot Area:





• Question 163:

  Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2 that run Windows Server 2016. The servers have the same hardware configuration.

  You need to asynchronously replicate volume F: from Server1 to Server2.

  What should you do?

  A. Install the Failover Clustering feature and create a new cluster resource group.
  B. Run Set-DfsrServiceConfiguration and specify the 璕PCPort parameter.
  C. Run New-SRPartnership and specify the 璕eplicationMode parameter.
  D. Install the Failover Clustering feature and use Cluster Shared Volumes (CSV).
  C. Run New-SRPartnership and specify the 璕eplicationMode parameter.

  ---



  -ReplicationMode

  Specifies the desired mode of replication for this source and destination pair. The acceptable values for this parameter are:

  Synchronous or 1. The synchronous mode requires all writes to commit on the destination server and on the source server, which guarantees data integrity between computers.

  Asynchronous or 2. The asynchronous mode writes to the source server without waiting for the destination server, which allows for replication over high latency, geographic networks. The default value is synchronous.

  The default asynchronous recovery point alert time is 5 minutes. You can modify it by using the SetSRPartnership cmdlet. The alert time has no effect on replication behavior, only on reporting.

  References:

  https://docs.microsoft.com/en-us/powershell/module/storagereplica/new-srpartnership?view=win10-ps

  https://msandbu.wordpress.com/2016/05/13/getting-started-with-storage-replica-in-windows-server-2016/

  https://www.starwindsoftware.com/blog/how-to-configure-storage-replication-using-windows-server-2016-part-1

• Question 164:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains three servers named Server1, Server2, and Server3 that run Windows Server 2016.

  Server1 has IP Address Management (IPAM) installed. Server2 and Server3 have the DHCP Server role installed and have several DHCP scopes configured. The IPAM server retrieves data from Server2 and Server3.

  A domain user named User1 is a member of the groups shown in the following table.

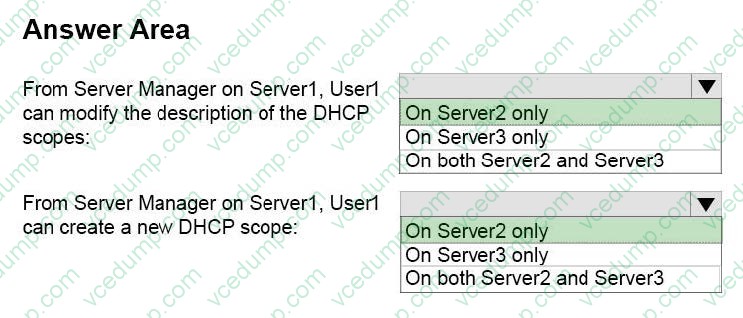

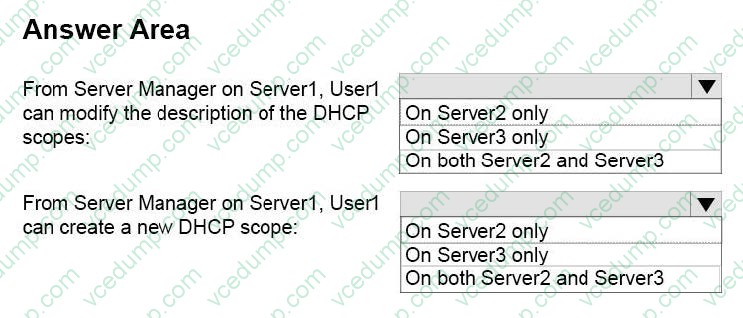

  On Server1, you create a security policy for User1. The policy grants the IPAM DHCP Scope Administrator Role with the \Global access scope to the user. Which actions can User1 perform? To answer, select the appropriate options in the answer area.

  Hot Area:





  ---

  User1 is using Server Manager, not IPAM to perform the administration. Therefore, only the “DHCP Administrators” permission on Server2 and the “DHCP Users” permissions on Server3 are applied. The permissions granted through membership of the “IPAM DHCP Scope Administrator Role” are not applied when the user is not using the IPAM console.

• Question 165:

  HOTSPOT

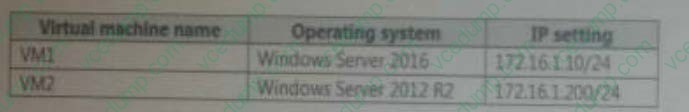

  You have a Hyper-V host named Server1 that runs Windows Server 2016. Server 1 has a virtual switch Switch1. Server1 hosts the virtual machines configured as shown in the following table.



  Windows firewall on VM1 and VM2 is configured to allow ICMP traffic. VM1 and VM2 connect to Switch1.

  You fail to ping VM1 from VM2.

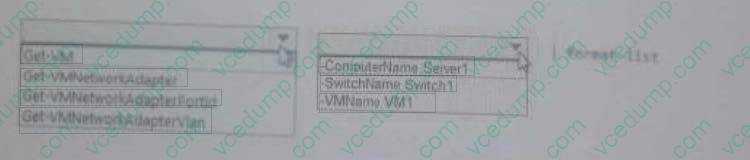

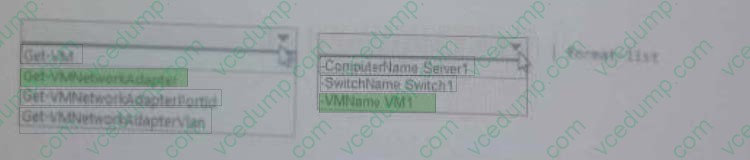

  You need to view the VirtualSubnetid to which VM1 connects.

  Which cmdlet should you run on Server1.

  Hot Area:





• Question 166:

  You implement Software Defined Networking (SDN) by using the Network Controller server role.

  You have a virtual network named VNET1 that contains servers used by developers.

  You need to ensure that only devices from the 192.168.0.0/24 subnet can access the virtual machine in VNET1.

  What should you configure?

  A. Dynamic Access Control
  B. role-based access control
  C. a network security group (NSG)
  D. a universal security group
  C. a network security group (NSG)

• Question 167:

  You have a server named Server1 that runs Windows Server 2016.

  Server1 has four SCSI disks and a storage pool named Pool1 that contains three disks.

  You create a virtual disk named Disk 1 that uses a mirrored layout.

  You create a partition named Partition1 that uses all of the available space on Disk 1.

  You need to extend Partition1.

  What should you do first?

  A. From Windows PowerShell, run the Resize-Partition cmdlet.
  B. From Windows PowerShell, run the Resize-StorageTier cmdlet.
  C. From the Storage Pools page in Server Manager, extend a virtual disk.
  D. From Disk Management, extend a volume.
  E. From Disk Management, modify the properties of Partition1.
  C. From the Storage Pools page in Server Manager, extend a virtual disk.

  ---

  References: https://charbelnemnom.com/2015/03/step-by-step-how-to-extend-and-resize-a-two-way-mirrored-storage-tiered-space-storagespaces-ws2012r2/

• Question 168:

  DRAG DROP

  You install a new Nano Server named Nano1. Nano1 is a member of a workgroup and has an IP address of 192.168.1.10.

  You have a server named Server1 that runs Windows Server 2016.

  From Server1, you need to establish a Windows PowerShell session to Nano1.

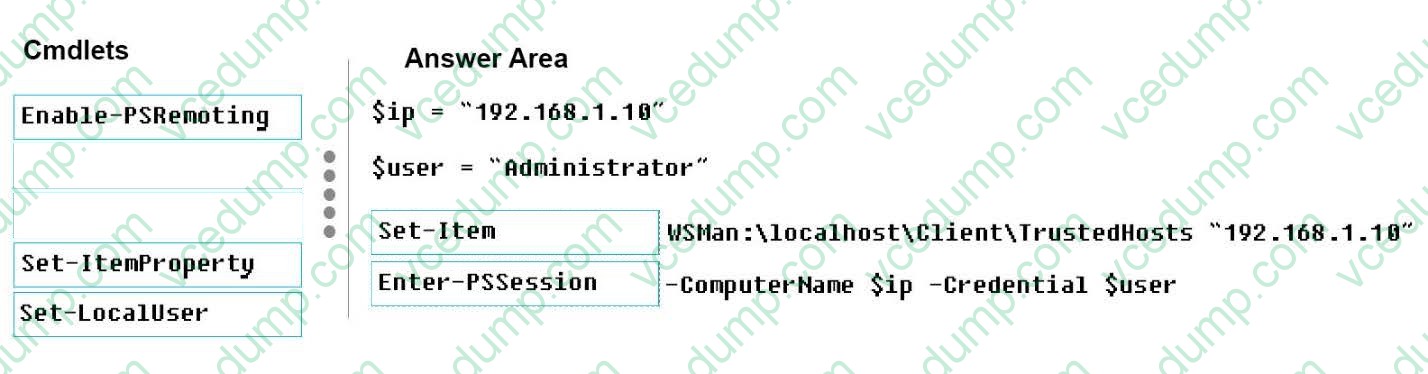

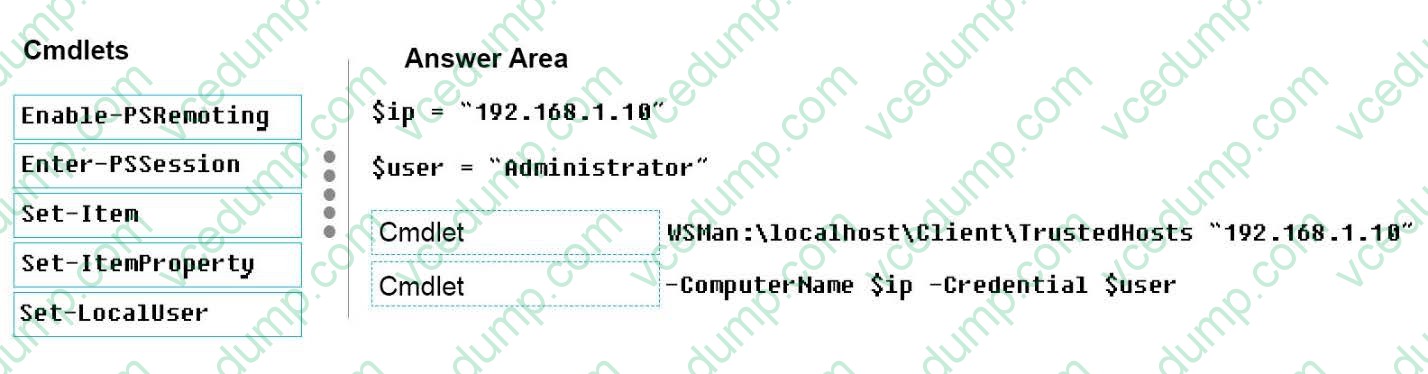

  How should you complete the PowerShell script? To answer, drag the appropriate cmdlets to the correct targets. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to

  view content.

  Select and Place:





  ---

  How to access Nano Server

  Because Nano Server does not support a local session, it must be accessed remotely.

  1. Start an elevated PowerShell ISE session.

  2. Set the Trusted Host.

  This is a one-time setting for each remote machine. You’re basically telling your development machine to trust the remote Nano Server.

  Set-Item WSMan:\LocalHost\Client\TrustedHosts "192.168.0.100"

  Start the session.

  Enter the following commands into the PowerShell ISE command line:

  $ip = "192.168.0.100" # replace with your Nano Server's IP address

  $s = New-PSSession -ComputerName $ip -Credential ~\Administrator

  Enter-PSSession -Session $s

  References: https://msdn.microsoft.com/en-us/library/mt708805(v=vs.85).aspx

• Question 169:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have a Hyper-V named Server1. The network adapters on Server1 have single root I/O virtualization (SR-IOV) enabled.

  Server1 hosts a virtual machine named VM1 that runs Windows Server 2016.

  You need to identify whether SR-IOV is used by VM1.

  Solution: You sign in to VM1. You view the properties of the network connections.

  Does this meet the goal?

  A. Yes
  B. No
  B. No

• Question 170:

  You have a server named Server1 that runs Windows Server 2016. Server1 is a Hyper-V host that hosts a virtual machine named VM1.

  Server1 has three network adapter cards that are connected to a virtual switch named vSwitch1.

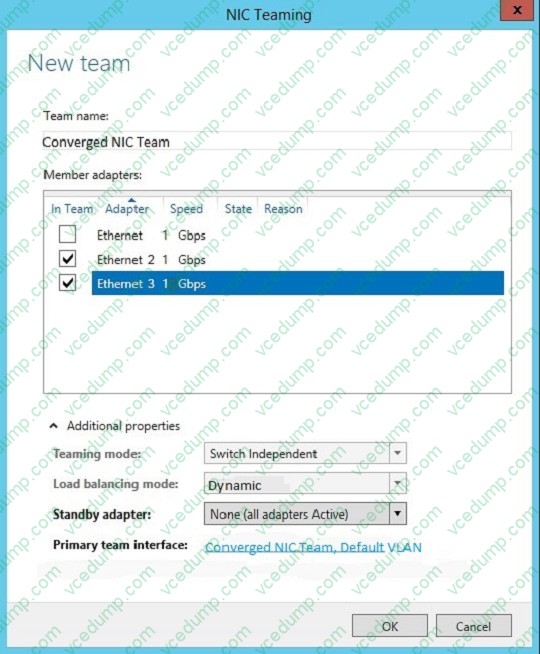

  You configure NIC Teaming on VM1 as shown in the exhibit.



  You need to ensure that VM1 will retain access to the network if a physical network adapter card fails on Server1. What should you do?

  A. From Hyper-V Manager on Server1, modify the settings of VM1.
  B. From Windows PowerShell on Server1, run the Set-VmSwitch cmdlet
  C. From the properties of the NIC team on VM1, add the adapter named Ethernet to the NIC team
  D. From the properties of the NIC team on VM1, change the load balancing of the NIC team.
  A. From Hyper-V Manager on Server1, modify the settings of VM1.
