• Question 171:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while

  others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have an IP Address Management (IPAM) server named IPAM1 that runs Windows Server 2016. IPAM1 manages all of the DHCP servers on your network.

  You are troubleshooting an issue for a client that fails to receive an IP address from DHCP.

  You need to ensure that from IPAM1, you can view all of the event data for the DHCP leases from the last 24 hours.

  Solution: From Server Manager, you run Retrieve Event Catalog Data.

  Does this meet the goal?

  A. Yes
  B. No
  A. Yes

  ---

  Reference: https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-r2-and-2012/jj878322(v=ws.11)

• Question 172:

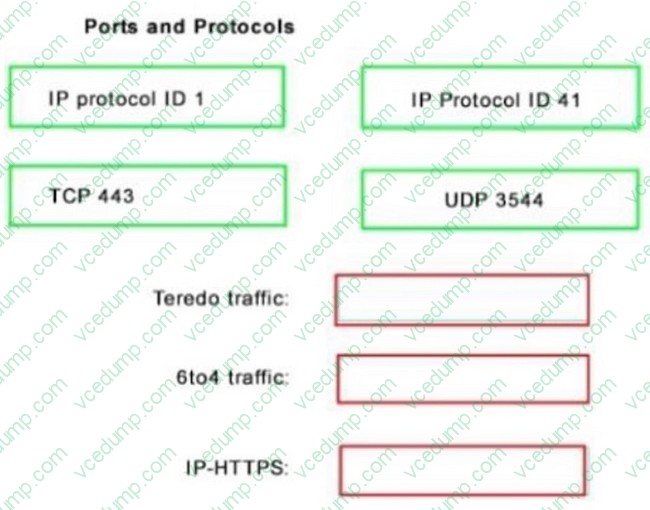

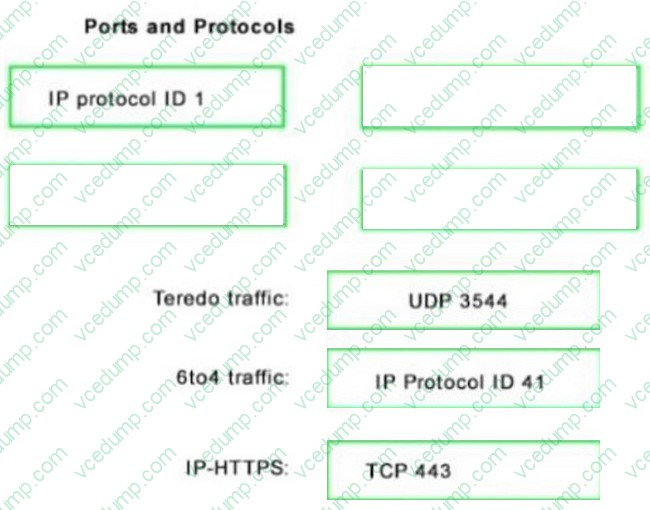

  DRAG DROP

  You are deploying DirectAccess to a server named DA1.

  DA1 will be located behind a firewall and will have a single network adapter.

  The intermediary network will be IPv4.

  You need to configure firewall to support DirectAccess.

  Which firewall rules should you create for each type of traffic? To answer, drag the appropriate ports and protocols to the correct traffic types. Each port and protocol may be used once, more than once, or not at all. You may need to drag the

  split bar between panes or scroll to view content.

  Select and Place:





• Question 173:

  You have a server named Server1 that runs Windows Server 2016 and has the File and Storage Services server role installed.

  Server1 has an ReFS-formatted volume named Volume1 that is 512 GB. Volume1 is mounted as C:\App1\temp.

  You need to ensure that you can enable deduplication of Volume1.

  What should you do?

  A. Initialize the physical disk that contains Volume1.
  B. Unmount Volume1.
  C. Format Volume1.
  D. Install a Windows feature.
  D. Install a Windows feature.

  ---

  References: https://docs.microsoft.com/en-us/windows-server/storage/data-deduplication/install-enable#enable-dedup-lights-on

• Question 174:

  You create a Storage Spaces Direct hyper-converged failover cluster. The duster contains three nodes and a 1-TB Storage Spaces Direct volume.

  The cluster will store virtual machines.

  You plan to extend the volume by adding an additional 3 TB.

  What is the minimum amount of extra disk capacity required to accommodate extending the volume?

  A. 3 TB on the coordinator node
  B. 3 TB per node
  C. 4 TB per node
  D. 4 TB on the coordinator node
  A. 3 TB on the coordinator node

• Question 175:

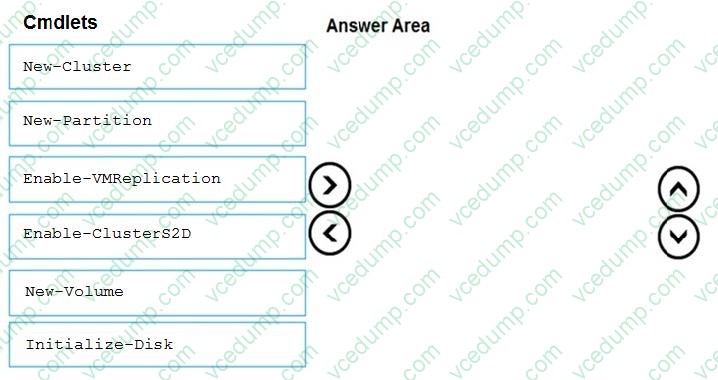

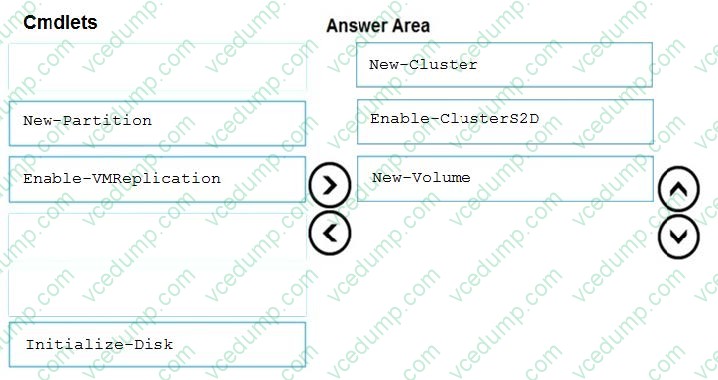

  DRAG DROP

  Your network contains an Active Directory domain named adatum.com. The domain contains four member servers that run Windows Server 2016.

  On each server, you locally attach three disks and install the Failover Clustering feature.

  You need to create a volume that uses all the disks. The volume must be highly available.

  Which three cmdlets should you run in sequence? To answer, move the appropriate cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.

  Select and Place:





  ---

  Reference: https://docs.microsoft.com/en-us/windows-server/storage/storage-spaces/deploy-storage-spaces-direct

• Question 176:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have a server named Server1 that runs Windows Server 2016. Server1 has the Hyper-V server role and Docker installed.

  You pull the Microsoft/iis Docker image to Server1.

  You need to view the available space in the microsoft/iis Docker image.

  Solution: You run the command docker run -d microsoft/iis. You open Disk Management on Server1.

  Does this meet the goal?

  A. Yes
  B. No
  B. No

• Question 177:

  Note: This question is part of a series of questions that use the same or similar answer choices. An answer choice may be correct for more than one question in the series. Each question is independent of the other questions in this series.

  Information and details provided in a question apply only to that question.

  You have an Active Directory domain that contains two Hyper-V servers named Server1 and Server2. Server1 has Windows Server 2016 installed. Server2 has Windows Server 2012 R2 installed.

  Each Hyper-V server has three network cards. Each network card is connected to a different subnet. Server1 contains a dedicated migration network.

  Server2 contains a virtual machine named VM5.

  You plan to perform a live migration of VM5 to Server1.

  You need to ensure that Server1 uses all available networks to perform the live migration of VM5.

  What should you run?

  A. the Mount-VHD cmdlet
  B. the Diskpart command
  C. the Set-VHD cmdlet
  D. the Set-VM cmdlet
  E. the Set-VMHost cmdlet
  F. the Set-VMProcessor cmdlet
  G. the Install-WindowsFeature cmdlet H. the Optimize-VHD cmdlet
  E. the Set-VMHost cmdlet

  ---

  Set-VMHost -UseAnyNetworkForMigration

  Specifies how networks are selected for incoming live migration traffic. If set to $True, any available network on the host can be used for this traffic. If set to $False, incoming live migration traffic is transmitted only on the networks specified in

  the MigrationNetworks property of the host.

  PS C:\> Set-VMHost -UseAnyNetworkForMigration $true

  This example enables the use of any network for incoming live migrations on the local Hyper-V host.

  References:

  https://technet.microsoft.com/en-us/library/hh848524.aspx

  https://docs.microsoft.com/en-us/powershell/module/hyper-v/set-vmhost?view=win10-ps

• Question 178:

  You have a Hyper-V host named Server1 that runs Windows Server 2016. Server1 hosts a virtual machine named VM1 that runs Windows Server 2016.

  You install the Hyper-V server role on VM1.

  You need to ensure that the virtual machines hosted on VM1 can communicate with the virtual machines hosted on Server1.

  What should you do?

  A. On Server1, run the Set-VmNetworkAdapterIsolation cmdlet and specify the -MultiTenantStack Off parameter.
  B. On Server1, run the Set-VMNetworkAdapter cmdlet and specify the -MacAddressSpoofing On parameter.
  C. On VM1, run the Set-VMNetworkAdapter cmdlet and specify the -MacAddressSpoofing Off parameter.
  D. On VM1, run the Set-VmNetworkAdapterIsolation cmdlet and specify the -MultiTenantStack On parameter.
  B. On Server1, run the Set-VMNetworkAdapter cmdlet and specify the -MacAddressSpoofing On parameter.

• Question 179:

  HOTSPOT

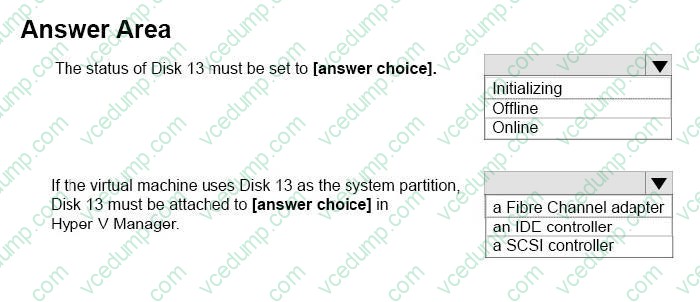

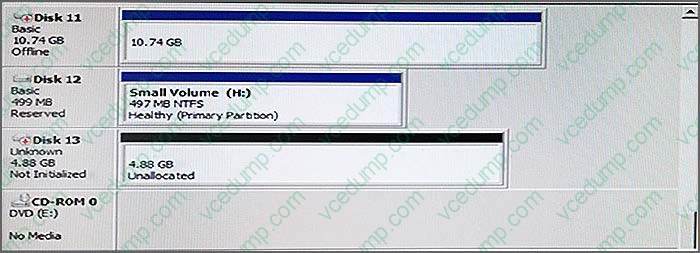

  You have a server named Server1 that runs Windows Server 2016 and has a Hyper-V server role installed. You open Disk Management on Server1 as shown in the following graphic.



  You plan to configure Disk 13 as a pass-through disk for a generation 1 virtual machine.

  Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.

  Hot Area:





  ---

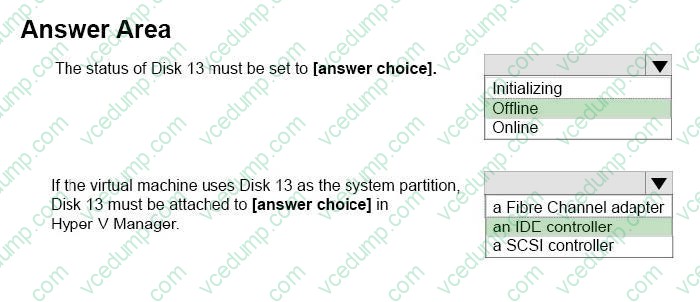

  If the disk is not in an Offline state, it will not be available for selection when configuring the Guest's storage. If the Pass-through disk will be used to boot the operating system, it must be attached to an IDE Controller. References:

  https://blogs.technet.microsoft.com/askcore/2008/10/24/configuring-pass-through-disks-in-hyper-v/

• Question 180:

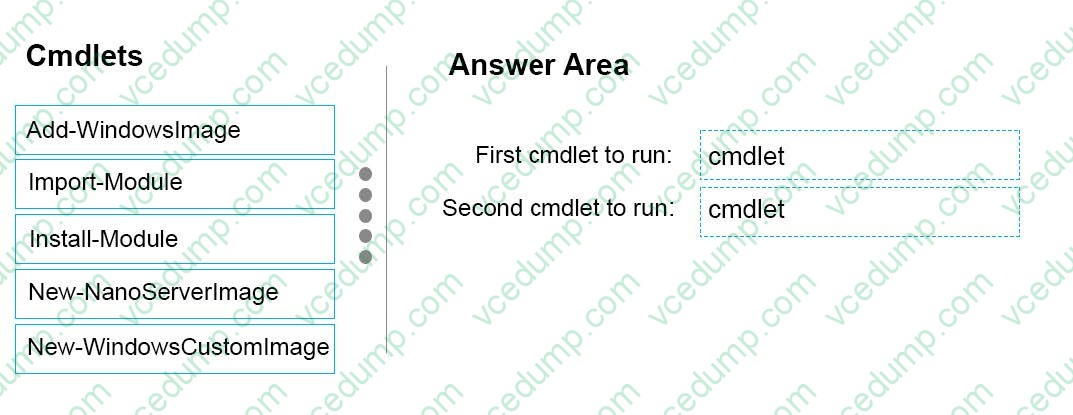

  DRAG DROP

  You have a Hyper-V host named Server1 that runs Windows Server 2016.

  The installation source files for Windows Server 2016 are located in D:\Source.

  You need to create a Nano Server image.

  Which cmdlets should you run? To answer, drag the appropriate cmdlets to the correct targets. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bat between panes or scroll to view content.

  Select and Place:





  ---

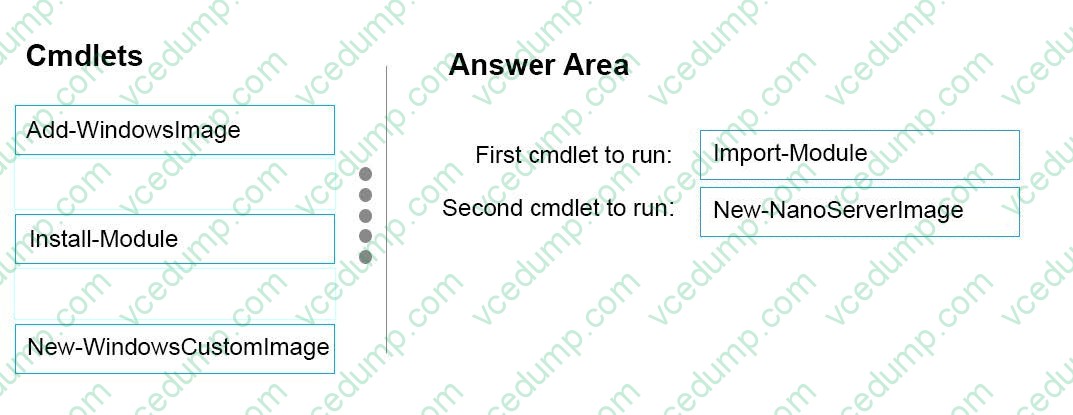

  Step 1: Import Module Import-Module .\NanoServerImageGenerator.psm1 Step 2: New New-NanoServerImage Create Nano Server Image VHDX New-NanoServerImage -MediaPath .\Files -BasePath .\Base -TargetPath .\Images\NanoVMGA.vhdx

  References: https://technet.microsoft.com/en-us/windows-server-docs/get-started/deploy-nano-server
