Microsoft 70-743 Online Practice Questions and Exam Preparation

Microsoft 70-743 Online Questions & Answers

• Question 151:

  You create a Nano server image named Nano1.vhdx by using the New-NanoServerImage cmdlet.

  You attach Nano1.vhdx to a Generation 1 virtual machine named Nano1.

  When you start Nano1, you get the following error message: "Boot failure. Reboot and select proper Boot device or Insert Boot Media in selected Boot device"

  You need to successfully start Nano server.

  What should you do?

  A. Attach Nano1.vhdx to a SCSI controller.
  B. Recreate Nano1 as a Generation 2 virtual machine.
  C. Increase the memory of Nano1 to 512 Mb.
  D. Modify the BIOS settings of Nano1.
  B. Recreate Nano1 as a Generation 2 virtual machine.

  ---

  A Generation 1 VM cannot boot from a vhdx disk; only a Generation 2 VM can boot from an vhdx disk.

• Question 152:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2 that run Windows Server 2016.

  Server1 has IP Address Management (IPAM) installed. Server2 has the DHCP Server role installed. The IPAM server retrieves data from Server2.

  You create a domain user account named User1.

  You need to ensure that User1 can use IPAM to manage DHCP.

  Which command should you run on Server1? To answer, select the appropriate options in the answer area.

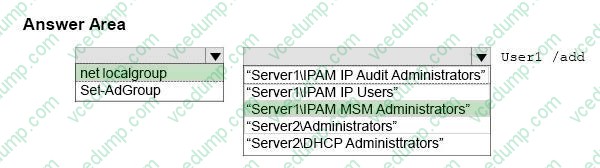

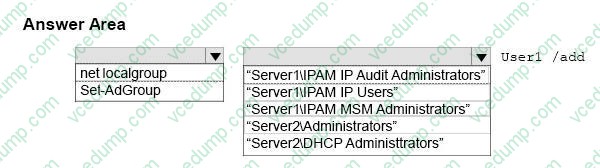

  Hot Area:





  ---

  net localgroup "Server1\IPAM MSM Administrators" User1 /add IPAM MSM Administrator : Members of this group can manage DHCP servers, scopes, policies, DNS servers and associate zones and records

  References: https://technet.microsoft.com/en-us/library/cc725622(v=ws.11).aspx

• Question 153:

  Your network contains an Active Directory forest named contoso.com. The forest contains two domains named contoso.com and litwareinc.com.

  Your company recently deployed DirectAccess for the members of a group named DA_Computers. All client computers are members of DA_Computers.

  You discover that DirectAccess clients can access the resources located in the contoso.com domain only. The clients can access the resources in the litwareinc.com domain by using an L2TP VPN connection to the network.

  You need to ensure that the DirectAccess clients can access the resources in the litwareinc.com domain.

  What should you do?

  A. On an external DNS server, create a zone delegation for litwareinc.com.
  B. From a Group Policy object (GPO), modify the Name Resolution Policy Table (NRPT).
  C. Add the servers in litwareinc.com to the RAS and IAS Servers group.
  D. From the properties of the servers in litwareinc.com, configure the delegation settings.
  B. From a Group Policy object (GPO), modify the Name Resolution Policy Table (NRPT).

• Question 154:

  You have a DHCP server named Server1 that runs Windows Server 2016.

  You have a single IP subnet.

  Server1 has an IPv4 scope named Scope1. Scope1 has an IP address range of 10.0.1.10 to 10.0.1.200 and a length of 24 bits.

  You need to create a second logical IP network on the subnet. The subnet will use an IP address range of 10.0.2.10 to 10.0.2.200 and a length of 24 bits.

  What should you do?

  A. Create a second scope, and then create a superscope.
  B. Create a superscope, and then configure an exclusion range in Scope1.
  C. Create a new scope, and then modify the IPv4 bindings.
  D. Create a second scope, and then run the DHCP Split-Scope Configuration Wizard.
  A. Create a second scope, and then create a superscope.

  ---

  References: https://technet.microsoft.com/en-us/library/cc958938.aspx

• Question 155:

  Note: This question is part of a series of a questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  Your network contains an Active Directory forest named contoso.com. The forest contains a member server named Server1 that runs Windows Server 2016. All domain controllers run Windows Server 2012 R2.

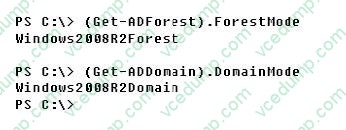

  Contoso.com has the following configuration.



  You plan to deploy an Active Directory Federation Services (AD FS) farm on Server1 and to configure device registration.

  You need to configure Active Directory to support the planned deployment.

  Solution: You upgrade a domain controller to Windows Server 2016.

  Does this meet the goal?

  A. Yes
  B. No
  A. Yes

  ---

  New installations of AD FS 2016 require the Active Directory 2016 schema (minimum version 85). Upgrading a domain controller will upgrade the schema. Note: upgrading the schema is not the same as upgrading the domain for forest functional level. Upgrading the functional level is not required.

• Question 156:

  HOTSPOT

  Your network contains an Active Directory domain named contoso com. The domain contains a DNS server named Server1

  You enable Response Rate Limiting on Server1.

  You need to prevent Response Rate Limiting from applying to hosts that reside on the network of 10.0.0.0/24.

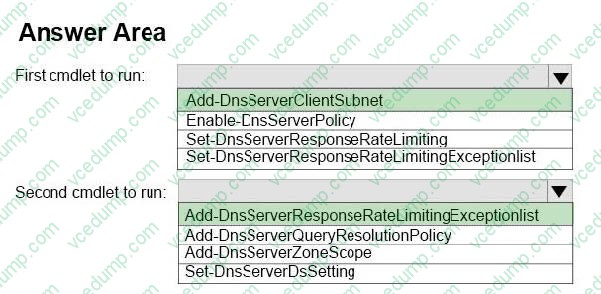

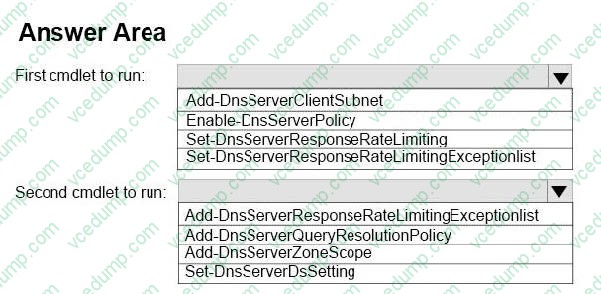

  Which cmdlets should you run? To answer, select the appropriate options in the answer area

  Hot Area:





  ---

  By default RRL, is disabled on Windows DNS Server. To enable it the admin has to input SetDNSServerRRL

  This enables RRL on the DNS server with default settings (See more at Set-DnsServerResponseRateLimiting )

  References:

  https://blogs.technet.microsoft.com/teamdhcp/2015/08/28/response-rate-limiting-in-windows-dns-server/

  https://docs.microsoft.com/en-us/powershell/module/dnsserver/add-dnsserverclientsubnet?view=win10-ps

  https://docs.microsoft.com/en-us/powershell/module/dnsserver/add-dnsserverresponseratelimitingexceptionlist?view=win10-ps

• Question 157:

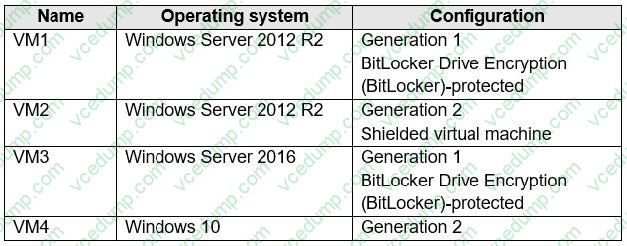

  You have a Hyper-V host named HV1 that runs Windows Server 2016. HV1 is a guarded host that is part of a guarded fabric. HV1 receives updates through the Semi-Annual Channel. HV1 hosts the virtual machines shown in the following table.

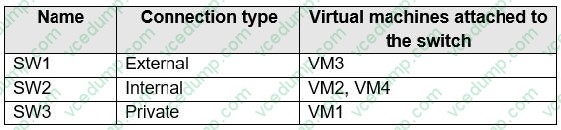

  HV1 has the virtual switches shown in the following table.



  All the virtual machines are running and are joined to the same domain. To which virtual machine can you connect by using PowerShell Direct?

  A. VM1, VM2, VM3, and VM4
  B. only VM1 and VM3
  C. only VM2 and VM4
  D. only VM3 and VM4
  D. only VM3 and VM4

  ---

  Reference: https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/manage/manage-windows-virtual-machines-with-powershell-direct

  https://docs.microsoft.com/en-us/virtualization/community/team-blog/2015/20150514-powershell-direct-running-powershell-inside-a-virtual-machine-from-the-hyper-v-host

• Question 158:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solution,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  Your network contains an Active Directory domain named contoso.com. The domain contains two domain controllers named DC1 and DC2.

  DC1 holds the RID master operations role.

  DC1 fails and cannot be repaired.

  You need to move the RID role to DC2.

  Solution: On DC2, you open Active Directory Users and Computers, click Operations Masters..., verify that dc2.contoso.com is listed on the RID tab, and click Change.

  Does this meet the goal?

  A. Yes
  B. No
  A. Yes

  ---

  There are 3 ways of transferring FSMO roles:

  Using graphical user interface available on a DC or any server/workstation with Administrative Tools / Remote Server Administration Tools installed.

  Using the command-line tool called ntdsutil.

  Using the PowerShell cmdlet Move-ADDirectoryServerOperationMasterRole.

  References:

  http://kpytko.pl/active-directory-domain-services/transferring-fsmo-roles-from-gui/

  http://kpytko.pl/active-directory-domain-services/transferring-fsmo-roles-with-powershell/

  http://kpytko.pl/active-directory-domain-services/transferring-fsmo-roles-from-command-line/

• Question 159:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while

  others might not have a correct solution.

  After you answer a question in this sections, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  Your network contains an Active Directory domain named contoso.com

  You need to create a Nano Server image named Nano1 that will be used as a virtualization host. The windows server 2016 source files are located in drive D.

  Solution: You run the following cmdlet.

  New-NanoServerImage –Edition Datacenter –DeploymentType Host –PackageMictosoft-NanoServer-SCVMM-Package –MediaPath ‘D:\ -TargetPath C:\nano1\Nano1.wim–ComputerName Nano1–Domaintiame Contoso.com

  Does this meet the goal?

  A. Yes
  B. NO
  A. Yes

• Question 160:

  You need to implement network virtualization.

  On which object should you configure the virtual subnet ID?

  A. Virtual switch
  B. Hyper-V server
  C. VM
  D. Virtual network adapter
  D. Virtual network adapter

  ---

  The Set-VMNetworkAdapter cmdlet configures features of the virtual network adapter in a virtual machine or the management operating system.

  -VirtualSubnetId

  Specifies the virtual subnet ID to use with Hyper-V Network Virtualization. Allowed values range from 4096 to 16777215 (2^24 - 1), in addition to 0. Use 0 to clear this parameter.

  References:

  https://technet.microsoft.com/en-us/library/hh848457(v=wps.630).aspx

  https://blogs.technet.microsoft.com/keithmayer/2012/10/08/step-by-step-hyper-v-network-virtualization-31-daysof-favorite-features-in-winserv-2012-part-8-of-31/
