Avaya ERS 8000 and Avaya VSP 9000 Implementation

Exam Details

  • Exam Code
    :6103
  • Exam Name
    :Avaya ERS 8000 and Avaya VSP 9000 Implementation
  • Certification
    :Avaya Certifications
  • Vendor
    :Avaya
  • Total Questions
    :60 Q&As
  • Last Updated
    :Dec 01, 2024

Avaya Avaya Certifications 6103 Questions & Answers

  • Question 11:

    A customer is concerned about the security of their network. They need to understand the OSPF authentication options when accepting route updates in OSPF. Currently, their Virtual Services Platform (VSP) 9000 is configured to require no authentication when receiving the OSPF updates.

    Which two supported authentication types would provide security on the VSP 9000 for OSPF updates? (Choose two.)

    A. MD5

    B. 3DES

    C. RADIUS

    D. Simple Password

  • Question 12:

    Which statement describes how to configure Simple Loop Prevention protocol (SLPP) Rx?

    A. SLPP is configured on the edge switch ports that connect to the core switch cluster.

    B. SLPP is configured on the Inter Switch Trunk (IST) ports of the core switch cluster.

    C. SLPP is configured on the core switch cluster ports that connect to the edge switch.

    D. SLPP is configured on the uplink ports of both the core switch cluster and the edge switch.

  • Question 13:

    Source MAC address-based VLANs are an example of which group of VLAN types?

    A. Policy based

    B. MAC based

    C. Address based

    D. Weighted

  • Question 14:

    A campus network requirement is to introduce Virtual Routing and Forwarding (VRF) in the existing Virtual Services Platform (VSP) 9000 core. The technician needs to configure VRF on the VSP 9000.

    Which statement represents the proper order for configuring a new VRF?

    A. Create a new VLAN, add an IP address, create a VRF, and move the VLAN to the new VRF.

    B. Create a VRF, add an IP address, create a new VLAN, and move the VLAN to the new VRF.

    C. Create a VRF, create a new VLAN, add an IP address, and move the VLAN to the new VRF.

    D. Create a VRF, create a new VLAN, move the VLAN to the new VRF, and add an IP address.

  • Question 15:

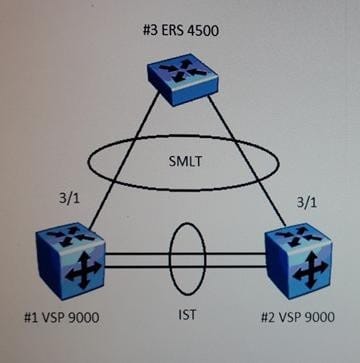

    Refer to the exhibit.

    Simple Loop Prevention Protocol (SLPP) provides active protection against Layer 2 network loops on a per-VLAN basis. For the SLPP Tx process, the network administrator decides on which VLANs to enable SLPP. The hello packets are then replicated out all ports that are members of the SLPP-enabled VLAN.

    Given the following information shown in the exhibit: A = InterSwitch Trunk (IST) B = Split MultiLink Trunk (SMLT) # 1 VSP 9000 # 2 VSP 9000 # 3 ERS 4500

    When setting up the SLPP Rx process, which configuration role is setup on VSP #1?

    A. The VSP #1 Rx process is enabled on all SMLT VLANs to monitor for the ERS #3 SLPP packets.

    B. The VSP #1 Rx process is enabled on port 3/1 and the IST ports to monitor for the VSP #2 SLPP packets.

    C. The VSP # 1 Rx process is enabled on all SMLT VLANs to monitor for the VSP # 2 SLPP packets.

    D. The VSP # 1 RX process is enabled on port 3/1 to monitor VSP # 1 and VSP #2 SLPP packets.

  • Question 16:

    Which statement about the local router MAC addresses on RSMLT aggregation switches (cluster) is true?

    A. On a RSMLT aggregation switch pair, local router MAC addresses are exchanged, and only used in case of switch failure.

    B. On a RSMLT aggregation switch pair, local router MAC addresses are exchanged, and always used for data forwarding.

    C. On a RSMLT aggregation switch pair, the virtual MAC address is exchanged, and used for data forwarding.

    D. RSMLT aggregation switches are not exchanging local router MAC addresses, but are using the IP destination address to forward traffic.

  • Question 17:

    Which CLI command is used to allow the non-secure (HTTP) web interface?

    A. web-server enable

    B. web secure disable

    C. no web secure-only

    D. config web secure enable

  • Question 18:

    What will the boot flag ftpd do to your system on startup?

    A. enable the FTP Server daemon

    B. disable the FTP Server daemon

    C. allow the TFTP transfer of configs D. allow FTP traffic the highest DSCP

  • Question 19:

    On the VSP 9000, there are a maximum of 256 VRRP instances per VRF. What is the maximum number of instances that are allowed on the system?

    A. 256

    B. 512

    C. 768

    D. 1024

  • Question 20:

    Once you have enabled the web server within the system for EDM access, what is the syntax to allow only secure connections?

    A. web-server secure-only

    B. web-server ssh enable

    C. web-server secure enable

    D. web-server ssh session only
