• Question 471:

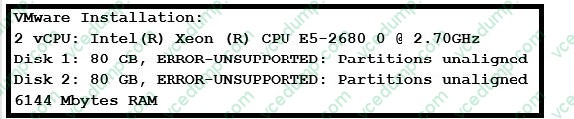

  Refer to the exhibit. The CLI output displayed when an IT engineer upgraded Cisco Unified Communications Manager to version 9.1.2. Which three actions must be taken to correct the issue? (Choose three.)



  A. Download Cisco Unified CM Recovery ISO, boot the virtual machine from it, and verify the disk partitioning layout.
  B. Create a new virtual machine with the Cisco OVA template and do a fresh install with the Cisco Unified CM bootable Iso.
  C. From the Recovery Disk Menu options, select option [F] to check and correct disk file system.
  D. Take a backup of the system with Disaster Recovery System.
  E. From the Recovery Disk Menu options, select [A] to align the partitions of the virtual machine.
  F. From the Recovery Disk Menu options, select [Q] to quit recovery program and reboot the virtual machine.
  G. Log in to the DRS and perform a Cisco Unified CM restore from the backup.
  B. Create a new virtual machine with the Cisco OVA template and do a fresh install with the Cisco Unified CM bootable Iso.
  D. Take a backup of the system with Disaster Recovery System.
  G. Log in to the DRS and perform a Cisco Unified CM restore from the backup.

• Question 472:

  Which statement about the effective path in the Enhanced Location Call Admission Control mechanism on Cisco Unified Communications Manager is true?

  A. It is a sequence of links and intermediate locations that connect a pair of locations.
  B. It is used to define the bandwidth that is available between locations.
  C. Only one effective path is used between two locations.
  D. There could be multiple effective paths between a pair of locations.
  E. It logically represents the WAN link.
  C. Only one effective path is used between two locations.

  ---

  The effective path is the path used by Unified CM for the bandwidth calculations, and it has the least cumulative weight of all possible paths. Weights are used on links to provide a "cost" for the "effective path" and are pertinent only when there is more than one path between any two locations.

• Question 473:

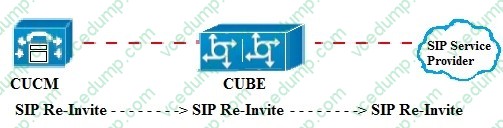

  Refer to the exhibit. The SIP service provider does not support re-invites unless media changes. Which two commands are needed on the CUBE to satisfy the SIP service provider's requirement?



  A. media anti-trombone
  B. midcall-signaling block
  C. midcall-signaling preserve-codec
  D. media flow-around
  E. midcall-signaling passthru media-change
  F. media flow-through
  B. midcall-signaling block
  E. midcall-signaling passthru media-change

• Question 474:

  Drag and Drop

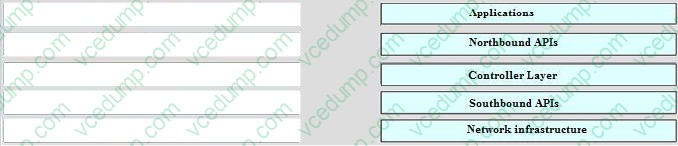

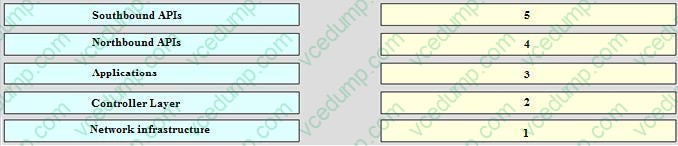

  Drag and drop the logical components of a traditional SDN infrastructure into the correct order.

  Similar to open system interconnection model (OSI model), working your way up from the network infrastructure layer.

  Select and Place:





• Question 475:

  Which two softkeys can be offered on a Cisco IP Phone 7965, running SCCP firmware, when it is in Connected Conference state? (Choose two)

  A. EndCall
  B. Trnsfer
  C. Join
  D. RmLstC
  E. Select
  F. Confrn
  A. EndCall
  F. Confrn

• Question 476:

  Which SIP message element is mapped to QSIG FACILITY messages being tunneled across a SIP trunk between two Cisco IOS gateways?

  A. SIP UPDATE
  B. SIP OPTIONS
  C. SIP SUBSCRIBE
  D. SIP INFO
  E. SIP NOTIFY
  D. SIP INFO

  ---

  Mapping of QSIG Message Elements to SIP Message Elements

  This section lists QSIG message elements and their associated SIP message elements when QSIG messages are tunneled over a SIP trunk.

  ?QSIG FACILITY/NOTIFY/INFO

  <-->

  SIP INFO

  ?QSIG SETUP

  <-->

  SIP INVITE

  ?QSIG ALERTING

  <-->

  SIP 180 RINGING

  ?QSIG PROGRESS

  <-->

  SIP 183 PROGRESS

  ?QSIG CONNECT <--> SIP 200 OK ?QSIG DISCONNECT <--> SIP BYE/CANCEL/4xx--6xx Response

  References: http://www.cisco.com/c/en/us/td/docs/ios/voice/sip/configuration/guide/15_0/sip_15_0_book/tunneling_qsig.html

• Question 477:

  Refer to the exhibit.

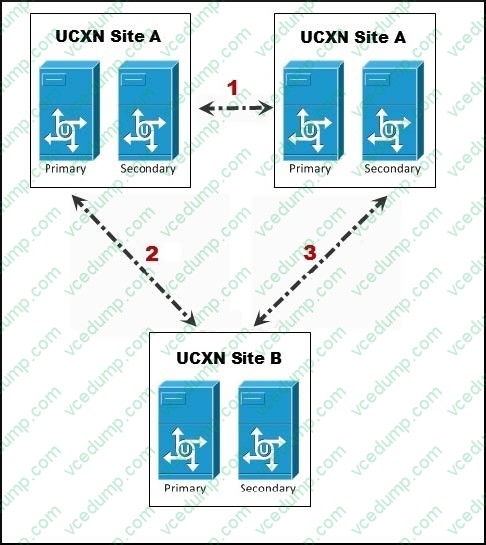

  Cisco Unity Connection Site A has two locations. Cisco Unity Connection Site B has one location. Which protocols connect the locations and servers together for messaging and replication?

  A. 1 - SMTP 2 - HTTP/HTTPS, SMTP 3 - None
  B. 1 ?SMTP 2 ?SMTP 3 - SMTP
  C. 1 - HTTP/HTTPS, SMTP 2 - HTTP/HTTPS, SMTP 3 - HTTP/HTTPS, SMTP
  D. 1 - HTTP/HTTPS, SMTP 2 ?SMTP 3 ?None
  A. 1 - SMTP 2 - HTTP/HTTPS, SMTP 3 - None

  ---

  You can join two or more Connection servers or clusters (up to a maximum of ten) to form a well-connected network, referred to as a Connection site. The servers that are joined to the site are referred to as locations. (When a Connection cluster is configured, the cluster counts as one location in the site.) Within a site, each location uses SMTP to exchange directory synchronization information and messages directly with every other location. Each location is said to be linked to every other location in the site via an intrasite link. When you link two Cisco Unity Connection sites with an intersite link, the gateway for each site is responsible for collecting information about all changes to the local site directory, and for polling the remote site gateway periodically to obtain information about updates to the remote site directory. The gateways use the HTTP or HTTPS protocol to exchange directory synchronization updates.

  References: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/8x/networking/guide/8xcucnetx/8xcucnet010.html

• Question 478:

  A company is decommissioning a site where a Cisco Unity Connection cluster resides. This cluster is part of a larger network of Unity Connection servers linked using HTTPS networking. Which three steps remove the site from the network? (Choose three.)

  A. Determine if the Unity Connection cluster to be decommissioned sits between the hub and another Unity Connection site in the hub-and-spoke topology.
  B. Remove the Unity Connection primary server from the HTTPS network on each node in the cluster.
  C. Remove all servers in the Unity Connection cluster from the other clusters in the HTTPS network.
  D. Update any downstream Unity Connection locations so that they link with a Unity Connection that will continue to have access to the hub location.
  E. Remove the existing link to the remaining Unity Connection locations subtree and add new links to locations that will remain connected to the hub.
  F. Update any remote call handlers and interview handlers that targeted the users on the location as well as any location downstream from the commissioned site to be removed.
  A. Determine if the Unity Connection cluster to be decommissioned sits between the hub and another Unity Connection site in the hub-and-spoke topology.
  E. Remove the existing link to the remaining Unity Connection locations subtree and add new links to locations that will remain connected to the hub.
  F. Update any remote call handlers and interview handlers that targeted the users on the location as well as any location downstream from the commissioned site to be removed.

• Question 479:

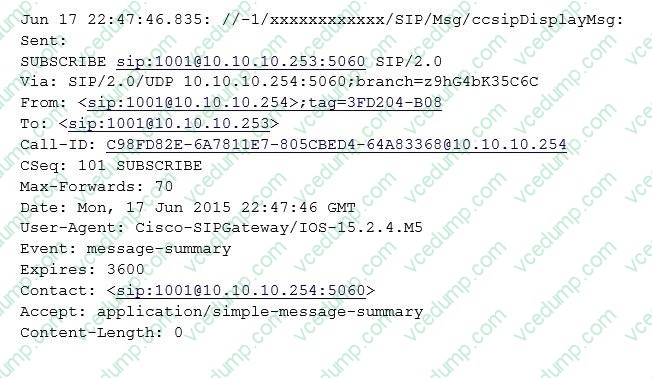

  Refer to the exhibit. Which description of the event captured in the SIP message between a Cisco Unified Communications Manager Express router and Cisco Unity Express is true?



  A. An SIP IP phone initialed this SIP message to Cisco Unity Express for MWI to request MWI information.
  B. The Cisco UCM Express router initialed this SIP message in response to an earlier solicitation from Cisco Unity Express for MWI information.
  C. The Cisco UCM Express router forwarded this SIP message, originated from a registered SIP IP phone, to Cisco Unity Express to request MWI information.
  D. The Cisco UCM Express router initialed this SIP message to Cisco Unity Express for message notifications.
  E. An SIP IP phone initiated this message to the Cisco UCM Express router to request MWI information.
  E. An SIP IP phone initiated this message to the Cisco UCM Express router to request MWI information.

• Question 480:

  Refer to the exhibit.

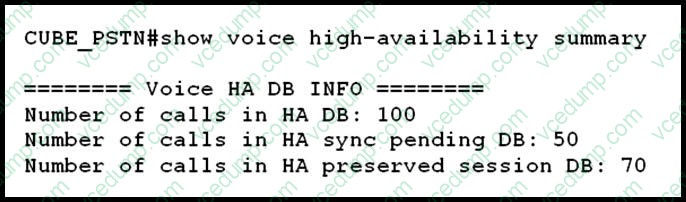

  The Cisco Unified Border Element is configured using high availability with the Hot Standby Routing Protocol. Which two pieces of information can be gathered about the calls traversing these border elements? (Choose two.)

  A. The total number of calls is 150.
  B. The number of nonnative calls is 70.
  C. The number of native calls is 50.
  D. The number of calls preserved is 220.
  E. The total number of active calls is 100.
  A. The total number of calls is 150.
  B. The number of nonnative calls is 70.
