Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 1:

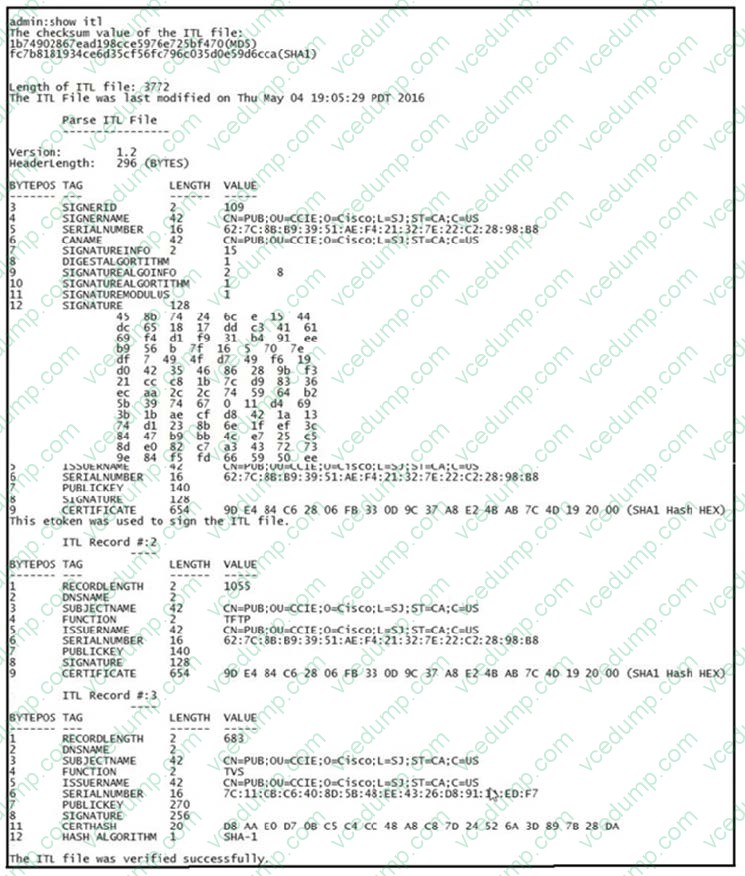

  Refer to the exhibit. Which statement describes the Cisco Unified Communications Manager (UCM) that produced the Identity Trust List (ITL) records shown in the exhibit?



  A. This server is a member of a mixed mode cluster that uses tokenless solution
  B. IP Phones registered to this server have neither ITL or CTL files installed
  C. This server is a member of a mixed mode cluster that uses hardware USB eToken
  D. IP Phones registered to this server have both ITL and CTL files installed
  E. IP Phones registered to this server have only ITL file installed
  D. IP Phones registered to this server have both ITL and CTL files installed

• Question 2:

  What is the maximum number of Cisco Unified Communications Manager subscriber pairs in a megacluster deployment?

  A. 2
  B. 4
  C. 6
  D. 8
  D. 8

• Question 3:

  Which of following SIP reason phrase maps to SIP response reason code 181?

  A. Call is Being Forwarded
  B. Session in Progress
  C. Call Does not Exist
  D. Ringing
  A. Call is Being Forwarded

• Question 4:

  Which of the following Cisco IOS-XE dial-peer commands has the highest preference for inbound SIP dial-peer matching?

  A. Destination-pattern
  B. Incoming called-number
  C. Incoming URI calling
  D. Incoming calling-number e164-pattern-map
  C. Incoming URI calling

• Question 5:

  Which option describes how you can show the same contacts in your Jabber for Windows on-premise client as you do on the corporate directory of your IP phone?

  A. Switch your Jabber client to use UDS instead of EDI.
  B. Switch your Jabber client to use EDI instead of UDS.
  C. Update your IMandP server to sync off of the same LDAP directory as your Cisco Unified Communications Manager.
  D. Add Jabber to your inbound/outbound firewall rules on your PC.
  E. Jabber can only pull directly from LDAP and cannot directly search the Cisco Unified Communications Manager user database.
  A. Switch your Jabber client to use UDS instead of EDI.

  ---

  explanation:

  LDAP contact resolution -- The client cannot use LDAP for contact resolution when outside of the corporate firewall. Instead, the client must use UDS for contact resolution. When users are inside the corporate firewall, the client can use either UDS or LDAP for contact resolution. If you deploy LDAP within the corporate firewall, Cisco recommends that you synchronize your LDAP directory server with Cisco Unified Communications Manager to allow the client to connect with UDS when users are outside the corporate firewall.

  References: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/JABW_BK_C4C679C9_00_cisco-jabber-for-windows-97/JABW_BK_C4C679C9_00_cisco-jabber-for-windows97_chapter_0111.html#CJAB_CN_C2733196_00

• Question 6:

  Which three statements about configuring partitioned intradomain federation to Lync are true? (Choose three.)

  A. Intradomain federation to Lync is only possible using SIP.
  B. IMandP and Lync should federate to any required remote domains.
  C. You must update the URIs of any users migrated from Lync to IMandP to match the Cisco Unified Presence Server SIP URI format.
  D. A static route must be added to point the local presence domain to the Lync server.
  E. Microsoft RCC must be enabled.
  F. The Enable use of Email Address when Federating option can be turned on if SIP URIs are different between IMandP and Lync.
  A. Intradomain federation to Lync is only possible using SIP.
  C. You must update the URIs of any users migrated from Lync to IMandP to match the Cisco Unified Presence Server SIP URI format.
  D. A static route must be added to point the local presence domain to the Lync server.

  ---

  explanation:

  Please refer to the link for more information: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cups/8_6/english/integration_notes/Federation/Intradomain_Federation/Partitioned_Intradomain_Federation/InterdomainFederation.html

• Question 7:

  Which three issues prevent a customer from seeing the presence status of a new contact in their Jabber contact list? (Choose three.)

  A. incoming calling search space on SIP trunk to IMandP
  B. IMandP incoming ACL blocking inbound status
  C. subscribe calling search space on SIP trunk to IMandP
  D. PC cannot resolve the FQDN of IMandP
  E. Owner user ID is not set on device.
  F. Primary DN is not set in end user configuration for that user.
  G. Subscriber calling search space is not defined on user's phone.
  B. IMandP incoming ACL blocking inbound status
  C. subscribe calling search space on SIP trunk to IMandP
  D. PC cannot resolve the FQDN of IMandP

  ---

  explanation:

  References: http://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-presence/97443-cups-cupc-ts.html

• Question 8:

  Two Jabber clients are unable to pass instant messages between each other. What is the appropriate next step?

  A. Review XCP router logs.
  B. Open port 5060 on the firewalls between the PCs and the IMandP servers.
  C. Review SIP proxy logs.
  D. Review Help > Show Connection Status in each Jabber client, and pull logs as necessary.
  A. Review XCP router logs.

  ---

  explanation:

  The XCP Router is the core communication functionality on the Cisco Unified Presence server. It provides XMPP-based routing functionality on Cisco Unified Presence; it routes XMPP data to the other active XCP services on Cisco Unified Presence, and it accesses SDNS to allow the system to route XMPP data to Cisco Unified Presence users. The XCP router manages XMPP sessions for users, and routes XMPP messages to and from these sessions.

• Question 9:

  Which three services must be stopped to change the IM and Presence service default domain setting of DOMAIN.NOT.SET? (Choose three.)

  A. Cisco XCP Router
  B. Cisco Intercluster Sync Agent
  C. Cisco XCP Authentication Service
  D. Cisco SIP Proxy
  E. Cisco Presence Engine
  F. Cisco AXL Web service
  A. Cisco XCP Router
  D. Cisco SIP Proxy
  E. Cisco Presence Engine

  ---

  explanation:

  Change the Domain Value

  Follow this procedure if you want to change the domain value (from one valid domain value to another valid IP proxy domain value).

  This procedure is applicable if you have a DNS or non-DNS deployment.

  Procedure

  Step 1 Stop the Cisco SIP Proxy, Presence Engine and XCP Router services on IM and Presence on all nodes in your cluster.

  Step 2 On the publisher node, perform the following steps to configure the new domain value:

  a.

  Select IM and Presence Administration > System > Cluster Topology.

  b.

  In the right pane, select Settings.

  c.

  Configure the Domain Name value with the new domain.

  a.

  Select IM and Presence Administration > System > Service Parameters, and select the Cisco SIP Proxy service.

  b.

  Configure the Federation Routing IM and Presence FQDN with the new domain.

  c.

  You will be prompted to confirm these configuration changes. Select OK for both prompts, and then select Save.

  Step 3 On all nodes in the cluster, use this CLI command to set the new domain:

  set network domain

  This CLI command invokes a reboot of the servers.

  Step 4 On all nodes in the cluster, manually start the Cisco Presence Engine and Cisco XCP Router services after the reboot is complete (if required).

  Step 5 Manually regenerate all certificates on each node in the cluster.

  Reference: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/ip_address_hostname/9_0_1/IM_P_IPChange/sip_domain.html

• Question 10:

  Which two settings should be configured on the SIP Trunk Security Profile for the IM and Presence Service SIP Trunk? (Choose two.)

  A. Check to enable Accept Presence Subscription.
  B. Verify that the setting for Incoming Transport Type is TCP+UDP.
  C. Configure Device Security Mode to Encrypted.
  D. Check to enable Enable Application Level Authorization.
  E. Configure the Outgoing Transport Type to TLS.
  A. Check to enable Accept Presence Subscription.
  B. Verify that the setting for Incoming Transport Type is TCP+UDP.

  ---

  explanation:

  Configure SIP Trunk Security Profile for IM and Presence Service Procedure



  References: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/9_0/CUP0_BK_CFF5B189_00_config-admin-guide-imp-90/CUP0_BK_CFF5B189_00_config-admin-guide-imp-90_chapter_0101.html
