Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 571:

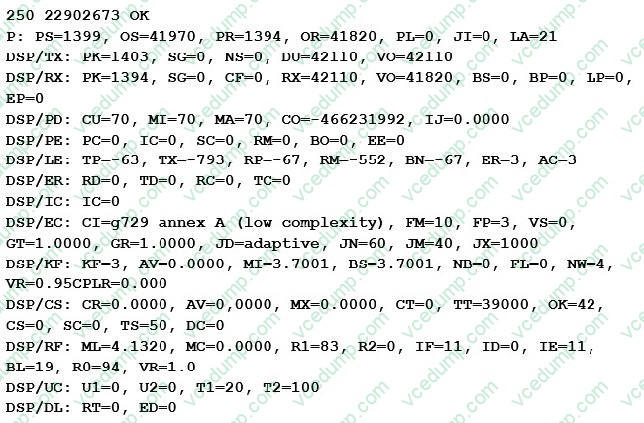

  Refer to the exhibit. Which option is the MOS value in this Cisco IOS snippet?



  A. 0.0000
  B. 3.7001
  C. 3
  D. 4.1320
  E. 1.0000
  B. 3.7001

• Question 572:

  Which two responses are examples of client error responses in SIP protocol? (Choose two.)

  A. 302 Moved Temporarily
  B. 404 Not Found
  C. 503 Service Unavailable
  D. 502 Bad Gateway
  E. 604 Does Not Exist Anywhere
  F. 408 Request Timeout
  B. 404 Not Found
  F. 408 Request Timeout

  ---

  Client Error (400 to 499)--Request contains bad syntax or cannot be fulfilled at this server. This class of 400 to 499 contains only error messages.

• Question 573:

  Which statement about what happens to incoming calls to a Cisco Unified Communications Manager native call queue when no hunt members are logged in or registered is true?

  A. Calls are handled according to the Forward Hunt No Answer settings on the Hunt Pilot configuration page.
  B. Calls are handled according to the Not Available Hunt Option settings on the Line Group Configuration page.
  C. Calls are handled according to the Forward Hunt Busy settings on the Hunt Pilot configuration page.
  D. Calls are forward to the Forward Busy Calls To destination if configured; otherwise the calls are disconnected.
  E. Calls are handled according to the correspondent parameters under the Queuing section on the Hunt Pilot Configuration page.
  E. Calls are handled according to the correspondent parameters under the Queuing section on the Hunt Pilot Configuration page.

  ---

  There are three main scenarios where alternate numbers are used: When queue is full When maximum wait time is met When no hunt members are logged in or registered When queue is full Call Queuing allows up to 100 callers to be queued per hunt pilot (the maximum number of callers allowed in queue on a hunt pilot page). Once this limit for new callers been reached on a particular hunt pilot, subsequent calls can be routed to an alternate number. This alternate number can be configured through the Hunt Pilot configuration page (through the "Destination When Queue is Full" settings). When maximum wait time is met Each caller can be queued for up to 3600 seconds per hunt pilot (the maximum wait time in queue). Once this limit is reached, that caller is routed to an alternate number. This alternate number can be configured through the Hunt Pilot configuration page (through the "Maximum wait time in queue" settings). When no hunt members are logged in or registered In a scenario where none of the members of the hunt pilot are available or registered at the time of the call, hunt pilot configuration provides an alternate number field (through the "When no hunt members are logged in or registered" settings) where calls can be routed. For Call Queuing, a hunt pilot member is considered available if that member has both deactivated do not disturb (DND) and logged into the hunt group. In all other cases, the line member is considered unavailable or logged off.

  References: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_0_1/ccmfeat/CUCM_BK_CEF0C471_00_cucm-features-services-guide-90/CUCM_BK_CEF0C471_00_cucm-features-and-services-guide_chapter_0111.html

• Question 574:

  Which two steps must be taken when configuring EMCC? (Choose two.)

  A. An SFTP server that all clusters share must be set up.
  B. Certificates from all remote clusters must be imported into each cluster.
  C. Cross-cluster Enhanced Location CAC must be configured.
  D. End users must be configured to only exist in their home cluster.
  E. A device pool for EMCC phones must be configured.
  F. Define MLPP domains.
  A. An SFTP server that all clusters share must be set up.
  B. Certificates from all remote clusters must be imported into each cluster.

• Question 575:

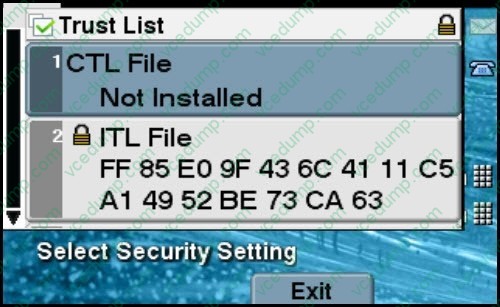

  Refer to the exhibit.



  Which two phone security functions are available to this Cisco IP phone? (Choose two.)

  A. default Authentication of TFTP downloaded files using a signing key
  B. encryption of TFTP configuration files using a signing key
  C. encrypted call signaling but unencrypted call media
  D. encrypted call media but unencrypted call signaling
  E. encrypted call signaling and media
  F. local trust verification on the phone
  A. default Authentication of TFTP downloaded files using a signing key
  B. encryption of TFTP configuration files using a signing key

• Question 576:

  Which statement about Cisco EnergyWise domain member neighbor formation is true?

  A. Cisco EnergyWise supports static neighbors, but the neighbor relationship is only possible if a noncontiguous domain member and a contiguous domain member have a static neighbor entry pointing to each other.
  B. Cisco EnergyWise static neighbors can be formed even if domain members are not physically contiguous.
  C. Static neighbors can be manually defined on Cisco EnergyWise domain members, but TCP protocols must be used.
  D. Static neighbors can be manually defined on Cisco EnergyWise domain members, but they have a lower priority compared to the autodiscovered members.
  E. Static neighbors can be manually defined on Cisco EnergyWise domain members and the TCP or UDP protocol can be used.
  B. Cisco EnergyWise static neighbors can be formed even if domain members are not physically contiguous.

  ---

  References: http://www.cisco.com/en/US/docs/solutions/Enterprise/Borderless_Networks/Energy_Management/energywisedg.html?referring_site=smartnavRD#wp554384

• Question 577:

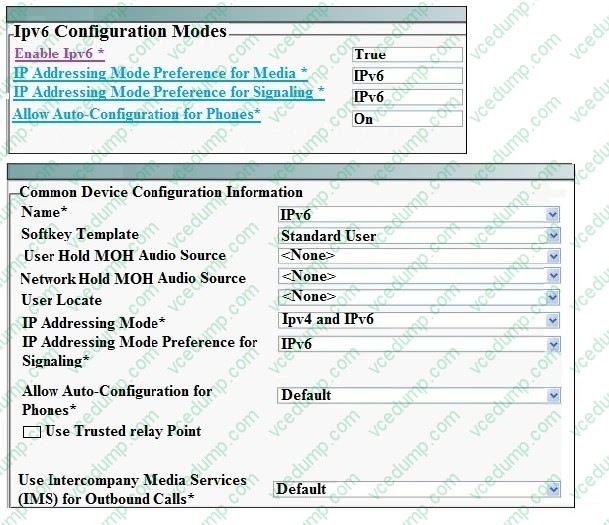

  Refer to the exhibit. The common device configuration has been assigned to an IPv4 only phone. Which statement describes what happens when the phone attempts to register with Cisco Unified Communications Manager?



  A. The IP phone uses SLAAC to acquire an IPv6 address and override the limitation
  B. The IP phone registers with the IPv4 address
  C. The IP phone invokes MTP to translate from IPv4 to IPv6
  D. The IP phone displays the message "Registration rejected" because it cannot support IPv6.
  B. The IP phone registers with the IPv4 address

• Question 578:

  A collaboration engineer has set up SAF on a Cisco IOS router to advertise and accept SAF information during a maintenance window. Which two commands enable this functionality? (Choose two.)

  A. enroll callcontrol wildcarded
  B. advertise callcontrol 1
  C. subscribe callcontrol wildcarded
  D. register callcontrol wildcarded
  E. publish callcontrol 1
  F. distribute callcontrol 1
  C. subscribe callcontrol wildcarded
  E. publish callcontrol 1

• Question 579:

  Which of the following Cisco IOS-XE dial-peer commands has the lowest preference for inbound H.323 dial-peer matching?

  A. Destination-pattern
  B. Incoming called-number
  C. Incoming calling-number e164-pattern-map
  D. Answer-address
  E. Incoming URI calling
  A. Destination-pattern

• Question 580:

  Which 802.11e user priority value maps to Per Hop Behavior (PHB) CS3 for classification of voice and video control traffic?

  A. 5
  B. 2
  C. 3
  D. 6
  E. 4
  A. 5
