Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 461:

  Drag and Drop

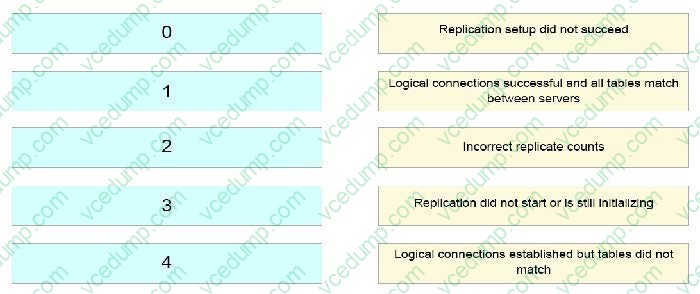

  Drag and drop the Cisco Unified CM database replication status values on the left to the correct replication status definition on the right.

  Select and Place:





• Question 462:

  Which SIP response is considered a final response?

  A. 183 Session in Progress
  B. 199 Early Dialog Terminated
  C. 200 OK
  D. 180 Ringing
  E. 100 Trying
  C. 200 OK

  ---

  200 OK Indicates the request was successful. Whether other options state the request is still in progress or request is initiated.

• Question 463:

  Which two settings should be configured on the SIP Trunk Security Profile for the IM and Presence Service SIP Trunk? (Choose two.)

  A. Check to enable Accept Presence Subscription.
  B. Verify that the setting for Incoming Transport Type is TCP+UDP.
  C. Configure Device Security Mode to Encrypted.
  D. Check to enable Enable Application Level Authorization.
  E. Configure the Outgoing Transport Type to TLS.
  A. Check to enable Accept Presence Subscription.
  B. Verify that the setting for Incoming Transport Type is TCP+UDP.

  ---

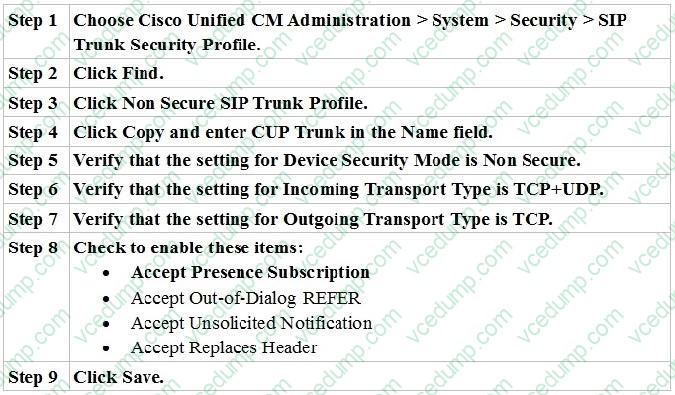

  Configure SIP Trunk Security Profile for IM and Presence Service Procedure



  References: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/9_0/CUP0_BK_CFF5B189_00_config-admin-guide-imp-90/CUP0_BK_CFF5B189_00_config-admin-guide-imp-90_chapter_0101.html

• Question 464:

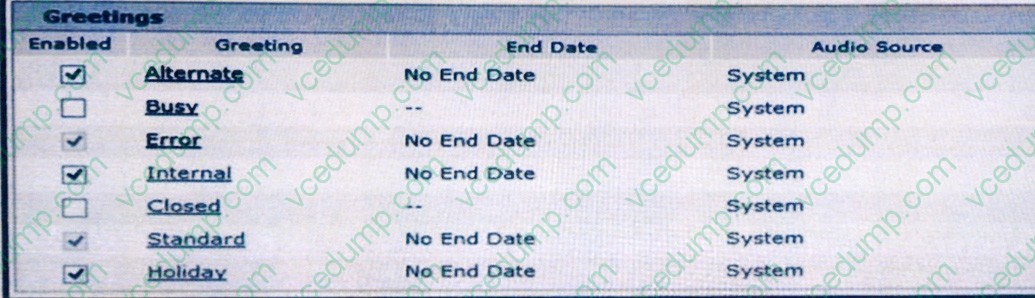

  Refer to the exhibit.



  A voicemail administrator was asked to create a call handler for the sales department with the following requirements:

  After creating the call handler and making some test calls only the default system greeting is heard.

  Which four configuration changes are needed to company with this business request? (Choose four.)

  A. disable the Alternate Greeting under Call Handler Greetings
  B. create a new closed schedule and assign it to the sales Call Handler
  C. record a new Greeting and assign it to the Alternate Greeting
  D. record a new Greeting and assign it to the Holiday Greeting
  E. record a new Greeting and assign it to the Internal Greeting
  F. create a new holiday schedule to be used by the Holiday Greeting
  G. disable the Internal Greeting under Call Handler Greeting
  H. enable the Closed Greeting under Call Handler Greetings
  C. record a new Greeting and assign it to the Alternate Greeting
  D. record a new Greeting and assign it to the Holiday Greeting
  E. record a new Greeting and assign it to the Internal Greeting
  F. create a new holiday schedule to be used by the Holiday Greeting

• Question 465:

  A Cisco Unified Contact Center Express manager wants to add database integration to the selfservice interactive voice response application. Which four types of licensing and database servers support this requirement? (Choose four.)

  A. The server must have enhanced licensing.
  B. The server must have premium licensing.
  C. A server running Sybase Adaptive Server is required.
  D. A server running Oracle is required.
  E. A server running Postgress SQL is required.
  F. A server running SAP SQL server is required.
  G. A server running Microsoft SQL server is required.
  H. The server must have standard licensing.
  B. The server must have premium licensing.
  C. A server running Sybase Adaptive Server is required.
  D. A server running Oracle is required.
  G. A server running Microsoft SQL server is required.

• Question 466:

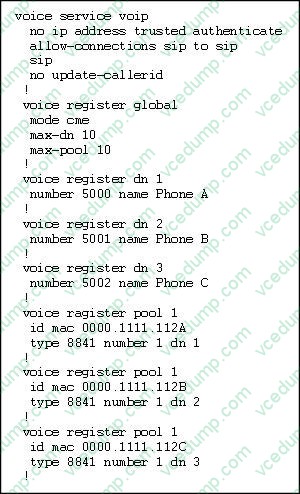

  Refer to the exhibit.



  An engineer is trying to provision an CUCME with three 8841 phones. However all phones fail to register. Which two changes in the configuration would allow the phones to register? (Choose two.)

  A. The registrar server command must be added under the VOICE register global configuration.
  B. The IP address trusted authenticate command must be added under voice service voip.
  C. The source-address command must be added under the voice register global configuration.
  D. The local SIP proxy address must be configuration under the sip-ua configuration.
  E. The registrar server command must be added under the sip section of voice service voip.
  C. The source-address command must be added under the voice register global configuration.
  E. The registrar server command must be added under the sip section of voice service voip.

• Question 467:

  Which Cisco IOS-XE dial-peer command has the lowest preference for inbound POTS dial-peer matching?

  A. Carrier-id source
  B. Answer-address
  C. Port
  D. Destination-pattern
  E. Incoming called-number
  C. Port

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/voice/ip-telephony-voice-over-ip-voip/211306-In-Depth-Explanation-of-Cisco-IOS-and-IO.html#anc8

• Question 468:

  A Cisco Unified CM administrator configured the phone VPN for the remote users. The remote users cannot see their missed calls. Which two configurations changes fix this problem? (Choose two)

  A. Enable Log Missed Calls in the phone line in Cisco Unified CM.
  B. Configure a Log Server in the Common Phone profile in Cisco Unified CM.
  C. Configure the webvpn-attributes in the Cisco ASA tunnel group.
  D. Enable Password Persistence in the VPN profile in Cisco Unified CM.
  E. Configure an Alternate TFTP in the remote phone.
  A. Enable Log Missed Calls in the phone line in Cisco Unified CM.
  E. Configure an Alternate TFTP in the remote phone.

• Question 469:

  Which Cisco Unified CM service is responsible for writing Call Detail Records into flat files?

  A. Cisco CallManager
  B. Cisco CDR Agent
  C. Cisco CDR Repository Manager
  D. Cisco SOAP ?CallRecord Service
  E. Cisco Extended Functions
  A. Cisco CallManager

• Question 470:

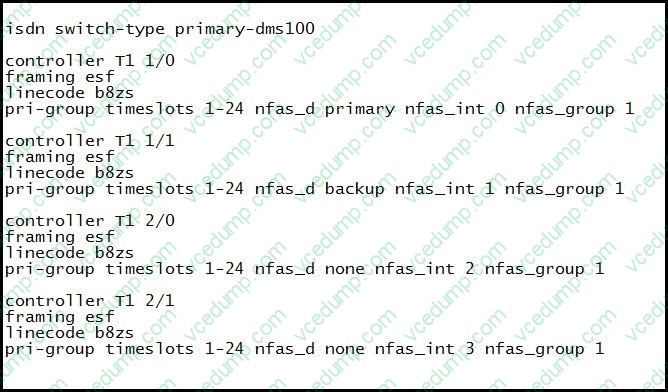

  Refer to the exhibit.



  From this NFAS-enabled T1 PRI configuration on a Cisco IOS router, how many bearer channels are available to carry voice traffic?

  A. 91
  B. 92
  C. 93
  D. 94
  E. 95
  D. 94

  ---

  In this configuration controller T1/0 (primary) and T1/1 (backup) have each 23 available B channels, because one channel in each controller is reserved respectively for primary and backup D channel for signaling control. T2/0 and T2/1 each have 24 B channels available. So the correct answer should be 94.
