Cisco 352-001 Online Questions & Answers

• Question 681:

  You are designing a NAC OOB Layer 3 Real-IP Gateway deployment for a customer. Which VLAN must be trunked back to the Clean Access Server from the access switch?

  A. untrusted VLAN
  B. user VLAN
  C. management VLAN
  D. authentication VLAN
  A. untrusted VLAN

• Question 682:

  Across a large WAN network, there will be new video traffic being distributed from a single source at any given time however, the video source might originate from different parts of the multicast domain at different times . Which multicast technology provides for this multicast traffic to be distributed with optimal path selection to the source?

  A. Any source Multicast.
  B. PIM sparse mode.
  C. Bidirectional PIM.
  D. Source Specific Multicast.
  D. Source Specific Multicast.

• Question 683:

  Which statement about TAP and TUN devices, which are used in a Linux/KVM cloud deployment model, is true?

  A. TUN is for handling Ethernet frames, but TAP is for handling IP packets.
  B. TUN is for handling IP packets, but TAP is for handling Ethernet frames.
  C. TUN is for tunneling Ethernet frames, but TAP is for tapping Ethernet frames.
  D. TUN is for tunneling IP packets, but TAP is for tapping IP packets.
  B. TUN is for handling IP packets, but TAP is for handling Ethernet frames.

• Question 684:

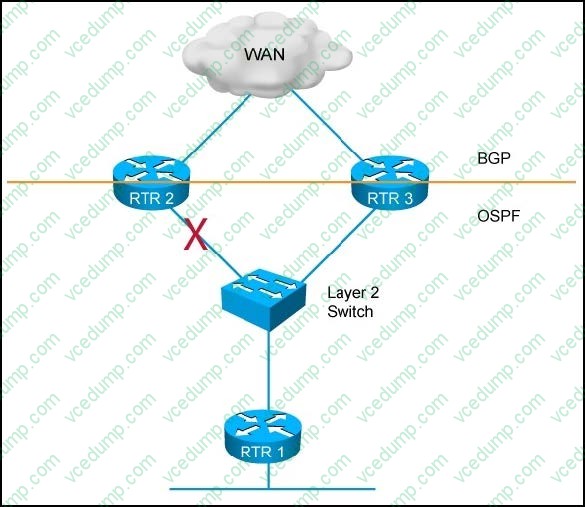

  Refer to the exhibit.



  RTR 1 uses RTR 2 as the primary WAN exit point. When a failure occurs in the link connected to RTR 2 LAN, it takes about 40 seconds for RTR 1 to use the backup path via RTR 3.

  Which two mechanisms can be used independently to improve the failure detection time to 1 second or less when RTR 1 failover to RTR3? (Choose two.)

  A. Configure EEM on RTR 2.
  B. Change OSPF throttling timer.
  C. Use BFD with OSPF between RTR 1 and RTR 2.
  D. Use BFD with OSPF between RTR 2 and RTR 3.
  E. Tune OSPF fast hello on all the routers.
  C. Use BFD with OSPF between RTR 1 and RTR 2.
  E. Tune OSPF fast hello on all the routers.

• Question 685:

  Senior management wants you to evaluate the risks to your network of offering VPWS, VPLS, GRE, or other tunneling services to your fiber-connected client base. Clients indicate that they prefer to use Layer 2 switches as CEs. Which two tunneling services expose your network to minimal risk and meet the clients' needs, including separation between providers and customer networks? (Choose two.)

  A. VPWS
  B. 802.1Q
  C. GRE
  D. VPLS
  E. QinQ
  A. VPWS
  E. QinQ

• Question 686:

  Which three statements are correct for route filtering? (Choose three.)

  A. The OSPF router LSA can be filtered with route maps so they are not installed on the OSPF database.
  B. Route filtering can create suboptimal routing, thus increasing latency in the network.
  C. Inbound route filtering affects outbound traffic flow.
  D. By default, EIGRP filters topology information at every hop in the network.
  E. IS-IS filters reachability information from the Level 1 to Level 2 domain.
  F. By default, EIGRP filters the reachability information at every hop in the network.
  B. Route filtering can create suboptimal routing, thus increasing latency in the network.
  C. Inbound route filtering affects outbound traffic flow.
  D. By default, EIGRP filters topology information at every hop in the network.

• Question 687:

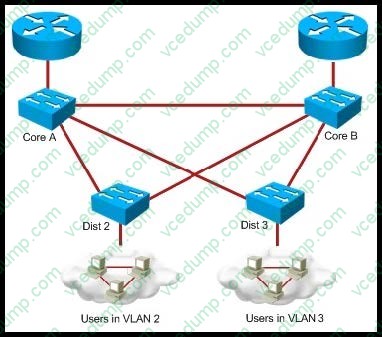

  Refer to the exhibit.



  You are designing a spanning-tree network for a small campus. Which two of these options would result in a trouble-free spanning-tree network design? (Choose two.)

  A. Convert all ports to trunk ports, prune off the VLANs that you do not require, and minimize the number of blocking ports.
  B. Introduce Layer 3 VLANs (SVIs) and prune off the VLANs that you do not require.
  C. Convert all the ports to trunk and enable BackboneFast.
  D. Convert all the ports to trunk and enable UplinkFast between all the links.
  A. Convert all ports to trunk ports, prune off the VLANs that you do not require, and minimize the number of blocking ports.
  B. Introduce Layer 3 VLANs (SVIs) and prune off the VLANs that you do not require.

• Question 688:

  Your company experienced a number of network incidents that had a significant impact on business operations.

  Because a root cause cannot be identified, your CTO asks you to help the network management team implement the FCAPS framework. On which two areas would you provide guidance to the network management team? (Choose two.)

  A. change management
  B. accounting management
  C. service level management
  D. fault management
  B. accounting management
  D. fault management

• Question 689:

  You are the Cisco Network Designer in testking.com. In your company site, a NAS is both physically and logically in the traffic path. The NAS identifies clients solely based on their MAC addresses. In which access mode has this NAS been configured to operate?

  A. Layer 2 mode
  B. Layer 3 mode
  C. Layer 3 In-Band mode
  D. Layer 2 Edge mode
  A. Layer 2 mode

• Question 690:

  Which two statements accurately describe QoS in MPLS VPN (RFC 2547bis) networks? (Choose two.)

  A. MPLS QoS is a scalable and simple solution because it only requires application at the Edge-LSR.
  B. MPLS can force packets into specific paths and bandwidths based on Edge-LSR mapping of DSCP to EXP.
  C. DiffServ information must be made known to the LSR in the MPLS header using the EXP field.
  D. On egress from the Edge-LSR, the EXP field is used for PHB QoS towards the CE.
  B. MPLS can force packets into specific paths and bandwidths based on Edge-LSR mapping of DSCP to EXP.
  C. DiffServ information must be made known to the LSR in the MPLS header using the EXP field.
