Cisco 352-001 Online Questions & Answers

• Question 591:

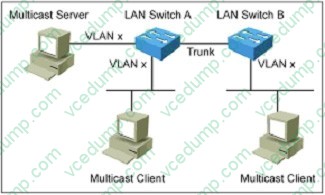

  Refer to the exhibit. Which two features can be used to make multicast work in this situation? (Choose two.)



  A. Disable IGMP snooping on both switches
  B. Disable the IGMP query election process
  C. Enable the IGMP querier feature on LAN switch A
  D. Configure a static MAC entry for the multicast server
  E. Disable PIM snooping on both switches
  C. Enable the IGMP querier feature on LAN switch A
  D. Configure a static MAC entry for the multicast server

• Question 592:

  Which statement is true about the RSVP protocol?

  A. It is reserved bi-directionally by each originating node.
  B. It is only for avoiding packet drop on collision-prone media (such as Ethernet).
  C. It is initiated uni-directionally along the data path downstream from each requesting node.
  D. It is only shared by pairs of peers participating in delay-sensitive, real-time applications like VoIP.
  C. It is initiated uni-directionally along the data path downstream from each requesting node.

• Question 593:

  Which statement correctly describes how MTU mismatches are addressed in the IS-IS neighbor-formation process?

  A. IS-IS checks the locally configured MTU against the MTU advertised in neighbor hello packets.
  B. IS-IS checks the locally configured MTU against the MTU advertised in neighbor LSPs.
  C. IS-IS does not check for MTU mismatches when forming a neighbor relationship.
  D. IS-IS pads hellos, so neighbor relationships will not be formed on links with mismatched MTUs.
  D. IS-IS pads hellos, so neighbor relationships will not be formed on links with mismatched MTUs.

• Question 594:

  An ISP provides VoIP and internet services to its customers. For security reasons, these services must be transported in different MPLS Layer 3 VPNs over the ISP core network. The customer CEs do not have the ability to segment the services using different VLANs and have only one uplink interface that does not support VLAN tagging. How should you design the network to ensure that VoIP traffic that is received from the CE goes in the VoIP VPN, and that Internet traffic goes into the Internet VPN on the ISP PE devices?

  A. Use a secondary interface IP address to differentiate between VoIP and Internet traffic
  B. Extend the Layer 3 VPN toward the CE
  C. Enable NBAR on the PE to direct the traffic into the correct VRF
  D. Use a subinterface on the PE for each service, VoIP and Internet, with different subnets
  E. Use policy-based routing to direct traffic into the correct VRF
  E. Use policy-based routing to direct traffic into the correct VRF

• Question 595:

  Which IEEE standard is commonly used at the data link layer for an access network, in an IoT environment?

  A. Wireless Regional Area Network
  B. Low-Rate Wireless Network
  C. Wireless Local Area Network
  D. Broadband wireless metropolitan Network
  B. Low-Rate Wireless Network

• Question 596:

  What are two base components of both a source-based remotely triggered black hole and a destination-based remotely triggered black hole filtering solution? (Choose two.)

  A. NetFlow
  B. static route withthe next hop pointing to the Null0 interface
  C. infrastructure access list
  D. triggered IBGP update setting next hop to a predetermined, unused IP address
  E. uRPF
  B. static route withthe next hop pointing to the Null0 interface
  D. triggered IBGP update setting next hop to a predetermined, unused IP address

• Question 597:

  You are designing a network solution to connect a primary data center to a disaster recovery site. The applications hosted on the site will be mainly web and email servers that are provided through a virtualized environment. A third data center facility may also be added in the next sixth months. for this Which connectivity type is appropriate design?

  A. point-to-point GRE tunnels
  B. L2TPv3
  C. VPWS
  D. VPLS
  A. point-to-point GRE tunnels

• Question 598:

  Refer to the exhibit.



  In this network, all routers are configured to run EIGRP on all interfaces. All interface bandwidths are set to 1000, and the delays are configured as shown. In the topology table at Router C, you see only one path towards 10.1.1.0/24. What is the reason that Router C only has one path in its topology table?

  A. Router D is not advertising 10.1.1.0/24 to Router C because Router C is its feasible successor.
  B. Router B is not advertising 10.1.1.0/24 to Router C because Router C is its feasible successor.
  C. Router D is not advertising 10.1.1.0/24 to Router C due to split horizon.
  D. Router B is not advertising 10.1.1.0/24 to Router C due to split horizon.
  C. Router D is not advertising 10.1.1.0/24 to Router C due to split horizon.

• Question 599:



  Refer to the exhibit. Company A migrated from Frame Relay WAN to Metro-Ethernet E-LAN service. Router B and C have only eBGP neighbor adjacency with router A using their Metro-Ethernet IP addresses. What happens when host E sends a packet to host F?

  A. Packet goes from router B to A and C.
  B. Packet is dropped by router B.
  C. Packet goes from router B to C.
  D. Packet goes from router B to Aand is dropped by router A due to the split-horizon rule.
  A. Packet goes from router B to A and C.

• Question 600:

  When designing IP addressing for route summarization, which consideration is true?

  A. Summarization can be applied regardless of the network topology if the IP addressing scheme is structured.
  B. IP address space assignments should be based on the divisions of the company.
  C. Suboptimal routing is commonly caused by the information that is hidden in the summary route.
  D. Summary metrics are constant, regardless of the instabilities of the summary components.
  C. Suboptimal routing is commonly caused by the information that is hidden in the summary route.
