Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 361:

  Cisco UCS Manager provides the ability to manage power utilization to the blades. Which two statements about UCS Manager power policies are true? (Choose two.)

  A. Power capping helps mainly in reducing data center footprint.
  B. Power capping helps reduce data center cooling.
  C. A single power cap group policy allows you to set power limits across multiple UCS domains.
  D. You can have multiple power cap groups per UCS domain.
  E. Each blade within a UCS 5108 chassis can belong to a separate power cap group.
  B. Power capping helps reduce data center cooling.
  D. You can have multiple power cap groups per UCS domain.

• Question 362:

  Given an E3 WAN link, which mode of compression would be the most appropriate choice?

  A. Mode high
  B. Mode medium
  C. Mode low
  D. Mode 1
  E. Mode 2
  D. Mode 1

• Question 363:

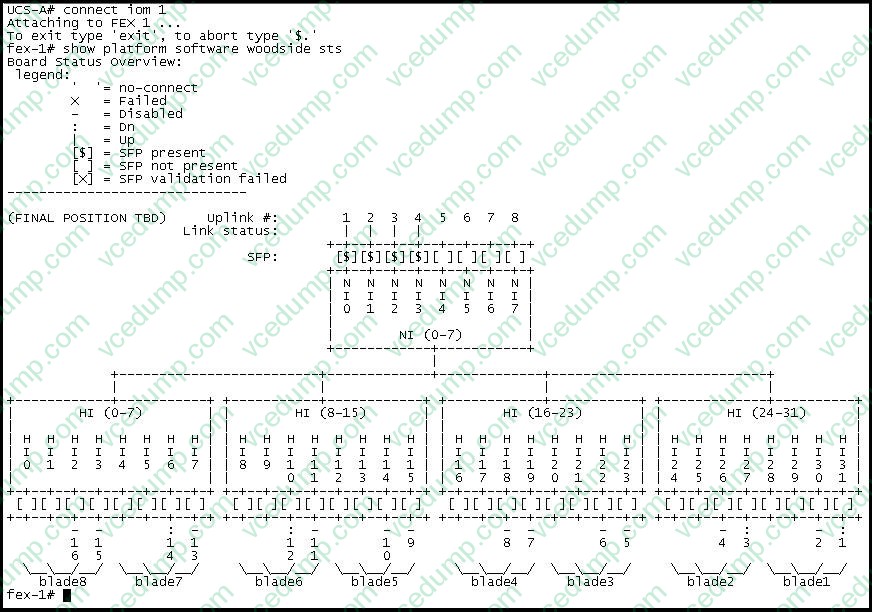

  Refer to the exhibit.



  Assuming that all blades are equipped with Cisco UCS VIC 1280 adapters, which two statements can be confirmed from the output? (Choose two.)

  A. The Cisco IOM model is a 2104XP.
  B. The Cisco IOM model is a 2204XP.
  C. The Cisco IOM model is a 2208XP.
  D. Blades 3, 4, 5, and 8 are missing.
  E. Blades 3, 4, 5, and 8 are not associated with a service profile.
  F. Link Group Preference is set to Port Channel.
  B. The Cisco IOM model is a 2204XP.
  D. Blades 3, 4, 5, and 8 are missing.

• Question 364:

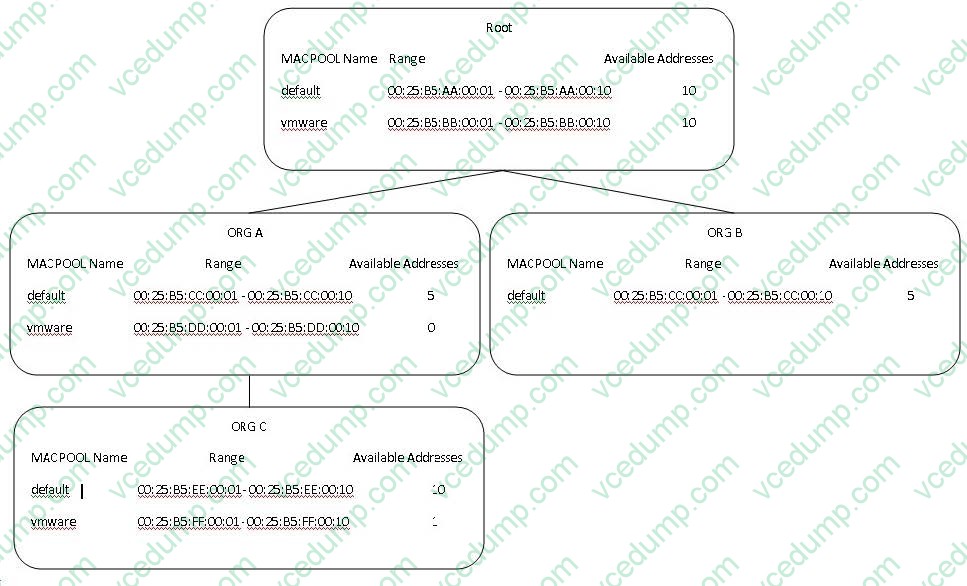

  Refer to the exhibit.



  You create a service profile within ORG C with two vNICs. Each vNIC is assigned to the MAC pool named "vmware". Which two possible MAC addresses could be assigned to the vNICs? (Choose two.)

  A. 00:25:B5:FF:00:01
  B. 00:25:B5:EE:00:01
  C. 00:25:B5:DD:00:01
  D. 00:25:B5:BB:00:01
  E. 00:25:B5:AA:00:01
  A. 00:25:B5:FF:00:01
  D. 00:25:B5:BB:00:01

• Question 365:

  The Cisco Nexus 1000V Series implementation has two main components. Which two components together make up the Cisco Nexus 1000V Series Switch? (Choose two.)

  A. virtual supervisor module
  B. virtual Ethernet module
  C. virtual machine NICs
  D. virtual machine kernel NICs
  A. virtual supervisor module
  B. virtual Ethernet module

• Question 366:

  ON NO:70

  Which option lists the main components of the Cisco Nexus 1000V Series Switch?

  A. the virtual supervisory module and virtual Ethernet module
  B. VMware virtual switch and virtual hosts
  C. the virtual chassis and the virtual line cards
  D. the Cisco Nexus ,1010 and 1,00 Series virtual appliances
  A. the virtual supervisory module and virtual Ethernet module

• Question 367:

  Given the following configuration, what command can be used to determine the physical path that traffic will be sent out upon? Port-profile type Ethernet name vm-data Switchport mode trunk Switchport trunk allowed vlan 200-210 Channel-group auto mode on mac-pinning State enabled Vmware port-group No shut

  Port-profile type vethernet name vlan-200 Switchport mode access Switchport vlan 200 State enabled Vmware port-group No shut

  A. module vem X execute vemcmd show trunk
  B. show module 3 internal pinning
  C. module vem X execute vemcmd show port
  D. show module vem mapping
  E. show interface vethX pinning
  C. module vem X execute vemcmd show port

• Question 368:

  Overlay Transport Virtualization (OTV) uses the Authoritative Edge Device (AED) to perform which tasks?

  A. The AED is responsible for sending all unicast traffic in a site, while either node in a site can transmit multicast and broadcast.
  B. The AED is responsible for load balancing all traffic for all VLANs across the transport network.
  C. The AED is responsible for handling all unicast, broadcast, and multicast traffic for a given VLAN within a site.
  D. The AED is responsible for MAC address dispute contention for a given VLAN.
  C. The AED is responsible for handling all unicast, broadcast, and multicast traffic for a given VLAN within a site.

• Question 369:

  What is the maximum combination of static vNICs and vHBAs for Cisco UCS Manager version 2.1 when using ESX 5.1?

  A. 18 eNICs and 8 fNICs
  B. 24 eNICs and 8 fNICs
  C. 12 eNICs and 8 fNICs
  D. 18 eNICs and 9 fNICs
  A. 18 eNICs and 8 fNICs

• Question 370:

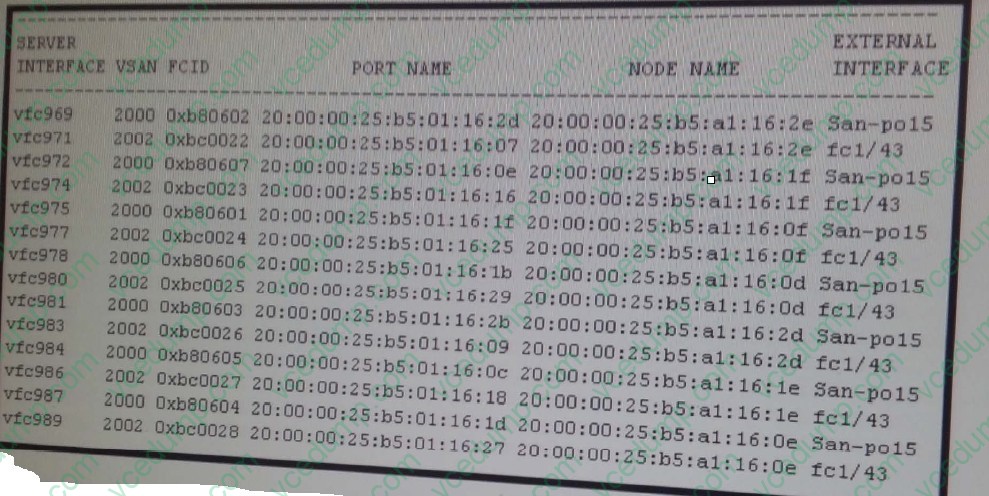

  Refer to the exhibit.



  Which three statements are true? (Choose three.)

  A. Zoning is configured on the upstream SAN switch
  B. Storage is attached directly to Cisco UCS.
  C. There are 14 blades active in the system.
  D. The Cisco UCS Manager is in switch mode.
  E. Two separate physical SAN switches are upstream of Cisco UCS.
  F. There are 7 blades active in the system.
  G. The Cisco UCS Manager is in end-host mode.
  H. Zoning is configured on Cisco UCS Manager.
  A. Zoning is configured on the upstream SAN switch
  F. There are 7 blades active in the system.
  G. The Cisco UCS Manager is in end-host mode.
