Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 1:

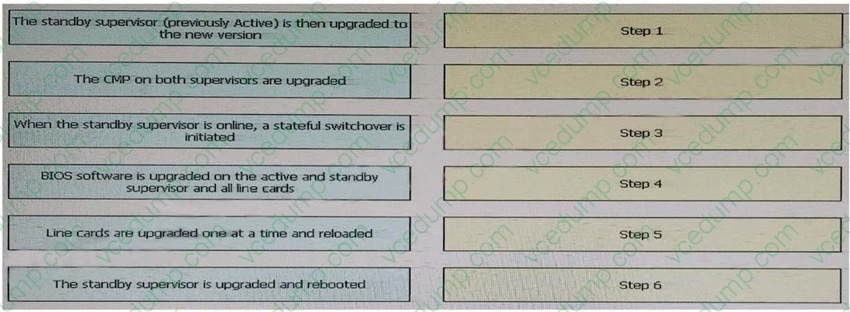

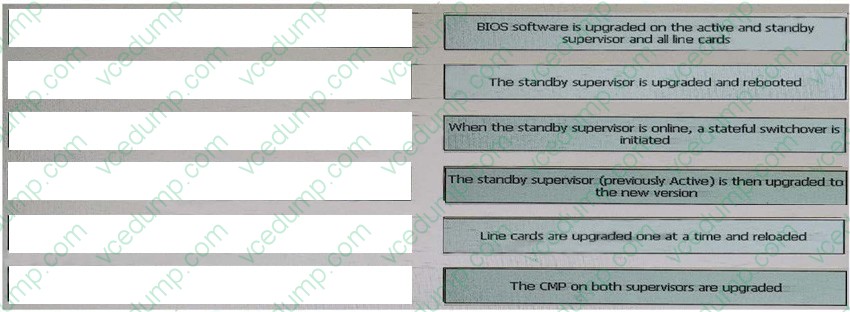

  Drag and drop the sequence of the steps on left for ISSU software upgrade of dual supervisor switches to achieve a nondisruptive upgrade on the right.

  Select and Place:





• Question 2:

  Which two Cisco devices form the virtual access layer in the Cisco Data Center Architecture? (Choose two.)

  A. Cisco Nexus 7000
  B. Cisco Nexus 5000
  C. Cisco Nexus 1010
  D. Cisco Nexus 2000
  E. Cisco Nexus 1000V
  C. Cisco Nexus 1010
  E. Cisco Nexus 1000V

• Question 3:

  What are the two parallel SCSI specifications? (Choose two.)

  A. Up to 25 m bus length
  B. Only one device per SCSI bus
  C. Up to 16 devices per SCSI bus
  D. Half-duplex operation
  E. Full-duplex operation
  A. Up to 25 m bus length
  C. Up to 16 devices per SCSI bus

• Question 4:

  Refer to the exhibit.



  When the engineer tried to check CoPP on the switch, the engineer observed the error that is shown in the exhibit. Which option describes the reason for the displayed output?

  A. The Cisco NX-OS version that is running does not support CoPP.
  B. The CoPP feature is not enabled on this switch.
  C. The CoPP CLI is available from the default VDC.
  D. CoPP is enabled by default but not configured.
  C. The CoPP CLI is available from the default VDC.

• Question 5:

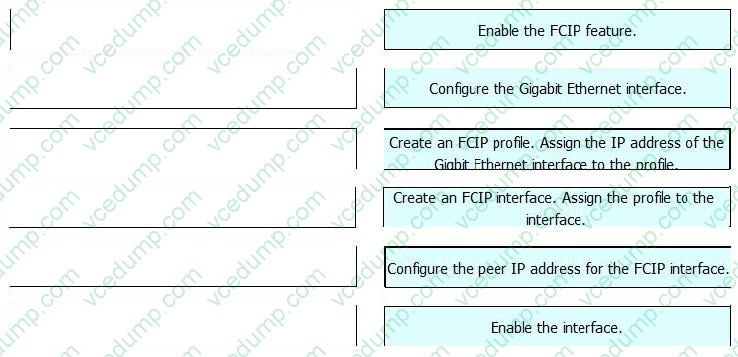

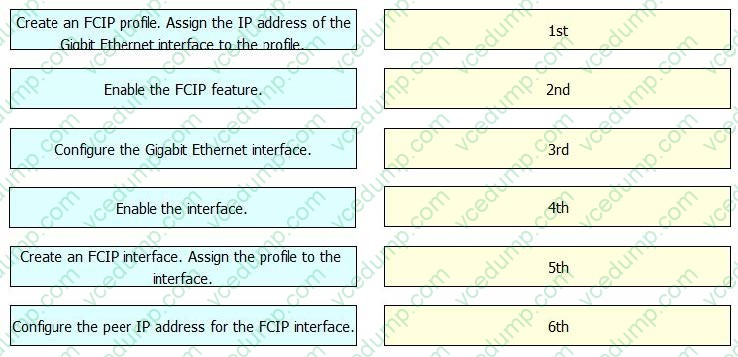

  Drag and drop the actions on the left to the correct order for a step-by-step FCIP link configuration on the right.

  Select and Place:





• Question 6:

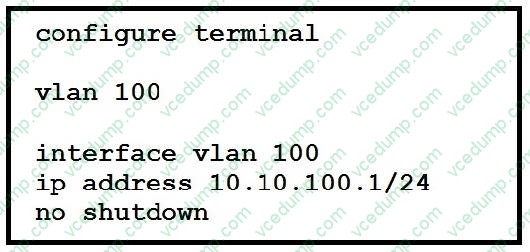

  Refer to exhibit.



  The interface remains in a down state. What is the cause of the problem?

  A. The Feature interface-vlan command must be configured.
  B. The command copy run start was not entered.
  C. There are IP address conflicts.
  D. The VDC is type "OTV".
  E. The VDC contains only F1 interfaces.
  E. The VDC contains only F1 interfaces.

• Question 7:

  Which three configurations for ACL capture are valid? (Choose three.)

  A. on a VLAN interface
  B. in the ingress direction on all interfaces
  C. in the ingress direction only on the M2 module
  D. in the egress direction on all interfaces
  E. in the egress direction on all Layer 3 interfaces
  F. in the ingress direction only on M1 module
  A. on a VLAN interface
  B. in the ingress direction on all interfaces
  E. in the egress direction on all Layer 3 interfaces

• Question 8:

  Which PIM mode is supported in Cisco NX-OS?

  A. sparse mode
  B. dense mode
  C. sparse-dense mode
  D. dense-sparse mode
  A. sparse mode

• Question 9:

  Which statement about soft pinning is incorrect?

  A. It is the default behaviour in Cisco UCS manager.
  B. When the VLAN validation fails, a VLAN mismatch fault with a severity of warning appears.
  C. Cisco UCS manager pins the vNIC to an uplink Ethernet port or port channel accordning to VLANmembership criteria.
  D. If no uplink Ethernet port or ether channel is configured with all VLANS on the vNIC, Cisco UCS managerdrops the traffic for all of the VLANS on the vNIC.
  B. When the VLAN validation fails, a VLAN mismatch fault with a severity of warning appears.

• Question 10:

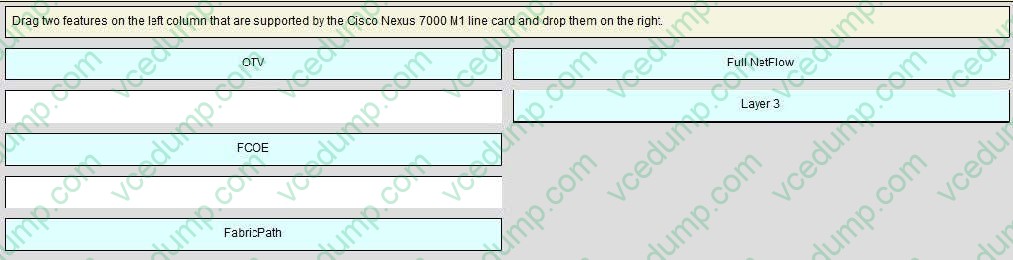

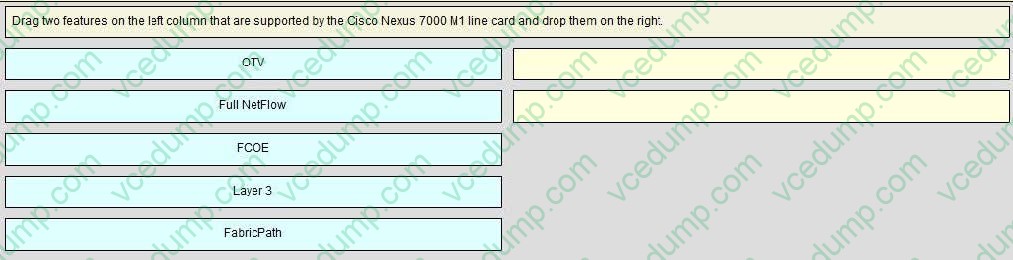

  Drag Drop

  Select and Place:
