Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 351:

  Which three statements best describe multicast operation on Cisco Nexus switches in a data center? (Choose three.)

  A. Cisco NX-OS Software does not support PIM dense mode.
  B. The command ip multicast-routing must be enabled in Cisco NX-OS Software before any multicast configuration is possible on the switch.
  C. PIM CLI configuration and verification commands are not available until you enable the PIM feature with the feature pim command.
  D. Cisco NX-OS Software supports multicast routing per Layer 3 VRF instance.
  E. The default PIM operational mode on the Cisco Nexus 7000 switch is SSM.
  A. Cisco NX-OS Software does not support PIM dense mode.
  C. PIM CLI configuration and verification commands are not available until you enable the PIM feature with the feature pim command.
  D. Cisco NX-OS Software supports multicast routing per Layer 3 VRF instance.

• Question 352:

  On a Cisco UCS B250 server, how many physical DIMM slots make up one logical DIMM?

  A. 2
  B. 3
  C. 4
  D. 6
  E. 12
  A. 2

• Question 353:

  Which two options are health probes used in Cisco ACE? (Choose two.)

  A. RADIUS
  B. Layer 3 ping
  C. Round robin
  D. Cookie insert
  E. IP hash
  A. RADIUS
  B. Layer 3 ping

• Question 354:

  The vPC peer-gateway capability allows a vPC switch to act as the active gateway for packets that are addressed to the router MAC address of the vPC peer. This feature enables local forwarding of such packets without the need to cross the vPC peer link.

  Which statements are true about the vPC peer-gateway? (Choose two.)

  A. The vPC peer-gateway feature is enabled by default.
  B. The vPC peer-gateway feature can be configured globally under the vPC domain submode.
  C. Enabling the peer-gateway feature automatically disables IP redirects on all interface VLANs mapped over a vPC VLAN to avoid generation of IP redirect messages for packets switched through the peer gateway router.
  D. The vPC peer-gateway feature only works with HSRP protocol.
  B. The vPC peer-gateway feature can be configured globally under the vPC domain submode.
  C. Enabling the peer-gateway feature automatically disables IP redirects on all interface VLANs mapped over a vPC VLAN to avoid generation of IP redirect messages for packets switched through the peer gateway router.

• Question 355:

  What is the benefit of using Anycast RP via RFC 4610 for IP multicast RP redundancy?

  A. Improves convergence of the multicast network due to enhanced RPF checks
  B. Simplifies the number of control plane protocols over other RP redundancy methods
  C. Eliminates the use of Protocol Independent Multicast (PIM) in the topology
  D. Increases the administrative distances in Multicast Source Discovery Protocol (MSDP) configuration
  B. Simplifies the number of control plane protocols over other RP redundancy methods

• Question 356:

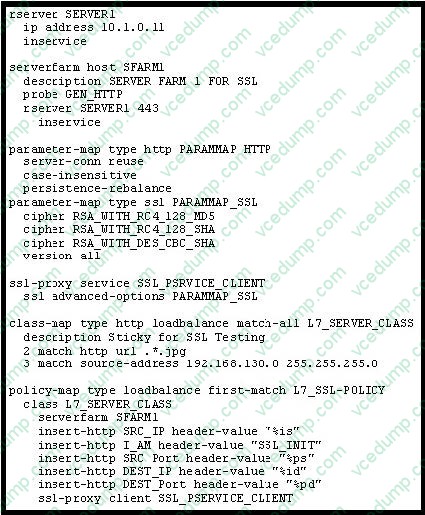

  Refer to the exhibit.



  Which type of SSL offload configuration is shown in the output?

  A. SSL termination
  B. SSL initiation
  C. end-to-end SSL
  D. SSL testing
  B. SSL initiation

• Question 357:

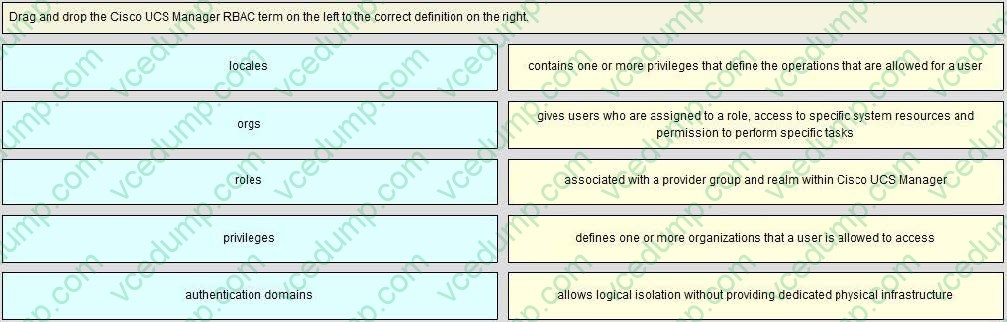

  Drag Drop

  Select and Place:





• Question 358:

  Which two actions are necessary to configure FCoE on the Cisco Nexus 7000 switches? (Choose two.)

  A. The Cisco Nexus 7000 has the FCoE feature enabled.
  B. The system quality of service is disabled.
  C. The dedicated and shared interfaces are configured.
  D. The two required storage virtual device contexts are created.
  E. The module is licensed for Layer 2 and Layer 3.
  A. The Cisco Nexus 7000 has the FCoE feature enabled.
  C. The dedicated and shared interfaces are configured.

• Question 359:

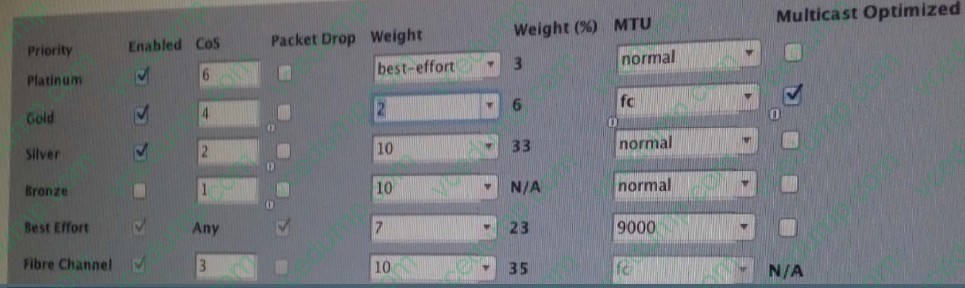

  Refer to the Exhibit.



  Which two statements are true? (Choose two.)

  A. You can enable Multicast Optimized to as many classes as you want as long as enough unutilized multicast queues are available.
  B. Four different MTUs are allowed: 1500.2158, 2240, and 9000.
  C. If you save the policy, it gives you an error because you can have the Fibre Channel class and one more as no drop policy. To fix it, check all the check boxes under packet Drop except one.
  D. Three different MTUs are 1500, 2158, and 9000
  E. If you save the policy, it gives you an error because you can have only one class with the no drop policy. To fix it, check all the check boxes under Packet Drop because the class Fibre Channel is already a no-drop class
  D. Three different MTUs are 1500, 2158, and 9000
  E. If you save the policy, it gives you an error because you can have only one class with the no drop policy. To fix it, check all the check boxes under Packet Drop because the class Fibre Channel is already a no-drop class

• Question 360:

  Which two statements about the FCIP Write Acceleration feature are true? (Choose two.)

  A. WAN throughput is maximized by minimizing the impact of WAN latency for write operations.
  B. The Write Acceleration feature does not have to be enabled on both sides of the FCIP link.
  C. The FCIP Write Acceleration feature can only be used with multilink port channels if they are constructed with port channel protocol.
  D. The Write Acceleration feature cannot be used across FSPF equal cost paths in FCIP deployments.
  E. The Write Acceleration feature works by immediately returning the SCSI status on the initiator side of the FCIP link.
  A. WAN throughput is maximized by minimizing the impact of WAN latency for write operations.
  D. The Write Acceleration feature cannot be used across FSPF equal cost paths in FCIP deployments.
