Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 271:

  The Cisco nexus 1000V Switch uses a multihypervisor licensing approach. Which three statements are true? (Choose three.)

  A. The Essentials edition comes with a 180-day trial for the Advanced edition.
  B. An advanced edition license is required for each CPU socket on each VEM.
  C. The VXLAN gateway is included in the Essential edition license.
  D. The Cisco Nexus 1000 v switch supports Essential and Advanced license editions.
  E. Only the Advance edition license is supported with multihypervisor.
  F. You can migrate the license from a Cisco Nexus 1000V Switch for KVM to a Cisco Nexus 1000V Switch for VMware.
  B. An advanced edition license is required for each CPU socket on each VEM.
  D. The Cisco Nexus 1000 v switch supports Essential and Advanced license editions.
  F. You can migrate the license from a Cisco Nexus 1000V Switch for KVM to a Cisco Nexus 1000V Switch for VMware.

• Question 272:

  In the event of a catastrophic disaster, after which you need to replace the entire UCS blade system (that is, new fabric interconnects, new IOMs, new chassis, and new blades), what type of backup would provide the most complete set of information?

  A. logical configuration
  B. all configuration
  C. full state
  D. system configuration
  C. full state

• Question 273:

  Which two statements about end-host mode in SAN connectivity in a Cisco UCS environment are true? (Choose two.)

  A. End-host mode is synonymous with NPV mode.
  B. In end-host mode, only hard pinning of vHBAs to Fibre Channel uplink ports is allowed.
  C. Making configuration changes between Fibre Channel switching mode and end-host mode is nondisruptive.
  D. End-host mode is the default Fibre Channel switching mode.
  A. End-host mode is synonymous with NPV mode.
  D. End-host mode is the default Fibre Channel switching mode.

• Question 274:

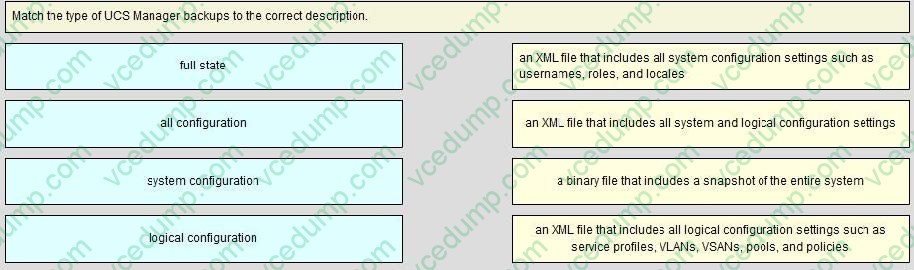

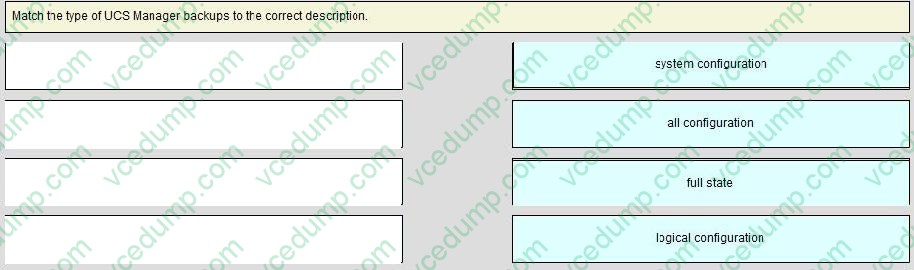

  Drag Drop

  Select and Place:





• Question 275:

  When an NP port becomes operational, the NP switch first logs itself into the core switch by sending a FLOGI request (using the port WWN of the NP port). What will occur next?

  A. The switch registers with the fabric name server.
  B. The switch will perform a PLOGI to the port login server.
  C. The switch will register parameters using FDISC.
  D. The NPV switch will perform a PLOGI using FDISC to register with the fabric name server.
  A. The switch registers with the fabric name server.

• Question 276:

  Overlay Transport Virtualization (OTV) join interface is used to source the OTV encapsulated traffic and send it to the Layer 3 domain of the data center network. Which statements are true about OTV join interface? (Choose three.)

  A. Join interface is a Layer 3 entity, and with the Cisco NX-OS release 6.0, it can only be defined as a physical interface, physical subinterface, Layer 3 port channel, or Layer 3 port channel subinterface.
  B. A single join interface can be defined and associated with a given OTV overlay.
  C. Multiple overlays can also share the same join interface.
  D. Join interface can be a loopback interface.
  E. The join interface is a Layer 3 entity that can be defined as a physical interface but not as a logical one.
  A. Join interface is a Layer 3 entity, and with the Cisco NX-OS release 6.0, it can only be defined as a physical interface, physical subinterface, Layer 3 port channel, or Layer 3 port channel subinterface.
  B. A single join interface can be defined and associated with a given OTV overlay.
  C. Multiple overlays can also share the same join interface.

• Question 277:

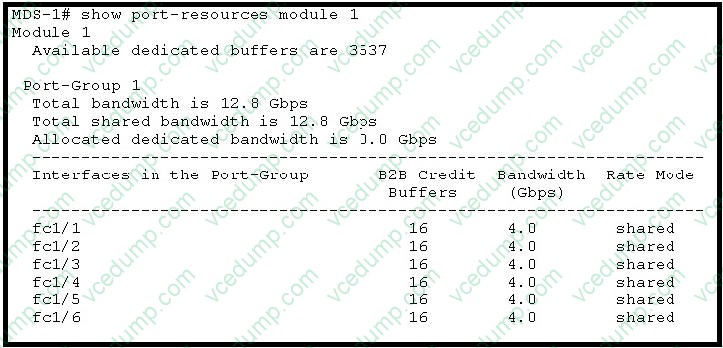

  Refer to the exhibit.



  What action must be taken to make fc1/1 capable of being an ISL port channel member operating at 4 GB?

  A. One of the interfaces between fc1/2 and fc1/6 must be placed in out-of-service mode to free up bandwidth in the port group so that fc1/1 can use that bandwidth.
  B. Interface fc1/1 must be placed into dedicated rate mode.
  C. The B2B credit value of interface fc1/1 must be raised to a minimum of 100.
  D. No action is necessary because shared rate mode ports are fine for ISLs.
  E. No action is possible because module 1 is oversubscribed and will only support ISLs if the ports operate at 2GBs.
  B. Interface fc1/1 must be placed into dedicated rate mode.

• Question 278:

  Which three statements about IPv4 ACLs and the IPsec feature are true? (Choose three.)

  A. Cisco SAN-OS software allows only name-based IPv4 ACLs.
  B. The IPsec feature considers source and destination IPv4 and IPv6 addresses.
  C. IKE traffic (UDP port 500) is encrypted.
  D. The IPsec feature does not support port number ranges.
  E. Inbound and outbound traffic is evaluated against the same outbound IPv4 ACL.
  A. Cisco SAN-OS software allows only name-based IPv4 ACLs.
  D. The IPsec feature does not support port number ranges.
  E. Inbound and outbound traffic is evaluated against the same outbound IPv4 ACL.

• Question 279:

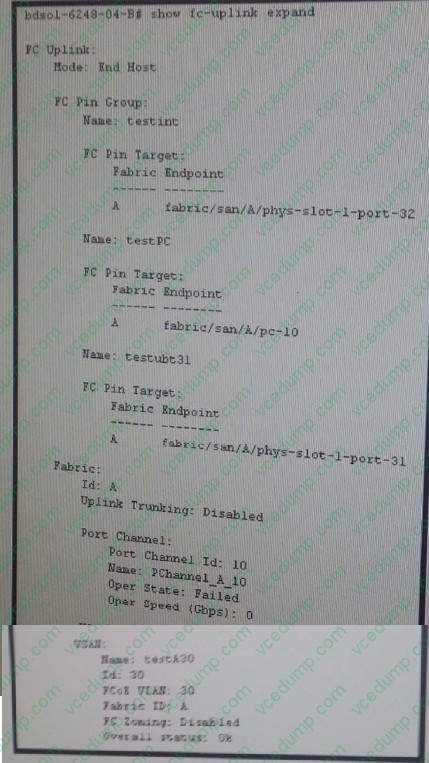

  Refer to the exhibit.



  Which statement is true?

  A. All the Fibre channel ports come up as TNP by default.
  B. All the Fibre channel ports come up in TE mode by default.
  C. All named VSANs in a cisco USC domain are allowed on all Fibre Channel uplink ports on that fabric interconnect.
  D. To enable Fibre Channel switching mode, the fabric interconnect must be reloaded.
  D. To enable Fibre Channel switching mode, the fabric interconnect must be reloaded.

• Question 280:

  Which statement about basic Zoning are true? Choose two)

  A. Administrator can make simultaneous configuration changes upon activation, one administrator canoverwrite other admin changes.
  B. If a zone is part of multiple zone sets, you create one instance of this zone for both zone sets.
  C. To distribute the zoning database to must reactivate the same zone set. The reactivation may affecthardware chances for hard zoning only on the local switch , remote switches are not affected.
  D. To retrieve the results of the activation on a per switch basis, the managing switch provides combinedstatus about the activation and identifies the failure switch.
  E. The default zone policy is defined per switch, To ensure smooth fabric operation all switches in the fabricmust have the same default zone settings.
  D. To retrieve the results of the activation on a per switch basis, the managing switch provides combinedstatus about the activation and identifies the failure switch.
