Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 131:

  Nexus# 57ther igmp snooping vlan 120 IGMP Snooping information for vlan 120 IGMP snooping disabled Optimised Multicast Flood (OMF) disabled IGMP querier none Switch-querier enabled, address 1.1.1.1, currently not running IGMPv3 Explicit tracking enabled IGMPv2 Fast leave disabled IGMPv1/v2 Report suppression enabled IGMPv3 Report suppression disabled Link Local Groups suppression enabled Router port detection using PIM Hellos, IGMP Queries Number of router-ports: 0 Number of groups: 0 Active ports: Po100 Po111 Which statement best describes what is depicted in the show command output?

  A. IGMP snooping is not active for VLAN 120 because the IGMP feature has not been enabled on the switch with the feature igmp command.
  B. The IGMP snooping querier for VLAN 120 is not in a running state because the Loopback interface configured with 1.1.1.1/32 is currently in a down state.
  C. IGMP snooping has been disabled on the VLAN 120 SVI.
  D. IGMP snooping has been disabled for VLAN 120 in VLAN configuration mode.
  E. IGMP snooping is not active for VLAN 120 because VLAN 120 does not exist in the VLAN database.
  D. IGMP snooping has been disabled for VLAN 120 in VLAN configuration mode.

• Question 132:

  In the event of a GSS failure in a GSS cluster, which is true?

  A. The current connections are rerouted via the backup GSS
  B. Secondary GSS cannot be used to configure the GSS cluster
  C. All remaining GSSs in the cluster continue responding to any new queries
  D. All records in the GSS database are flushed and reconstructed again using a new master GSS
  C. All remaining GSSs in the cluster continue responding to any new queries

• Question 133:

  Cisco FabricPath switches support ECMP forwarding for known unicast frames. If the destination switch ID can be reached through more than one output interface with equal cost, the forwarding engine uses a hash function to pick one of the interfaces. Which three options are valid for hash input for unicast frames? (Choose three.)

  A. Use only the source parameters (layer-3, layer-4, or mixed).
  B. Use the FabricPath switch ID in the FabricPath header.
  C. Use only the destination parameters (layer-3, layer-4, or mixed).
  D. Use both the source and the destination parameters (layer-3, layer-4, or mixed).
  E. Include only Layer 2 input (source or destination MAC address).
  A. Use only the source parameters (layer-3, layer-4, or mixed).
  C. Use only the destination parameters (layer-3, layer-4, or mixed).
  D. Use both the source and the destination parameters (layer-3, layer-4, or mixed).

• Question 134:

  In a Cisco Unified Computing System, What is the "designated receiver" port in end-host mode used for?

  A. Sending all broadcasts
  B. Receiving all traffic from upstream switches
  C. Receiving broadcast traffic
  D. Negotiating spanning tree with upstream switches
  E. Learning MAC addres?ses from upstream switch?es
  C. Receiving broadcast traffic

• Question 135:

  Which is true when describing a connection replication in Cisco ACE?

  A. It is not supported for SSL connections.
  B. It is not supported for non-SSL connections.
  C. It can only be configured manually.
  D. It has a maximum limit of 50,000 replicated connections.
  A. It is not supported for SSL connections.

• Question 136:

  An administrator creates a vNIC and assigns it to Fabric A with the fabric failover feature enabled. Which statement is true?

  A. A unique vEthernet interface will be created on Fabric A and Fabric B
  B. A vEthernet interface will be created only on Fabric A
  C. A vEthernet interface will be created on Fabric A, and move across to Fabric B in the event of failure
  D. Fabric B will learn the vEthernet interface from Fabric A through a GARP
  E. The same vEthernet interface will be created on Fabric A and Fabric B
  A. A unique vEthernet interface will be created on Fabric A and Fabric B

• Question 137:

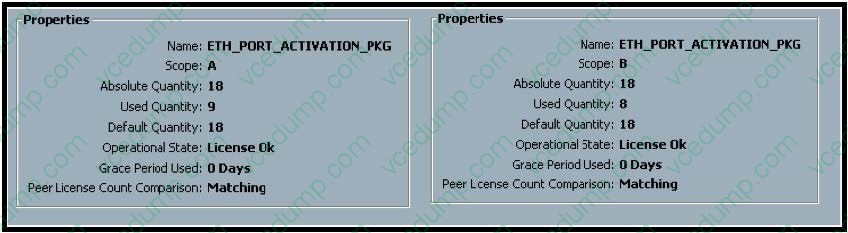

  Refer to the exhibit.



  How many additional chassis equipped with Cisco UCS 2204XP I/O Modules could be connected at maximum bandwidth without exceeding the existing port licenses?

  A. 1
  B. 2
  C. 3
  D. 4
  E. 5
  B. 2

• Question 138:

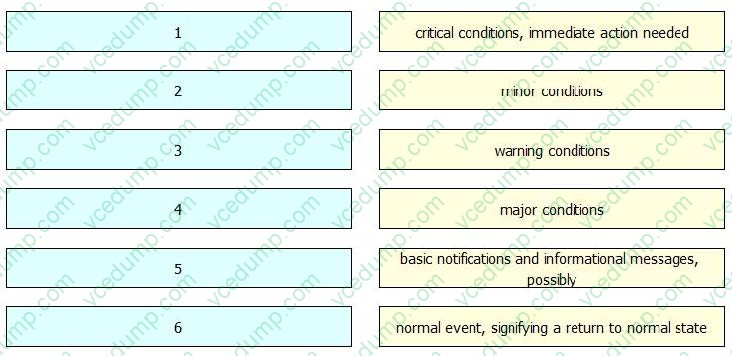

  Drag and drop the call home severity on the left to the correct description on the right.

  Select and Place:





• Question 139:

  From the Cisco UCS CLI, how do you verify which uplink ports a blade server is using for its network connectivity?

  A. UCS-A# show pinning border-interfaces
  B. UCS-B# show service-profile circuit
  C. UCS-B(nxos)# show pinning server-interfaces
  D. You must statically configure which uplink the blades should use, or you will not have connectivity.
  C. UCS-B(nxos)# show pinning server-interfaces

• Question 140:

  What are the two FEX connection modes? (Choose two.)

  A. hard-pinning mode
  B. soft-pinning mode
  C. port channel mode
  D. physical-pinning mode
  E. vlan pinning mode
  A. hard-pinning mode
  C. port channel mode
