Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 101:

  SNMPv3 authorizes management operations only by configured users and encrypts SNMP messages. Which authentication protocols does Cisco NX-OS Software use for SNMPv3? (Choose two.)

  A. NMAC-SHA-96 authentication protocol
  B. HMAC-MD5-96 authentication protocol
  C. Community String Match protocol
  D. NMAC-MD5-96 authentication protocol
  E. HMAC-SHA-96 authentication protocol
  B. HMAC-MD5-96 authentication protocol
  E. HMAC-SHA-96 authentication protocol

• Question 102:

  Which two statements about disjoint Layer 2 networks are true? (Choose two.)

  A. Ethernet Switching mode must be end-host mode.
  B. Overlapping vlans are supported.
  C. Each vNIC can communicate with all the disjoint Layer 2 networks.
  D. Symmetrical configuration is recommended for high availability.
  E. Default VLAN 1 can be configured explicitly on an Uplink Ethernet Port or Port Channel
  F. Appliance port cannot be configured with the same VLAN as Uplink Ethernet Port or Port Channel.
  A. Ethernet Switching mode must be end-host mode.
  D. Symmetrical configuration is recommended for high availability.

• Question 103:

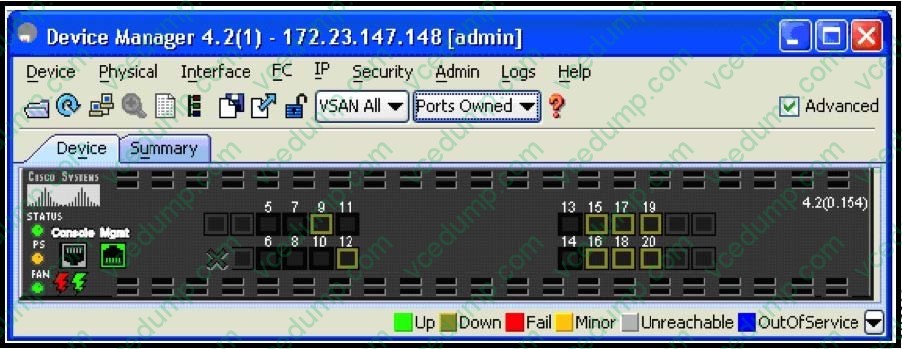

  Refer to the exhibit.



  How is the VLAN configuration accomplished in the Device Manager?

  A. This configuration is done under the IP selection.
  B. This configuration is done under Interface selection.
  C. This configuration cannot be done in Device Manager.
  D. This configuration is done by clicking the VSAN drop-down list and choosing VLAN All.
  C. This configuration cannot be done in Device Manager.

• Question 104:

  In a configuration with redundant supervisors, how many IP addresses are required to configure full remote access via management 0?

  A. Two IP addresses, one for each supervisor
  B. Three IP addresses, one virtual IP and one physical IP for each supervisor
  C. One IP address that is shared among supervisors
  D. None--management 0 will use the IP address from the first SVI that is created
  C. One IP address that is shared among supervisors

• Question 105:

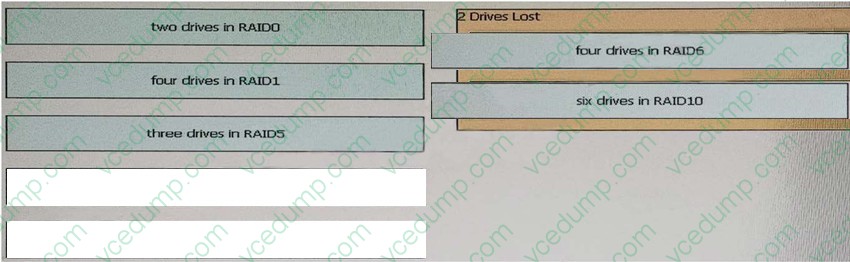

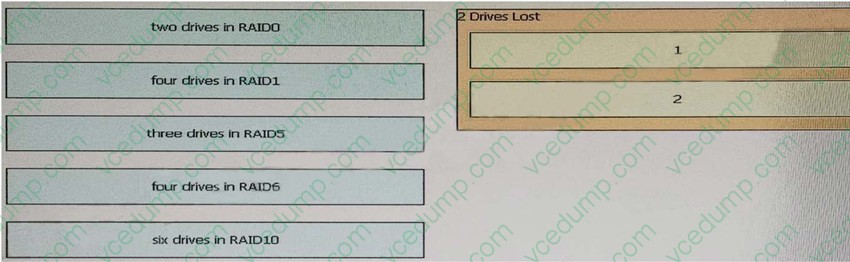

  Drag and drop two configurations that could fail without data loss from the left column into the 2 Drives Lost column on the right.

  Select and Place:





• Question 106:

  What is the purpose of this command in a Cisco Application Control Engine? switch/Admin# show np 1 me-stats "-F0 v"

  A. It displays the status of the internal SSL proxy structure associated with a vserver.
  B. It displays the crypto-related statistics for a single NP.
  C. It is the same output of a "show stats crypto" client/server.
  D. It shows details on HTTP session entries.
  A. It displays the status of the internal SSL proxy structure associated with a vserver.

• Question 107:

  Consistency checks and compatibility checks are performed before a vPC is created. During a compatibility check, one vPC peer conveys configuration information to the other vPC peer to verify that vPC member ports can actually form a port channel. Which two statements about virtual port channel graceful consistency checks are true? (Choose two.)

  A. Graceful consistency check is enabled by default.
  B. When graceful consistency check is enabled, only the links on the secondary peer device are suspended.
  C. Graceful consistency check is disabled by default. To enable this feature, use the graceful consistency-check command under the vPC domain configuration mode.
  D. When graceful consistency check is enabled, only the inconsistent VLANs on the secondary peer device are suspended.
  E. Graceful consistency check is disabled by default.
  A. Graceful consistency check is enabled by default.
  B. When graceful consistency check is enabled, only the links on the secondary peer device are suspended.

• Question 108:

  Refer to the exhibit.



  When a CNA host connects to the virtual interface of the switch, what will happen?

  A. The switch will not initialize because it is in the wrong mode.
  B. The host will negotiate using DCBX and connect properly.
  C. The host will negotiate using DCBX and will change parameters as required, but a shut/no shut is needed on the interface.
  D. The host will not connect. The vFC port number does not match the Ethernet interface.
  A. The switch will not initialize because it is in the wrong mode.

• Question 109:

  How many ACL capture sessions can be configured on a Cisco Nexus 7000 switch?

  A. ACL capture is not supported on the Cisco Nexus 7000 switch.
  B. Only one ACL capture session can be active at any given time in the system across virtual device contexts.
  C. Only one ACL capture session can be active in each virtual device context.
  D. The number of ACL capture sessions depends on the space that is available within the ACL Ternary Content Addressable Memory.
  E. Only one ACL capture session is supported per VLAN.
  B. Only one ACL capture session can be active at any given time in the system across virtual device contexts.

• Question 110:

  Refer to the exhibit.



  Corporate ABC wants to implement control by allowing authorized virtual machine MAC addresses to send traffic to the Internet. The administrator wants to add this MAC ACL on Nexus7k-1 to achieve the task [Configuration Output] Nexus7k-1: mac access-list mac-acl permit 0050.561f.73d3 0000.00ff.ffff any ! interface e1/1 mac access-group mac-acl However, this action does not work. Which two statements describe the issue? (Choose two.)

  A. The MAC address and mask do not match.
  B. The MAC ACL cannot be applied to egress traffic.
  C. This command is wrong to apply this ACL under interface.
  D. The sequence number is missing from the ACL.
  E. The MAC ACL is not supported on Cisco nexus 7000 Series.
  B. The MAC ACL cannot be applied to egress traffic.
  C. This command is wrong to apply this ACL under interface.
