Cisco 350-401 Online Questions & Answers

• Question 231:

  DRAG DROP

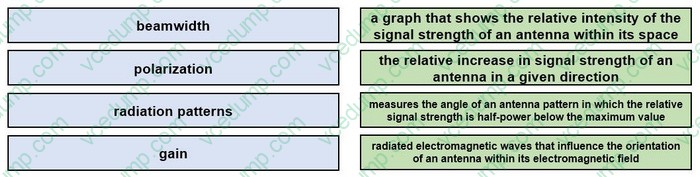

  Drag and drop the wireless elements on the left to their definitions on the right.

  Select and Place:





• Question 232:

  A company requires a wireless solution to support its mam office and multiple branch locations. All sites have local Internet connections and a link to the main office lor corporate connectivity. The branch offices are managed centrally.

  Which solution should the company choose?

  A. Cisco United Wireless Network
  B. Cisco DNA Spaces
  C. Cisco Catalyst switch with embedded controller
  D. Cisco Mobility Express
  A. Cisco United Wireless Network

  ---

  Explanation

  Spaces is for location services etc not a wireless solution.

  Centrally managed corp and branch offices gives you a clue

• Question 233:

  What is the function of a LISP PITR?

  A. It encapsulates IP packets from non-LISP sites with a LISP header.
  B. It accepts registration requests and aggregates successfully registered EID prefixes to client ITRs.
  C. It is responsible for publishing the site EID-to-RLOC mappings.
  D. It forwards encapsulated Map-Request messages to the Map Server or authoritative ETR for the EID.
  A. It encapsulates IP packets from non-LISP sites with a LISP header.

  ---

  Explanation

  The correct answer is Option A. It encapsulates IP packets from non-LISP sites with a LISP header.

  In LISP, a PITR, or Proxy Ingress Tunnel Router, provides connectivity from non-LISP sites to LISP sites.

  A PITR performs the ingress tunnel router function on behalf of non-LISP sources. When traffic comes from a non-LISP site and is destined for a LISP EID, the PITR:

  1. Receives the packet from the non-LISP site.

  2. Looks up the EID-to-RLOC mapping.

  3. Encapsulates the packet with a LISP header.

  4. Forwards the encapsulated packet toward the appropriate LISP site.

  Option B is incorrect because accepting EID prefix registrations is a Map Server function.

  Option C is incorrect because publishing EID-to-RLOC mappings is related to the LISP mapping system, not the PITR function.

  Option D is incorrect because forwarding encapsulated Map-Request messages is associated with the Map Resolver role, not the PITR.

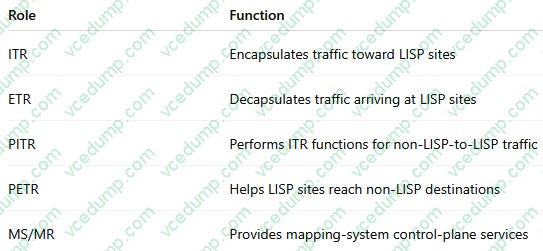

  Key LISP roles:



• Question 234:

  What is a characteristics of a vSwitch?

  A. supports advanced Layer 3 routing protocols that are not offered by a hardware switch
  B. enables VMs to communicate with each other within a virtualized server
  C. has higher performance than a hardware switch
  D. operates as a hub and broadcasts the traffic toward all the vPorts
  B. enables VMs to communicate with each other within a virtualized server

• Question 235:

  A network engineer wants to configure console access to a router without using AAA so that the privileged exec mode is entered directly after a user provides the correct login credentials.

  Which action achieves this goal?

  A. Configure login authentication privileged on line con 0.
  B. Configure a local username with privilege level 15.
  C. Configure privilege level 15 on line con 0.
  D. Configure a RADIUS or TACACS+ server and use it to send the privilege level.
  C. Configure privilege level 15 on line con 0.

• Question 236:

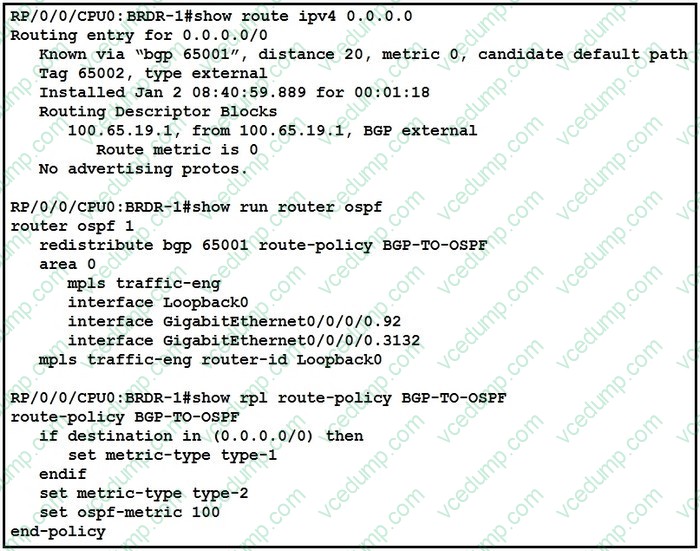

  Refer to the exhibit.



  Router BRDR-1 is configured to receive the 0.0.0.0/0 and 172.17.1.0/24 network via BGP and advertise them into OSPF area 0.

  An engineer has noticed that the OSPF domain is receiving only the 172.17.1.0/24 route and default route 0.0.0.0/0 is still missing.

  Which configurating must engineer apply to resolve the problem?

  A. router ospf 1 redistribute bgp 65001 metric 100 route-policy BGP-TO-OSPF end
  B. router ospf 1 default-information originate end
  C. router ospf 1 default-metric 100 end
  D. router ospf 1 default-information originate always end
  B. router ospf 1 default-information originate end

• Question 237:

  A client device fails to see the enterprise SSID, but other devices are connected to it.

  What is the cause of this issue?

  A. The hidden SSID was not manually configured on the client.
  B. The broadcast SSID was not manually configured on the client.
  C. The client has incorrect credentials stored for the configured hidden SSID.
  D. The client has incorrect credentials stored for the configured broadcast SSID.
  A. The hidden SSID was not manually configured on the client.

• Question 238:

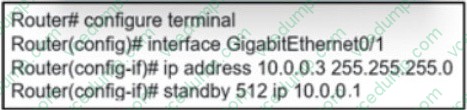

  Refer to the exhibit.



  An engineer attempts to configure standby group 512 on interface GigabitEthernet0/1, but the configuration is not accepted.

  Which command resolves this problem?

  A. standby version 2
  B. standby 512 preempt
  C. standby redirects
  D. standby 512 priority 100
  A. standby version 2

• Question 239:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.

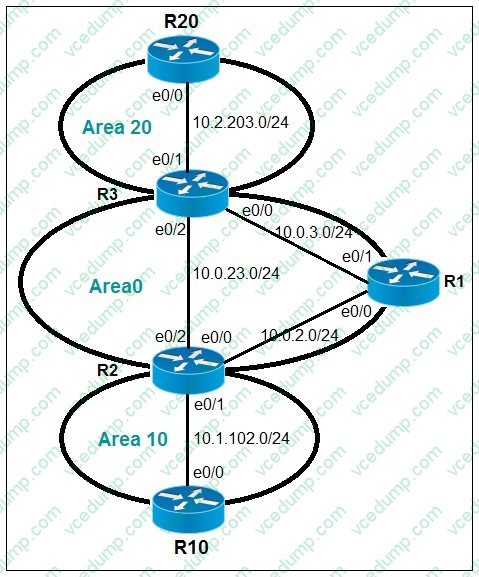

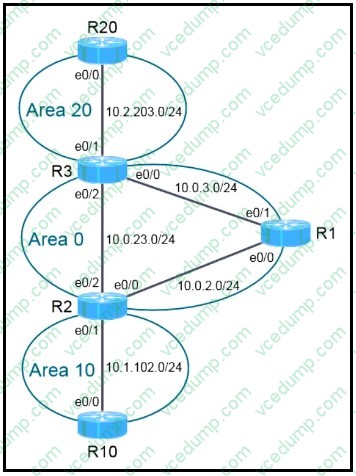

  Topology



  Tasks

  OSPF is partially configured. Complete the OSPF configurations to achieve these goals:

  1. Configure R3 and R20 so they do not participate in a DR/BDR election process in Area 20.

  2. Configure R10 so it is always the DR for Area

  10. Do not change the router ID.

  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

  R3

  Config t

  int e0/1

  ip ospf priority 0

  R20

  Config t

  int e0/0

  ip ospf priority 0

  R10

  Config t

  int e0/0

  ip ospf priority 255

• Question 240:

  Which two operations are valid for RESTCONF? (Choose two.)

  A. HEAD
  B. REMOVE
  C. PULL
  D. PATCH
  E. ADD
  F. PUSH
  A. HEAD
  D. PATCH

  ---

  Explanation

  References:

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/166/b_166_programmability_cg/b_166_programmability_cg_chapter_01011.html
