Cisco 350-401 Online Questions & Answers

• Question 1391:

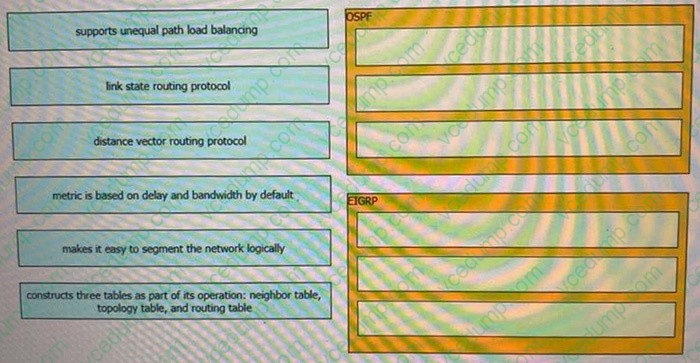

  DRAG DROP

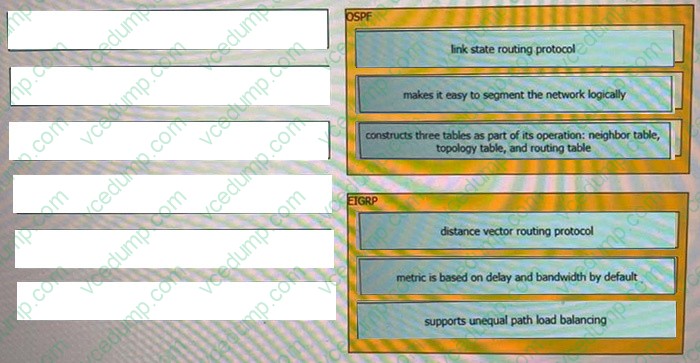

  Drag the drop the description from the left onto the routing protocol they describe on the right.

  Select and Place:





• Question 1392:

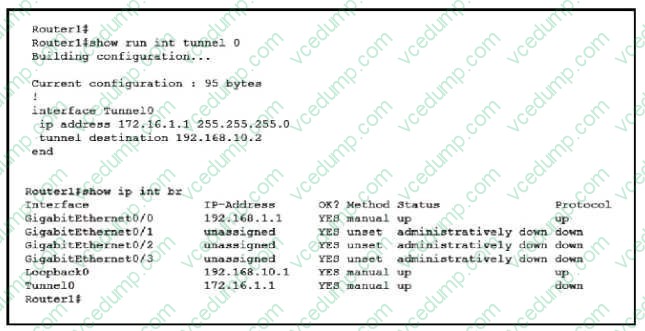

  Refer to the exhibit.



  Which command must be applied to Routed to bring the GRE tunnel to an up/up state?

  A. Router1(config)#interface tunnel0
  B. Router1(config-if)#tunnel source GigabitEthernet0/1
  C. Router1(config-if)#tunnel mode gre multipoint
  D. Router1(config-if)#tunnel source Loopback0
  D. Router1(config-if)#tunnel source Loopback0

• Question 1393:

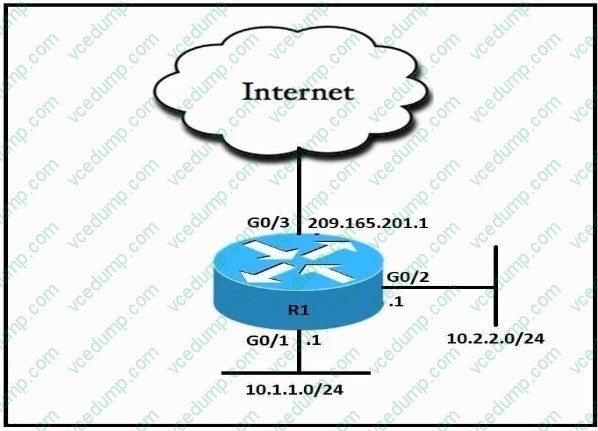

  Refer to the exhibit.

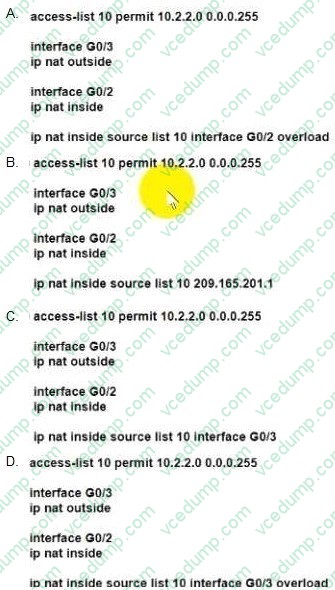

  An engineer must allow all users In the 10.2.2.0/24 subnet to access the Internet. To conserve address space, the public interface address of 209.165.201.1 must be used for all external communication. Which command set accomplishes these requirements?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

  ---

  Explanation

  The command ip nat inside source list 10 interface G0/3 overload configures NAT to overload (PAT) on the address that is assigned to the G0/3 interface.

• Question 1394:

  A client device fails to see the enterprise SSID, but other devices are connected to it.

  What is the cause of this issue?

  A. The hidden SSID was not manually configured on the client.
  B. The broadcast SSID was not manually configured on the client.
  C. The client has incorrect credentials stored for the configured hidden SSID.
  D. The client has incorrect credentials stored for the configured broadcast SSID.
  A. The hidden SSID was not manually configured on the client.

• Question 1395:

  Refer to the exhibit.



  A network engineer must be notified when a user switches to configuration mode. Which script should be applied to receive an SNMP trap and a critical-level log message?

  A. action 1.0 snmp-trap strdata "Configuration change alarm"action 1.0 syslog priority critical msg "Configuration change alarm"
  B. action 1.0 snmp-trap strdata "Configuration change alarm"action 2.0 syslog msg "Configuration change alarm"
  C. action 1.0 snmp-trap strdata "Configuration change alarm"action 1.1 syslog priority critical msg "Configuration change alarm"
  D. action 1.0 snmp-trap strdata "Configuration change critical alarm"
  C. action 1.0 snmp-trap strdata "Configuration change alarm"action 1.1 syslog priority critical msg "Configuration change alarm"

• Question 1396:

  DRAG DROP

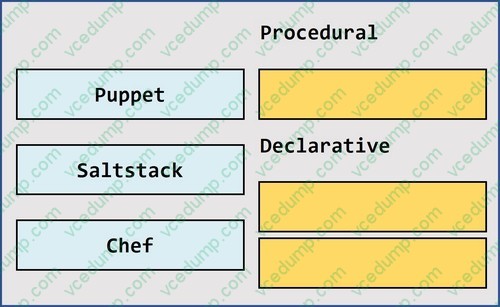

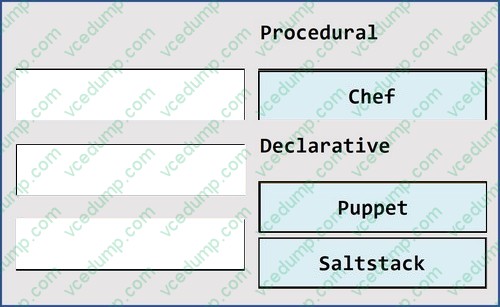

  Drag and drop the configuration management tools from the left onto the configuration styles they use on the right

  Select and Place:





• Question 1397:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary pre-configurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.

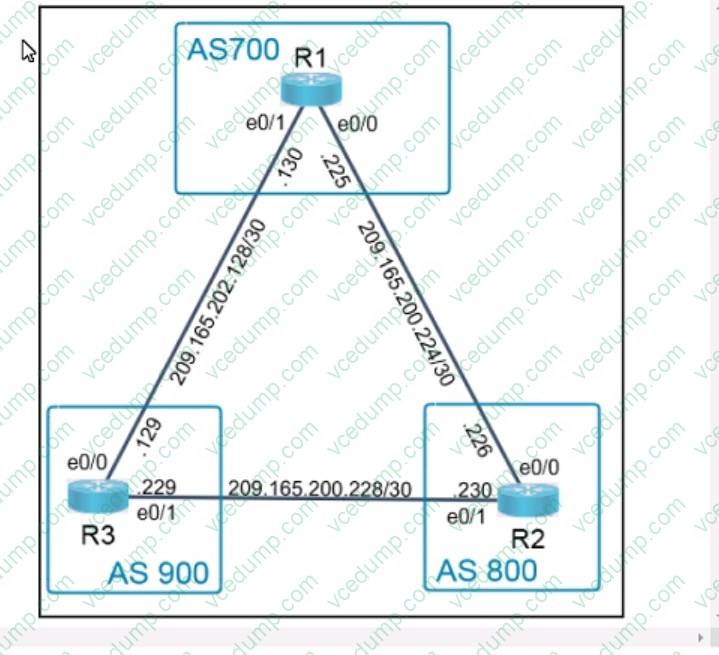

  Topology

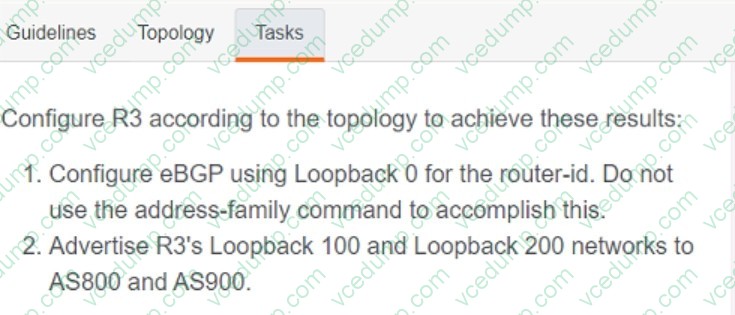

  Tasks



  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

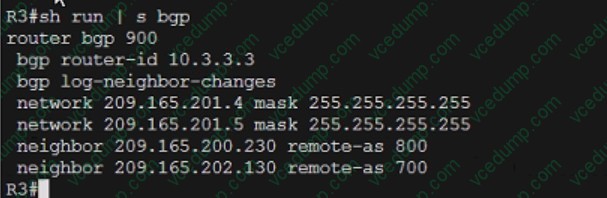

  Solution:

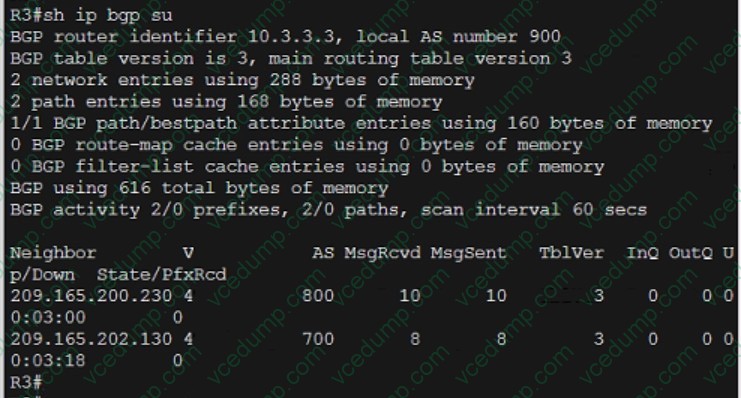

  Verification:



• Question 1398:

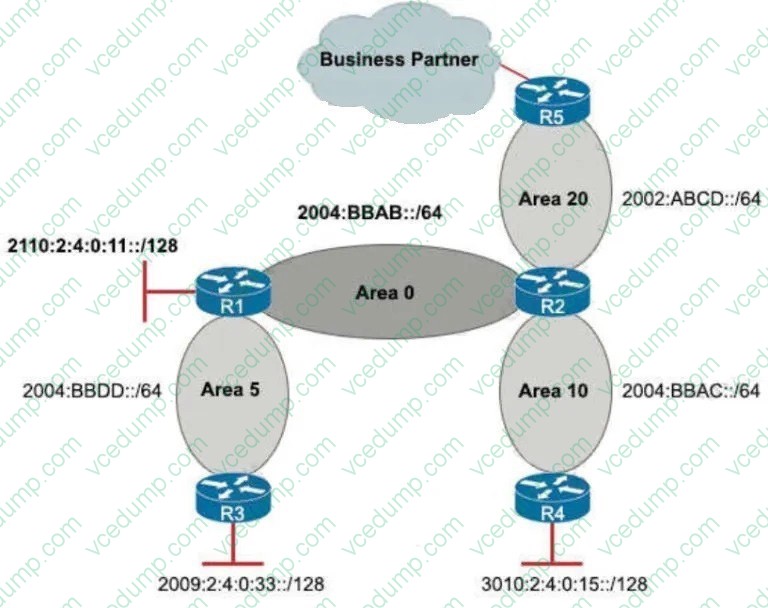

  Refer to the exhibit. A network engineer applied a filter for LSA traffic on OSPFv3 interarea routes on the area 5 ABR to protect advertising the internal routes of area 5 to the business partner network. All other areas should receive the area 5 internal routes. After the respective route filtering configuration is applied on the ABR, area 5 routes are not visible on any of the areas. How must the filter list be applied on the ABR to resolve this issue?



  R2#sh ipv6 route ospf

  O 2002:ABCD::/64 [110/1] via FastEthernet0/1, directly connected O 2004:BBAB::/64 [110/1] via FastEthernet0/0, directly connected O 2004:BBAC::/64 [110/1] via FastEthernet1/0, directly connected O 3010:2:4:0:15::/128 [110/1] via FE80::C804:1DFF:FB20:8, FastEthernet0/0

  A. in the "out" direction for area 20 on router R2
  B. in the "in" direction for area 5 on router R1
  C. in the "out" direction for area 5 on router R1
  D. in the "in" direction for area 20 on router R2
  A. in the "out" direction for area 20 on router R2

• Question 1399:

  A network administrator is configuring a configuration management tool for some network devices that does not support agent. Select what option will you pick from the below options to successfully configure configuration management tool for that device.

  A. Agent based Configuration
  B. Agent Less Configuration
  C. Proxy-agent Configuration
  D. None of the above
  B. Agent Less Configuration

• Question 1400:

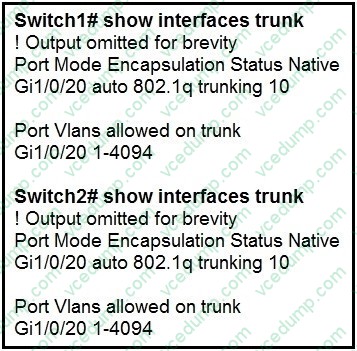

  Refer to the exhibit. The trunk does not work over the back-to-back link between Switch1 interface Giq1/0/20 and Switch2 interface Gig1/0/20. Which configuration fixes the problem?



  A. Switch 1(config)#interface gig1/0/20Switch 1(config-if)#switchport mode dynamic auto
  B. Switch(config)#interface gig1/0/20Switch(config-if)#switchport mode dynamic desirable
  C. Switch 1(config)#interface gig1/0/20Switch1(config-if)#switchport trunk native vlan 1Switch2(config)#interface gig1/0/20Switch2(config-if)#switchport trunk native vlan 1
  D. Switch(config)#interface gig1/0/20Switch2(config-if)#switchport mode dynamic auto
  B. Switch(config)#interface gig1/0/20Switch(config-if)#switchport mode dynamic desirable
