Cisco 350-401 Online Practice Questions and Exam Preparation

Cisco 350-401 Online Questions & Answers

• Question 1381:

  Which network design principle should be followed to improve Layer 2 stability in an enterprise campus design?

  A. Extend all user VLANs throughout the access layer
  B. Extend only required user VLANs throughout the access layer
  C. Extend all user VLANs throughout the core layer
  D. Extend only required user VLANs throughout the aggregation layer
  B. Extend only required user VLANs throughout the access layer

• Question 1382:

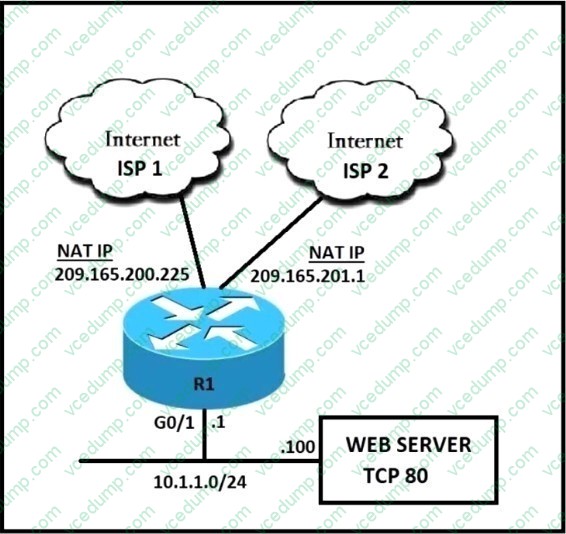

  Refer to the exhibit.



  An engineer must configure static NAT on R1 lo allow users HTTP access to the web server on TCP port 80. The web server must be reachable through ISP 1 and ISP 2.

  Which command set should be applied to R1 to fulfill these requirements?

  A. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 extendable ip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80 extendable
  B. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 ip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80
  C. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 ip nat inside source static tcp 10.1.1.100 8080 209.165.201.1 8080
  D. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 no-alias ip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80 no-alias
  A. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 extendable ip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80 extendable

  ---

  Explanation

  the "extendable" keyword should be added if the same Inside Local is mapped to different Inside Global Addresses (the IP address of an inside host as it appears to the outside network). An example of this case is when you have two connections to the Internet on two ISPs for redundancy. So you will need to map two Inside Global IP addresses into one inside local IP address.

• Question 1383:

  What function does VXLAN perform in a Cisco SD-Access deployment?

  A. policy plane forwarding
  B. control plane forwarding
  C. data plane forwarding
  D. systems management and orchestration
  C. data plane forwarding

• Question 1384:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.

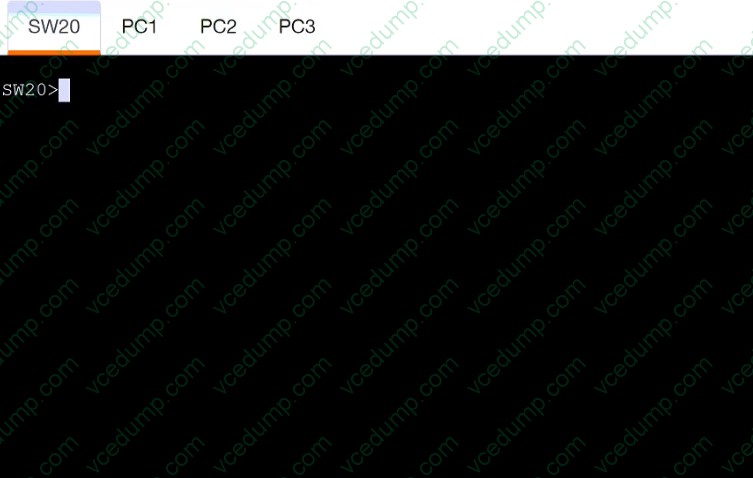

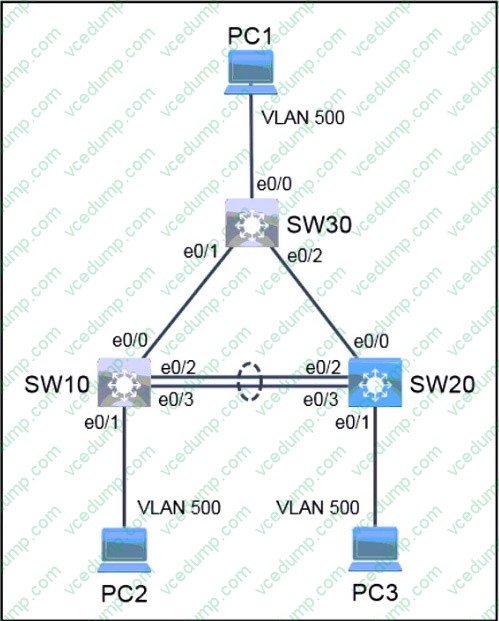

  Topology



  Tasks

  The operations team started configuring network devices for a new site. Complete the configurations to achieve these goals:

  1. Configure Rapid PVST+ on SW20.

  2. The trunk between SW20 and SW30 is not operational. Troubleshoot the issue and ensure PC3 can ping PC1 (10.10.100.10) across the link.

  3. The LACP port channel between SW10 and SW20 is not operational. Troubleshoot the issue and ensure PC3 can ping PC2 (10.10.100.20) across the port channel.

  Note: No access is provided to SW10 or SW30. Resolve these issues by making changes only to SW20. Traffic on all trunks should be restricted to only active VLANs.



  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

  Task 1: Configure Rapid PVST+ on SW20

  SW20(config)# spanning-tree mode rapid-pvst

  Task 2:

  1. Check Interface Configuration:

  Make sure that the trunk configuration is correctly set on interface e0/2 on SW20.

  SW20(config)# interface e0/2

  SW20(config-if)# switchport mode trunk SW20(config-if)# switchport trunk allowed vlan 500

  2. Ensure the Interface is

  Up:

  Check that the interface e0/2 is up:

  SW20# show interface e0/2

  3. Check and Clear Trunk Issues:

  Verify that VLAN 500 is allowed on the trunk and that there are no mismatches:

  SW20# show interfaces trunk

  SW20# show running-config interface e0/2

  4. If VLAN 500 is not listed, manually add it:

  SW20(config)# interface e0/2

  SW20(config-if)# switchport trunk allowed vlan add 500

  Task 3:

  Check LACP Configuration:

  Make sure that the interfaces e0/2 and e0/3 are correctly configured for LACP on SW20:

  SW20(config)# interface range e0/2 - 3 SW20(config-if-range)# channel-group 1 mode active

  Verify Port-Channel Configuration:

  Check the port-channel configuration and ensure that it's correctly set up:

  SW20# show etherchannel summary

  Restrict Trunk to Active VLANs: Ensure that only VLAN 500 is allowed on the port-channel trunk:

  SW20(config)# interface port-channel 1 SW20(config-if)# switchport trunk allowed vlan 500

  Verify and Ensure Connectivity: After making the configurations, verify that PC3 can ping

  PC2 (10.10.100.20) and PC1 (10.10.100.10):

  SW20# ping 10.10.100.20

  SW20# ping 10.10.100.10

• Question 1385:

  When using a Cisco Catalyst 9800 Series WLC, which tag/profile can be applied to APs to change the mode to FlexConnect in a specific location?

  A. policy tag
  B. site tag
  C. AP join profile
  D. flex profile
  B. site tag

• Question 1386:

  What is the role of the RP in PIM sparse mode?

  A. The RP responds to the PIM join messes with the source of requested multicast group
  B. The RP maintains default aging timeouts for all multicast streams requested by the receivers.
  C. The RP acts as a control-plane node and does not receive or forward multicast packets.
  D. The RP is the multicast that is the root of the PIM-SM shared multicast distribution tree.
  D. The RP is the multicast that is the root of the PIM-SM shared multicast distribution tree.

  ---

  Explanation

  Multicast Distribution Shared Tree - Unlike source trees that have their root at the source, shared trees use a single common root placed at some chosen point in the network. This shared root is called a rendezvous point (RP).

  Source:

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst9300/software/release/16-5/configuration_guide/ip_mcast_rtng/b_165_ip_mcast_rtng_9300_cg/b_165_ip_mcast_rtng_9300_9500_cg_chapter_0100.html

  https://netcraftsmen.com/pim-sparse-mode/

• Question 1387:

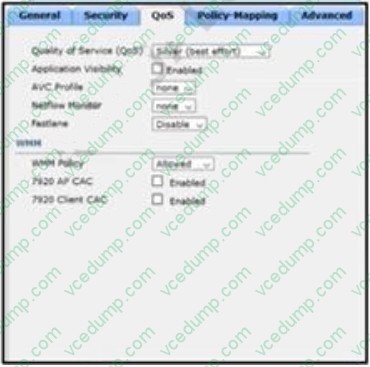

  Refer to the exhibit.



  An engineer is troubleshooting an application running on Apple phones. The application Is receiving incorrect QoS markings. The systems administrator confirmed that ail configuration profiles are correct on the Apple devices.

  Which change on the WLC optimizes QoS for these devices?

  A. Enable Fastlane
  B. Set WMM to required
  C. Change the QoS level to Platinum
  D. Configure AVC Profiles
  C. Change the QoS level to Platinum

• Question 1388:

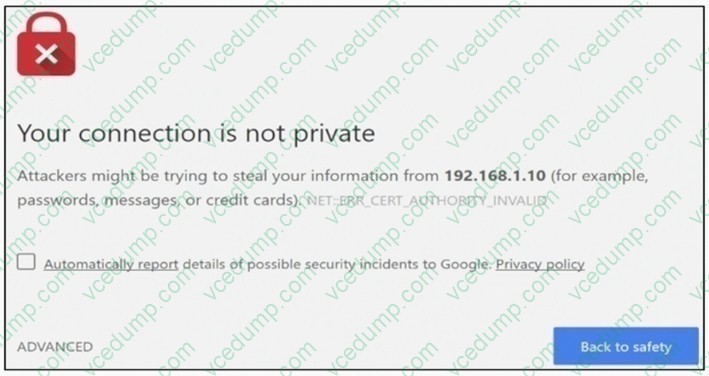

  Refer to the exhibit.



  An engineer is designing a guest portal on Cisco ISE using the default configuration. During the testing phase, the engineer receives a warning when displaying the guest portal.

  Which issue is occurring?

  A. The server that is providing the portal has an expired certificate
  B. The server that is providing the portal has a self-signed certificate
  C. The connection is using an unsupported protocol
  D. The connection is using an unsupported browser
  B. The server that is providing the portal has a self-signed certificate

• Question 1389:

  How do agent-based versus agentless configuration management tools compare?

  A. Agent-based tools do not require a high-level language interpreter such as Python or Ruby on slave nodes
  B. Agentless tools require no messaging systems bet-veen master and slaves.
  C. Agent-based tools do not require instaltation of additional software packages on the slave nodes
  D. Agentless tools use proxy nodes to interface with slave nodes
  A. Agent-based tools do not require a high-level language interpreter such as Python or Ruby on slave nodes

• Question 1390:

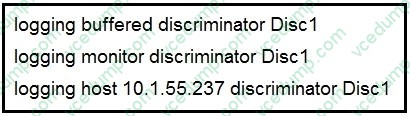

  Refer to the exhibit.



  A network engineer is enabling logging to a local buffer, to the terminal and to a syslog server for all debugging level logs filtered by facility code 7.

  Which command is needed to complete this configuration snippet?

  A. logging buffered debugging
  B. logging discriminator Disc1 severity includes 7
  C. logging buffered discriminator Dlsd debugging
  D. logging discriminator Disc1 severity includes 7 facility includes fac7
  D. logging discriminator Disc1 severity includes 7 facility includes fac7

  ---

  Explanation

  The "logging discriminator Disc1 severity includes 7 facility includes fac7" command enables the logging discriminator named Disc1 to filter messages with a severity level of 7 (debugging level) and facility code 7.
